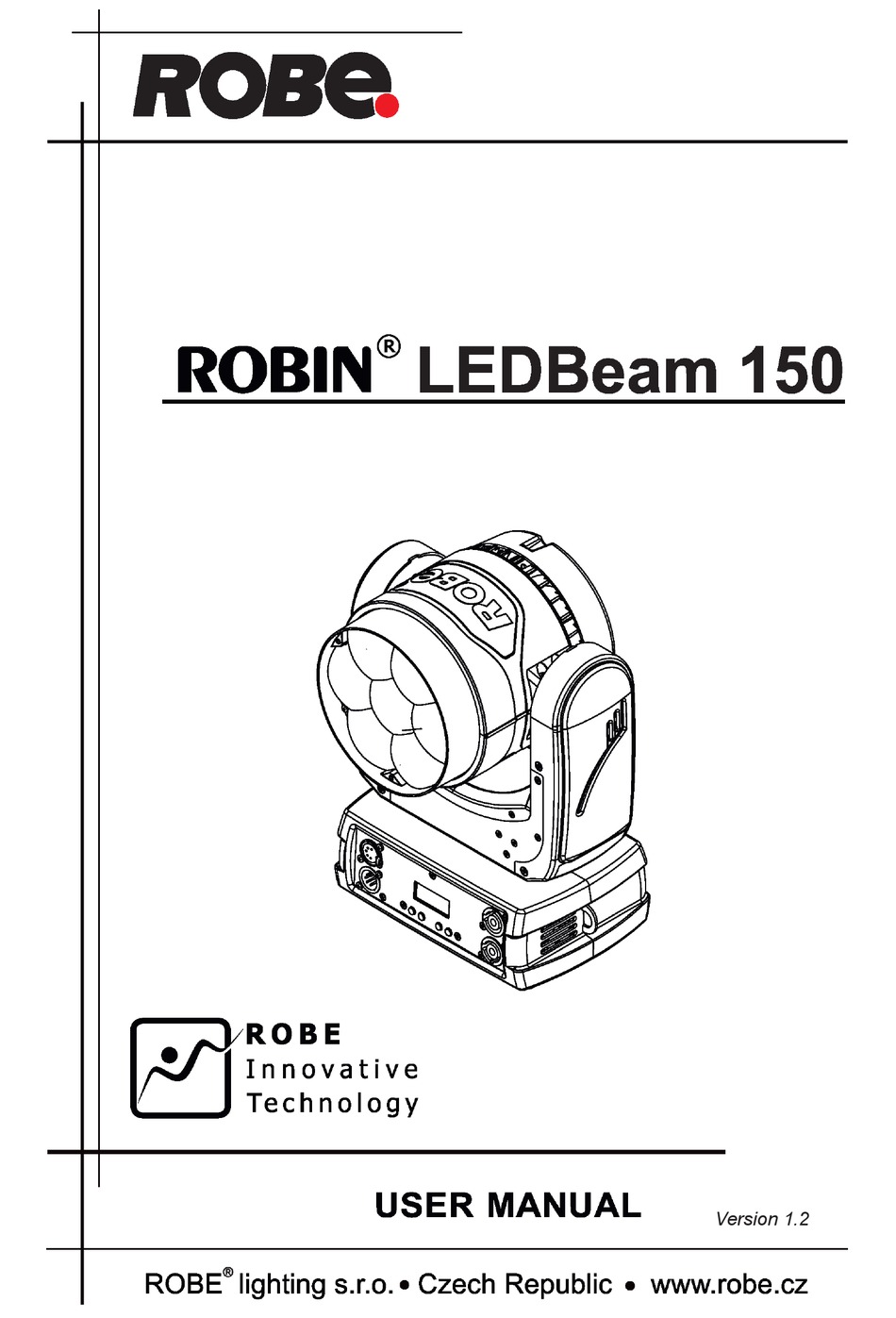

  • Page 1 Version 1.0 Version 1.2...

  • Page 2: Table Of Contents

    ROBIN LEDBeam 150 Table of contents 1. Safety instructions ......................3 2. Fixture exterior view ...................... 5 3. Installation........................6 3.1 Connection to the mains .................... 6 3.2 Rigging the fixture ...................... 7 3.3 Eggcrate installation....................8 3.4 DMX-512 connection ....................9 3.5.

  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The ROBIN LEDBeam 150 was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 This fixture was designed for indoor use only, do not expose this unit to rain or use near water. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat, moisture or dust. Do not block the lens array with any object when the fixture is under operation. The cooling openings in head and base of the fixture should never be covered with cloth or other materials, and never must be blocked.

  • Page 5: Fixture Exterior View

    2. Fixture exterior view 1 - Moving head 2 - Attachment point for safety cable 3 - Base 1 - Lens array 2 - Yoke 3 - Mains IN 4 - Attachment point for a safety wire 5 - Mains OUT 6 - Control panel 7 - DMX IN 8 - DMX OUT...

  • Page 6: Installation

    The device falls under class one and must be earthed (grounded)! Design of the ROBIN LEDBeam 150 allows to connect several fixtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Technical specifications “...

  • Page 7: Rigging The Fixture

    3.2 Rigging the fixture The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

  • Page 8: Eggcrate Installation

    Rigging via omega bracket: 1-Omega bracket 2-Clamp 3-Truss 4-Attachment point 5-Safety chain When installing fixtures side-by-side, avoid illuminating one fixture with another! 3.3 Eggcrate installation Disconnect the fixture from mains before installing the eggcrate . Screw the eggcrate (1) on the lens array module via the three screws (2).

  • Page 9: Dmx-512 Connection

    3.4 DMX-512 connection The fixture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. DMX output DMX input XLR socket:...

  • Page 10: Wireless Dmx Operation

    3.5. Wireless DMX operation The external Robe Wireless CRMX-LB150 module allows receiving wireless DMX. This device is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. Robe Wireless CRMX-LB100...

  • Page 11: Control Menu Map

    4. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 DMXA Set DMXA 001-255 DMX Pres Mode 1 Mode 2 Info POn Time Total Reset DMX In 0-255 Dimm F 0-255 Hea Temp Current...
  • Page 12 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Sta Alone Music T On, Off Auto Run Test Prog 1 Prog 2 Prog 3 Pr Play Test Prg Prog 1 Prog 2 Prog 3 Pr Edit Prog 1 Step 1 Prog 2...

  • Page 13: Control Menu

    Set DMXA- Use this menu item to set the DMX start address of the fixture, which is defined as the first channel from which the ROBIN LEDBeam 150 will respond to the controller. If you set, for example, the address 23, the ROBIN LEDBeam 150 will use channels 23 - 44 for control (if Mode 1 is selected).

  • Page 14: Personality (Pers)

    5.3 Personality (Pers) DMX Pres - DMX preset. Use the menu to select desired channel mode. Mode 1 - 22 control channels Mode 2 - 16 control channels Pan Rev - Pan reverse. The item allows to invert pan movement. Tilt Rev - Tilt reverse.

  • Page 15: Manual Control (Manual)

    Pr Edit - Editing program. Select this menu to edit or create the program. The ROBIN LEDBeam 150 has one built-in program and one user-editable program up to 40 steps. Each program step has a step time - during which effects last in the current step and a fade time- during which effects move to new positions.

  • Page 16: Reset

    5. Press [ESCAPE] button, select next prog. step, press [ENTER] button and repeat steps 3 - 5). 5.7 Reset This option enables the ROBIN LEDBeam 150 to index all effects and return to their standard positions. 5.8 Special functions (Special)
  • Page 17 - with the DMX input of the fixture if you using the flash cable RS232/DMX - with the USB input of the Robe Universal Interface if you using the USB cable. Connect DMX output of the Robe Universal Interface with the fixture via a standard DMX cabel.

  • Page 18: Rdm

    DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for ROBIN LEDBeam 150 is the following. Parameter ID Discovery command SET command...

  • Page 19: Technical Specifications

    8. Technical Specifications Electrical Power supply:......electronic auto-ranging Input voltage range:....supply 100-240V, 50-60Hz Fuse:........T 3.15A Max. power consumption ..220W (I=0.98A, power factor=0.97 at 230V) Mains input: CE - max. 16A ETL - max. 10A Mains output: CE - max. 15A ETL - max.
  • Page 20 Full DMX fidelity and frame integrity Auto sensing of DMX frame rate and frame size <5ms DMX latency Operational frequency range of 2402-2480 MHz Producer: LumenRadio Connection DMX data in/out: Locking 5-pin XLR AC power input: Chassis connector Neutrik PowerCon, A-type, NAC3MPA AC power output: Chassis connector Neutrik PowerCon, B-type, NAC3MPB Rigging Mounting points: pair of 1/4-turn locks...

  • Page 21: Maintenance And Cleaning

    1305 1727) Daisy Chain PowerCon In/Out, EU, 2m (P/N 1305 1728 ) Daisy Chain PowerCon In/Out, US, 2m (P/N 10980346 ) EggCrate for Robin LEDBeam 150 9. Maintenance and cleaning DANGER ! Disconnect from the mains before starting any maintenance work...

  • Page 22: Replacing Fuse

    9.1 Replacing fuse 1.Replace the fuse by a fuse of the same type and rating only. Before replacing the fuse, unplug mains lead! 2. Remove the plastic covers of the base (3) by unscrewing 5 fastening screws (1) and (2) on each cover. 3.

  • Page 23: Photometric Diagrams

    10. Photometric diagrams...

  • Page 26: Changelog

    Quiet mode for fan in menu Personality, DMX protocol ver. 1.2 June 6, 2017 Copyright © 2017 Robe Lighting - All rights reserved All Specifications subject to change without notice Made in ROBE Lighting s.r.o., Palackého 416, 757 01 Valašské Meziříčí, Czech Republic...
  • Page 27 DMX protocol Robin LedBeam 150 - DMX protocol Version: 1.2 Mode 1-Standard 16-bit, Mode 2 -Reduced 8-bit Mode/channel Type of Function Value control Pan (8 bit) 0 - 255 Pan movement by 540° (128=default) proportional Pan Fine (16 bit) 0 - 255...
  • Page 28 DMX protocol Mode/channel Type of Function Value control 178-179 Tungsten effect simulation (2500W) On step 180-181 Tungsten effect simulation Off step 182-199 Reserved 200 - 209 Total fixture reset step 210 - 255 Reserved Virtual colour wheel No function (0=default) step Filter 4 (Medium Bastard Amber) step...
  • Page 29 DMX protocol Mode/channel Type of Function Value control Filter 164 (Flame Red) 85-86 step 87-88 Filter 165 (Daylight Blue) step 89-90 Filter 169 (Lilac Tint) step 91-92 Filter 170 (Deep Lavender) step Filter 172 (Lagoon Blue) 93-94 step Filter 194 (Surprise Pink) 95-96 step Filter 180 (Dark Lavender)
  • Page 30 Dimmer intensity - fine (16 bit) 0 - 255 Fine dimming (0=default) proportional *Select RGB or CMY mixing mode on channel "Power/Special functions" . Copyright © 2017 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
  • Page 31 Robin LEDBeam 150/Parfect 150 - colours on Virtual Colour Wheel Green Blue White Colour name (DMX) (DMX) (DMX) (DMX) Filter 4 (Medium Bastard Amber) Filter 25 (Sunset Red) Filter 19 (Fire) Filter 26 (Bright Red) Filter 58 (Lavender) Filter 68 (Sky Blue)
  • Page 32 Green Blue White Colour name (DMX) (DMX) (DMX) (DMX) Filter 194 (Surprise Pink) Filter 180 (Dark Lavender) Filter 181 (Congo Blue) Filter 197 (Alice Blue) Filter 201 (Full C.T. Blue) Filter 202 (Half C.T. Blue) Filter 203 (Quarter C.T. Blue) Filter 204 (Full C.T.
