DMP Electronics Security Command 690 Installation Manual page 6

ZONE 2 SOFTSHUNT
TIME: 40
RELOCK ZONE 2
FAULT: NO YES
ACTIVATE ZONE 3
EXIT: NO YES
ZN 3 REX STRIKE
TIME: 5
NO YES
ALL?:
DELAY: 2
CARD OPTIONS
DMP CUSTOM
Digital Monitoring Products
6
Zone 2 Soft-Shunt Time (793 only)
Enter the number of Soft-Shunt seconds to elapse before the Soft-Shunt timer expires.
Range is from 20 to 250 seconds. Press any top row select key to enter the number
of seconds. Once the door strike relay is activated, the user has 5 seconds to open
the door connected to zone 2. The zone is then shunted for the programmed time
or until the contact restores to normal. Ten seconds after the Soft-Shunt entry/exit
time begins, the keypad beeps if the door is still open. If the door remains open when
the timer expires a zone open/short is sent to the panel for Zone 2. The default is 40
seconds.

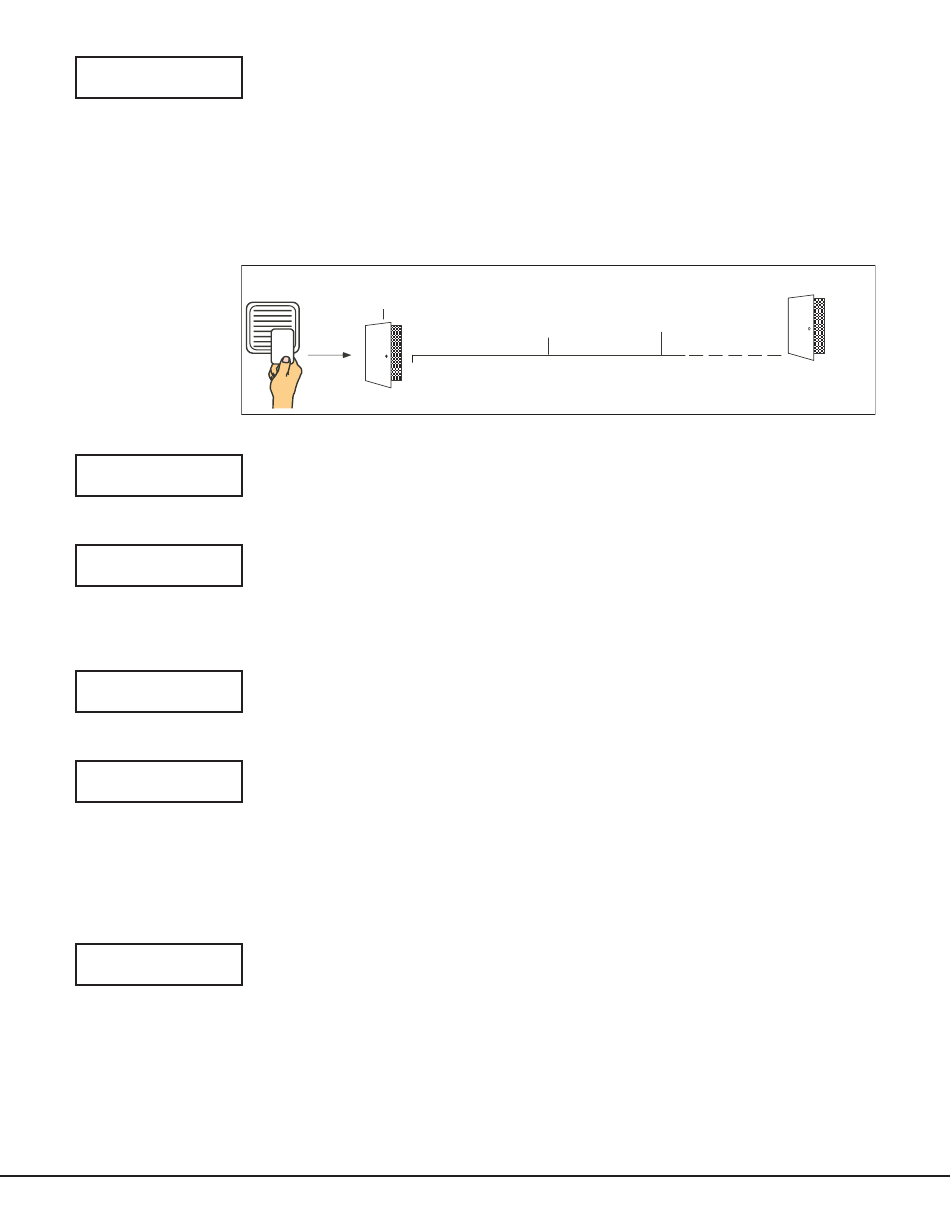

Figure 7 shows how the Soft-Shunt works using the default 40 second timer.
5 Second
Strike
40-Second "Soft-Shunt"
and entry/exit timer.
Figure 7: Door Strike Relay Operation Time Line
Relock on Zone 2 Fault? (793 only)
Selecting NO leaves the relay on when Zone 2 faults to an open or short condition
during door access. Selecting YES turns the relay off when Zone 2 faults open or short
during door access. The default is NO.
Zone 3 Exit (793 only)
Select YES to enable the Request to Exit feature on zone 3. When zone 3 shorts,
the keypad relay activates for 3 seconds. During this time, the user can open the
protected door to start the 40-second Soft-Shunt entry/exit timer. If the door is
not opened within 3 seconds, the relay restores the door to its locked state. When
shorted, this zone activates the keypad relay. No panel programming is required.
Zone 3 REX Strike Time (793 only)
Enter the number of REX seconds to elapse before the door relay turns off. Range
is from 5 to 250 seconds. Press any select key to enter the number of seconds. The
default is 5 seconds.
Arming/Disarming Wait Time (693 and 793 only)
Select the number of seconds the keypad should wait when an area system displays
ALL? NO YES during arming/disarming or a HOME/SLEEP/AWAY system waits during
arming only. If NO or YES, or HOME, SLEEP, or AWAY is not manually selected before
the delay expires, the keypad automatically selects the YES or the AWAY key. Select
zero (0) to disable this feature. The delay can be one to nine (1-9) seconds. The
delay also occurs when any credential is presented for arming the Home/Sleep/Away
system. After a card is presented, HOME SLEEP AWAY displays. The keypad waits the
programmed number of seconds before automatically selecting AWAY.
Card Options (693 and 793 only)
Select DMP to indicate the reader sends a 26-bit DMP data string. To save the DMP
option, press the left top row Select key under DMP. Default is DMP.
Select CUSTOM if using a non-DMP credential. To select CUSTOM press the right top row
Select key.
At 30 seconds,
40
the keypad beeps
Seconds
if door is still open.
End of
timer.
690/690F/790/790F/693/793 Installation Guide
A zone fault is indicated
if door is still open.
