Description
The XR5 fire system has been designed with your safety in
mind using the latest in computer technology. The system
combines ease of use with a simple to understand LCD
(Liquid Crystal Display) keypad to offer the full range of
features demanded by today's fire professionals.

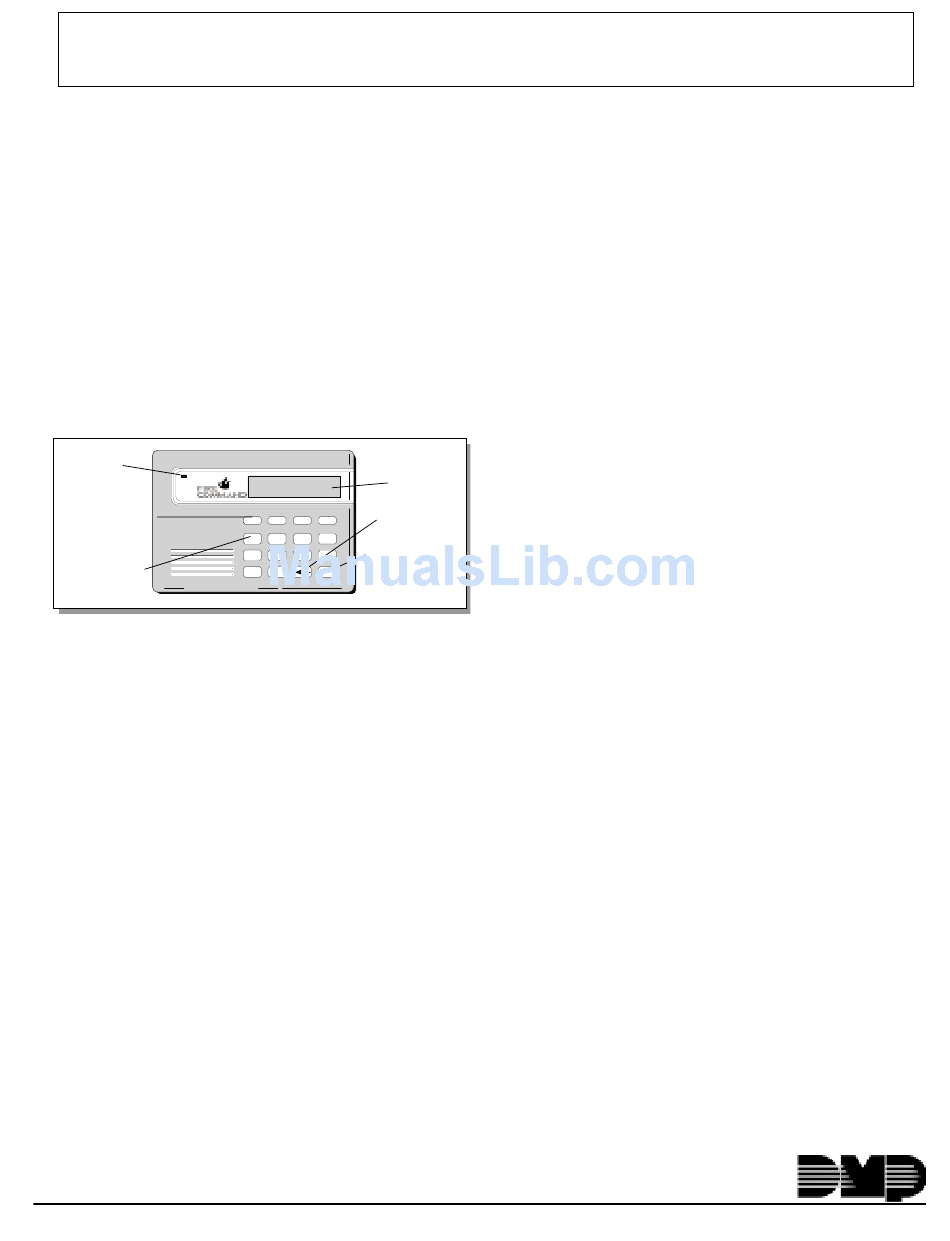

About the keypad
This device has been placed at locations throughout the
premises to allow you to properly operate the system and
review previous event history. The keypad provides a
passcode protected User Menu where you can access the
functions needed to operate the system. See Keypad User
Menu below. In addition to the User Menu, the items below
list operational features of your keypad.
Power
LED
POWER
SELECT keys
Data Entry
keys
LCD Keypad
The SELECT keys
These keys allow you to choose an option by pressing the
SELECT key under the choices shown in the display.
Lighted display
The keypad uses a backlit display and plain English text to
show events occurring on your system.
Data Entry keys
These keys allow you to enter the code number when using
the system.
The ARROW key
The ARROW key allows you to back up through the list of
functions in the User Menu, or make corrections when
entering information.
The COMMAND key
The COMMAND key allows you to advance through the
options on the keypad display, and enter information into the
system.
Power LED
This remains on steady as long as your fire system is
connected to its AC power supply. Should there be an
interruption, the green LED will turn off. The system's backup
battery maintains normal operation for a time allowing you to
contact our service department. Should the battery power
become low, the Power LED flashes.
LCD Keypad User's Guide
for
XR5FC and XR5SL Fire Panels
Lighted
ABC PRINTING
Display
SYSTEM NORMAL
ARROW key
1 2 3 4
A A B B C C D D E E F F G G H H I I J J K K L L
COMMAND
5 6 7 8
M M N N O O P P Q Q R R S S T T U U V V W W X X
key
9 0
COMMAND
Y Y Z Z
Special Fire Command Messages
SYSTEM NORMAL
This display indicates that fire protection devices, phone
lines to the panel, and the panel itself, are in good condition.
ALARM
A fire, supervisory, or auxiliary zone has been tripped. Your
system may sound the fire bells, strobes, and any other
response programmed into the system.
ALARM SILENCED
A user has silenced the fire bells by entering the code or by
using the Alarm Silence function in the User Menu. Even
though the bells are silenced, the system is still in a state of
alarm and, depending on the keypad model, the keypad keys
will glow red or a red LED on your keypad will flash until a
System Reset is performed (see page 2).
BYPASS
A zone has been disabled by the system due to repeated
trips. If the zone remains normal for one hour it can be
restored into the system.
ENTER CODE
The system requires you to enter the user code. As you enter
the code, the display shows an asterisk (*) in place of each
digit pressed.
TRY AGAIN
The user code you've entered is not recognized by the
system. Check the code and try again.
INVALID CODE
You receive this message if you enter an incorrect user code
a second time, after receiving the Try Again message.
PH LINE 1 TRBL
There is a problem with the phone line connected to your
system. Call for service as soon as possible.
TROUBLE
There is a problem with a protection device or system component.
This display is accompanied by a description of the problem.
SERVICE REQUIRED or SYSTEM TROUBLE
There is a problem on the system. Call for service.
Special Fire Command Tones
Your keypad also contains a small speaker that alerts you to
events as they occur on your system. Below are brief
descriptions of the different tones you'll hear from the keypad:
Key press tone: A short beep when you press a key on the keypad.
Trouble tone: A steady tone indicating a trouble condition on
your system. Press a top row key and then enter the user
code to silence the trouble tone.
Fire Alarm Tone: Your LC D keypad, your keypad sounds a
siren-like tone in one second intervals. This is in addition to
other bells or sirens you may have on your system.
