692 Security Command™ Keypad

Description

The DMP 692 Security Command LED keypad for the XRSuper6, XR20, and XR40 Command Processor™ Panels provides
three 2-button Panic keys, three system status LEDs, three armed status LEDs, and ten zone LEDs. The 692 Keypad
also contains a backlit keyboard with easy-to-read lettering, COMMAND key arming, and an internal alert buzzer.
The 692 Keypad is designed for use with Home/Sleep/Away and All/Perimeter systems. The 692 Keypad does not
support all of the functions of an Area system and does not provide visual annunciation above zone 10.

Removing the Base

The 692 is made up of two parts: the front which contains the circuit board and other components, and the base. To
remove the base, insert a ß at screwdriver into one of the openings on the bottom and gently twist it while pulling
the halves apart as shown in Figure 1. Repeat with the other opening.

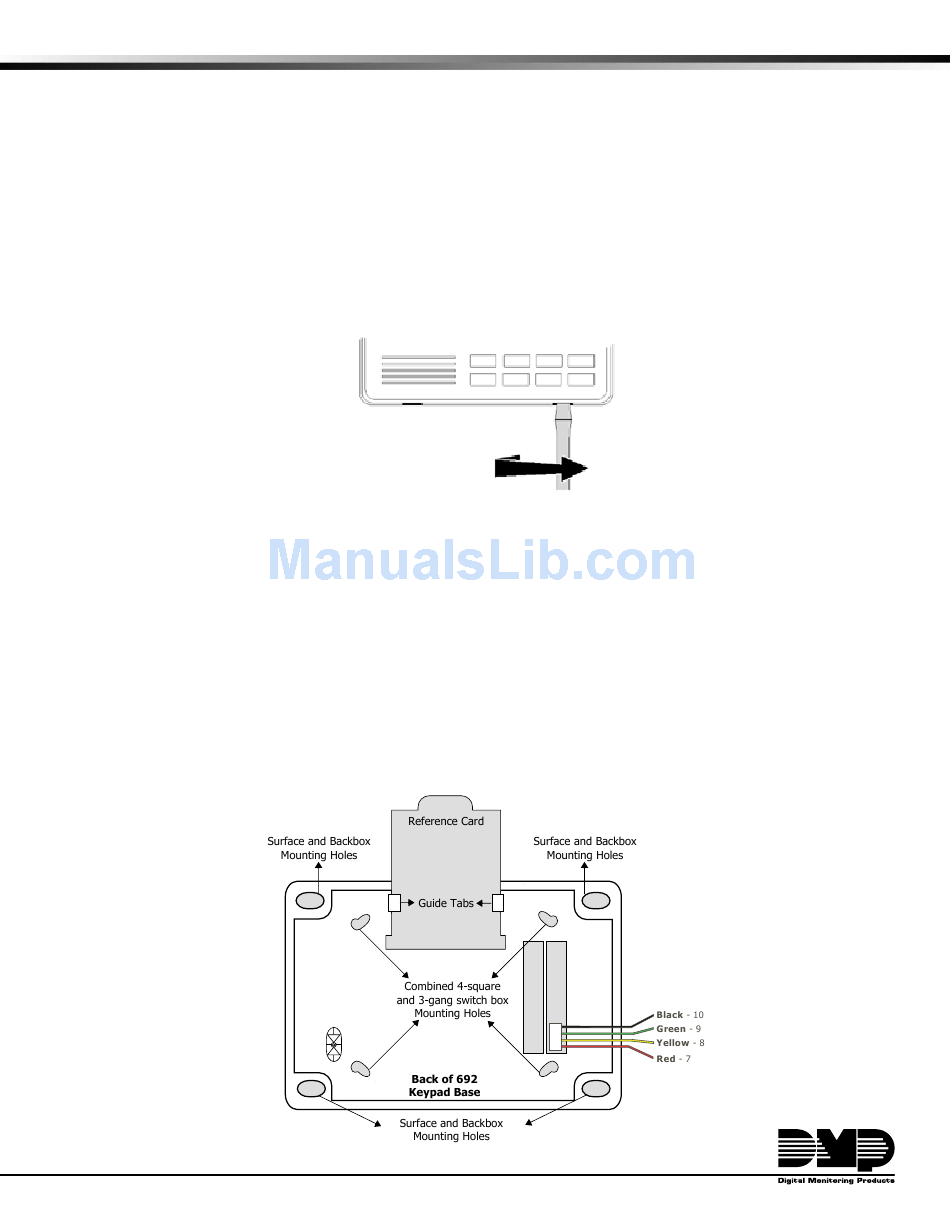

Figure 1: Remove Keypad Base

Inserting the Reference Card

A reference card is supplied with the 692 Keypad. The reference card is provided to assist the users when operating
their security systems. Write the zone descriptions on the front of the card. Slide the card in the back of the base
before installing the keypad. Refer to Figure 2 for reference card installation.

Mounting the 692 Keypad

The 692 Keypad is designed to easily install on any 4-square box, 3-gang switch box, 695 and 696 backbox, or on any
ß at surface. Figure 2 shows the mounting hole locations on the keypad base.

Wiring the 692 Keypad

The 692 Keypad is supplied with a single 4-wire harness for connection to the panel keypad data bus wiring. Connect
the 4-wire harness to the back of the PCB as shown. Then connect the wires to the panel terminals 7, 8, 9, and
10. In Figure 2, the numbers to the left of each wire color and description represent the terminals where the wires
connect.
Figure 2: 692 Keypad Back
