DMP Electronics 7060 Quick Manual

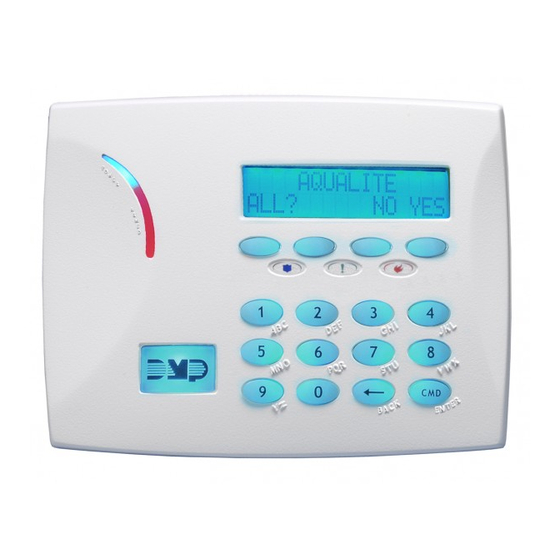

DMP 7060
CLOSE UP-DMP 1-6 KEYS
DMP COMMAND (CMD) KEY
MEDICAL POLICE FIRE
DMP SCREEN & SELECT/PANIC KEYS
DMP DIGIT KEYS CLOSE UP
DMP
KEYPAD QUICKGUIDE
– All protected windows and doors must be closed. Ready light should

Arm System

be green. Screen should say "SYSTEM READY"
 ALL— Press and hold "ALL" Button (# 1) or Press Code then "1" key.
Arms all devices including motion detectors.
 Perimeter— Press and Hold "PERIM" Button (#6) or Press Code then "6" key.
Arms all devices and automatically bypass all motion detectors.
 Instant — Press and hold "PERIM" (#6) Key. After few seconds "INST" appears
on top right hand side of screen. Press SELECT button below "INST" button.
Arms entry doors without delay and bypass all motion detectors.

Turn System Off/Silence an Alarm:

"CMD" key, Press button below "DISARM", Enter CODE, Press "CMD" key.
Press and Hold "RESET" (#2) Button.
Reset System:
When screen reads "NOT READY", press top right button.
Display Faulted Zones:
Screen MUST SAY "NOT READY" to display faulted zones.
Press and hold "CHIME" (#5) button. Then press "CMD" key until
Door Chime On/Off:
"MENU" appears. Press selection key under "MENU" (YES). Press "CMD" until CHIME
appears on the screen. Press any top selection button to toggle off/on.

Bypass a Zone:

If zone is already faulted (ex: Door/Window is open), arm system in
desired mode (ALL, PERIMETER). "OKAY BYPASS STOP" Appears on screen. Press
either button below "BYPASS" to bypass faulted zone.
IF ZONE IS NOT FAULTED, press "CMD" until "MENU" appears. Press selection key
(YES) underneath "MENU". Press "CMD" until "BYPASS" appears. Press any top
selection button. Enter Zone number (1, 2, 3 etc..) and then button under "BYPASS"
MEDICAL: Simultaneously press top left 2 buttons above green "!".

Panic Buttons:

POLICE: Simultaneously press top middle 2 buttons above blue shield.
FIRE: Simultaneously press top right 2 buttons above red flame.
Change or Add Additional Codes:
Delete A User Code: EMAIL codechange@iAlarmNJ.com with changes.
Press "CMD" key until "MENU" appears. Press select button

Sending a Test Signal:

under "YES". Press "CMD" key again until "SYSTEM TEST" appears. Press any top
button.
856-854-9222 7215 Maple Ave. Pennsauken, NJ 08109 www.iAlarmNJ.com
Enter user CODE then "CMD" key OR Press
EMAIL codechange@iAlarmNJ.com with changes.
