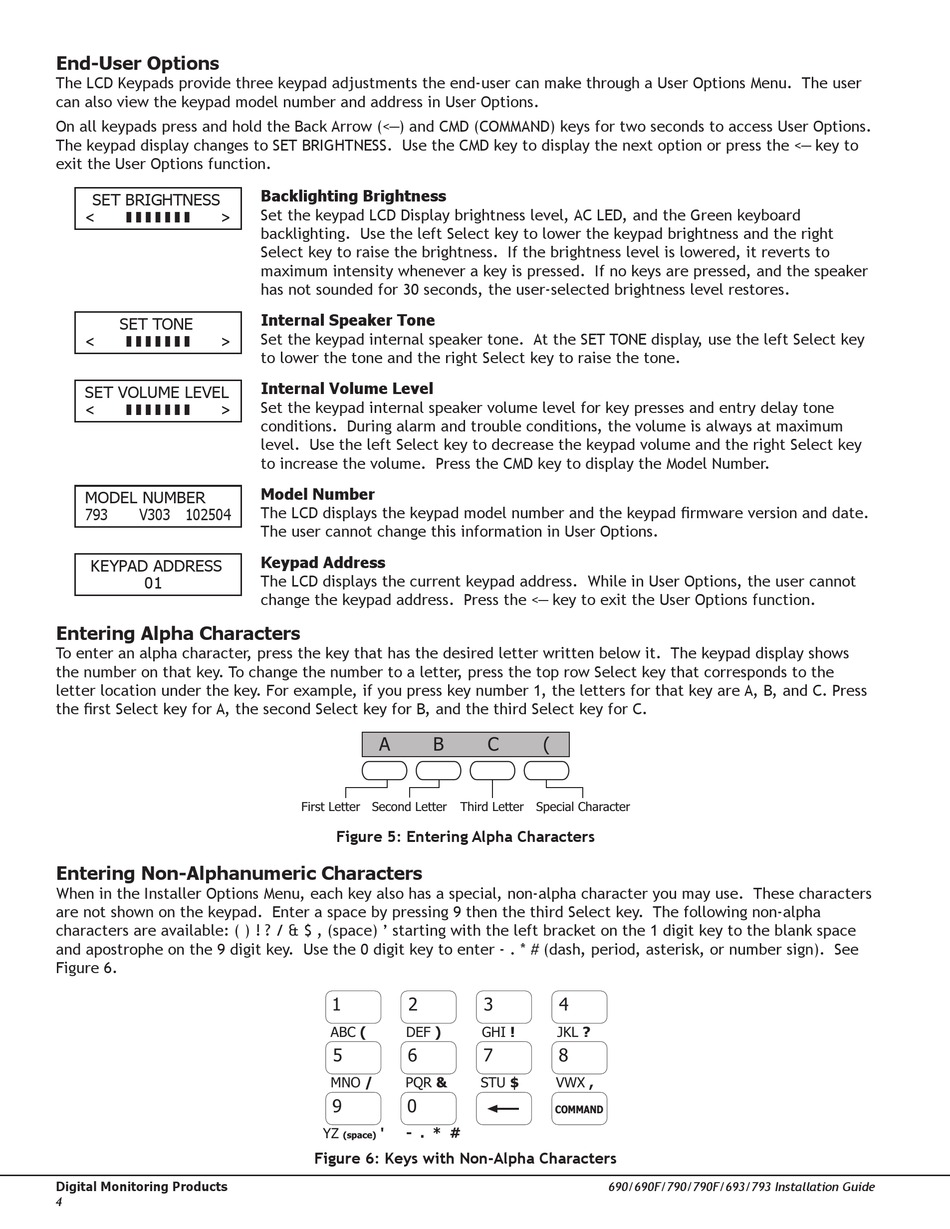

End-User Options

The LCD Keypads provide three keypad adjustments the end-user can make through a User Options Menu. The user
can also view the keypad model number and address in User Options.
On all keypads press and hold the Back Arrow (<—) and CMD (COMMAND) keys for two seconds to access User Options.
The keypad display changes to SET BRIGHTNESS. Use the CMD key to display the next option or press the <— key to
exit the User Options function.
SET BRIGHTNESS
< >
      
SET TONE
< >
      
SET VOLUME LEVEL
< >
      
MODEL NUMBER
793 V303 102504
KEYPAD ADDRESS
01

Entering Alpha Characters

To enter an alpha character, press the key that has the desired letter written below it. The keypad display shows
the number on that key. To change the number to a letter, press the top row Select key that corresponds to the
letter location under the key. For example, if you press key number 1, the letters for that key are A, B, and C. Press
the first Select key for A, the second Select key for B, and the third Select key for C.

Entering Non-Alphanumeric Characters

When in the Installer Options Menu, each key also has a special, non-alpha character you may use. These characters
are not shown on the keypad. Enter a space by pressing 9 then the third Select key. The following non-alpha
characters are available: ( ) ! ? / & $ ‚ (space) ' starting with the left bracket on the 1 digit key to the blank space
and apostrophe on the 9 digit key. Use the 0 digit key to enter - . * # (dash, period, asterisk, or number sign). See
Figure 6.
Digital Monitoring Products
4
Backlighting Brightness
Set the keypad LCD Display brightness level, AC LED, and the Green keyboard
backlighting. Use the left Select key to lower the keypad brightness and the right
Select key to raise the brightness. If the brightness level is lowered, it reverts to
maximum intensity whenever a key is pressed. If no keys are pressed, and the speaker
has not sounded for 30 seconds, the user-selected brightness level restores.
Internal Speaker Tone
Set the keypad internal speaker tone. At the SET TONE display, use the left Select key
to lower the tone and the right Select key to raise the tone.
Internal Volume Level
Set the keypad internal speaker volume level for key presses and entry delay tone
conditions. During alarm and trouble conditions, the volume is always at maximum
level. Use the left Select key to decrease the keypad volume and the right Select key
to increase the volume. Press the CMD key to display the Model Number.
Model Number
The LCD displays the keypad model number and the keypad firmware version and date.
The user cannot change this information in User Options.
Keypad Address
The LCD displays the current keypad address. While in User Options, the user cannot
change the keypad address. Press the <— key to exit the User Options function.
� �
������������ �������������
Figure 5: Entering Alpha Characters
� �
����� �����
� �
����� �����
� �
����������
��� ��
�������
Figure 6: Keys with Non-Alpha Characters
� �
������������ ������������������
� �
����� �����
� �
����� �����
�������
