Description

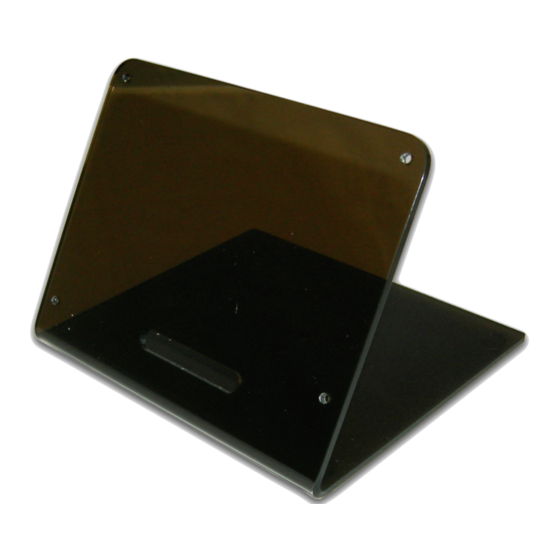

The 699 Keypad Deskstand is a mounting stand configured for all DMP LCD keypad models. The 699 is constructed
of smoked plexiglass or metal and provides a sturdy keypad mounting option for any location. Designed to provide
access to all DMP keypad wiring headers allows quick and easy keypad wire connections.
What is Included
• 699 Keypad Deskstand
• Wiring Block
• Wire Harness 4 ft.
• Four round head self-tapping Phillips mounting screws
Note: When using the 7760 Clear Touch Keypad a 778 Keypad Backplate is needed to enhance the keypad display.
Mounting Keypads
Standard Keypad Mounting
Use the round head self-tapping Phillips screws to mount the keypad base to the 699 Deskstand. Refer to Figure 1 as
needed.
1. Refer to the keypad installation guide and remove the cover from the keypad base.
2. Align the keypad base to the four keypad mounting holes on the 699 Deskstand.
3. Insert the screws through the keypad base and 699 Deskstand.
4. Use a Phillips head screwdriver to tighten the four screws into place. Do not overtighten.
5. Replace the keypad cover.
Clear Touch
Keypad
mounting hole.
Keypad wiring
699 Keypad Deskstand
Deskstand Front View
Clear Touch Keypad wiring harness opening.
778 Backplate ush mounting holes.
harness
openings
690 and 790 Series
Optional Wire
Harness wire
Keypad mounting holes.
tie strain relief
Use self-tapping Phillips
mounting hole.
head screws.
778 Backplate ush mounting holes.

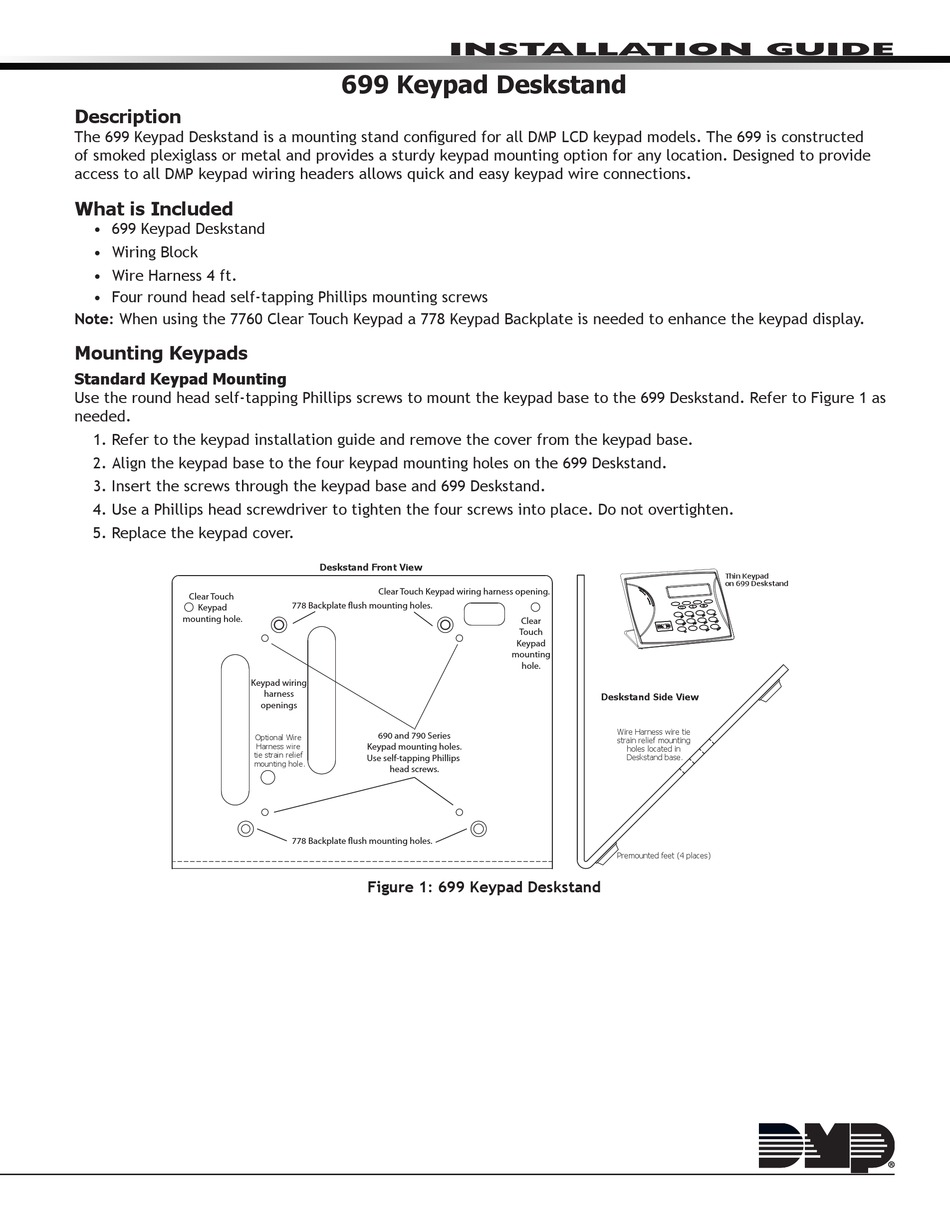

Figure 1: 699 Keypad Deskstand
Inst alla tIon GuIde
Clear
Touch
Keypad
mounting
hole.
Deskstand Side View
Wire Harness wire tie
strain relief mounting
holes located in
Deskstand base.
Premounted feet (4 places)
Thin Keypad
on 699 Deskstand
