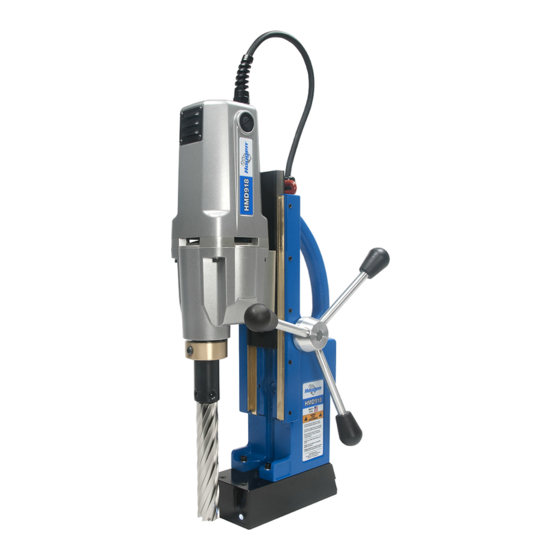

- Page 1 HMD918 SERIES PORTABLE MAGNETIC DRILL Covers Drill Covers Drill Part Numbers: Part Numbers: 0918202 0918302 OM9181117BEF Printed in U.S.A. 1/2019...
- Page 2 PRESSURIZED COOLANT BOTTLE 05630 Coolant Bottle Assembly Item Part # Description 05556 Fitting 1/8 NPT 3/8 Hose 01569 Shut Off Valve 05621 Quick Connector 01567 Coolant Bottle For use With 6" arbor onlY...
- Page 3 HMD918 MAG BASE DRILL 3" D.O.C. Positive Ejection Motor Assembly Arbor Assembly (see page 12) Motor/Slide Assembly (see page 11) 07870 FRONT SUPPORT BRACKET ASSEMBLY 07076 COOLANT INDUCER ASM 40301 WASHER-THRUST 1-3/8 X 2-1/16 X 1/32 07869 ARBOR ASM 40398 RING-RETAINING 1-9/16"...
- Page 4 HMD918 Breakdowns 08517 6" D.O.C. Arbor Assembly Item Part # Description Item Part # Description 08462 Motor / Slide Assy. 40302 Retaining Ring 08249 Control Panel 40301 Thrust Washer 08250 Control Panel-Type I Plug 05646 Quick Connect Fitting 08519 Gib, Brass, Right Hand 40300 O-Ring 08520...
- Page 5 CONTROL PANEL BREAKDOWN & WIRING 08249 Panel Assembly - 230V 08250 Panel Assembly - 230V Type I Item Part # Description 08057 Faceplate 01335 Switch - Motor Off 01334 Switch - Motor On 01226 Guard Switch 04614 Magnet Switch 02548 Stand Off 07299 Power Cord Assembly...
- Page 6 MOTOR SLIDE ASSEMBLY BREAKDOWN 08462 Motor & Slide Assembly Item Part # Description 08466 Motor Complete Assembly 40038 SCR SHC #10-32 x 5/8 LG 10560 Lock Washer Ext. #10 08749 Slide - Dovetail 08528 Rack - Gear 90028 Lock Washer Helical 1/4 10624 SCR SHC 1/4-20 x 3/4 08622...
- Page 7 MOTOR PARTS DIAGRAM 08466 Motor Assembly Item Part # Description Item Part # Description 41048 SCR-SHC #10-32 x 1-1/2 07911 Assembly Gears #2 & #3 50038 Washer - Lock Helical #10 07828 Gear Box Cover 07860 Retaining Ring 08070 Washer - Spring 40274 Bearing 25MM x 47MM x 12MM 08039...
