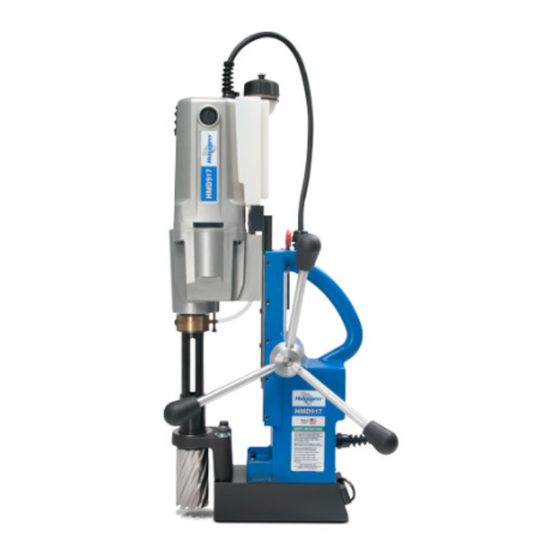

- Page 1 HMD917 SERIES PORTABLE MAGNETIC DRILL Covers Drill Covers Drill Part Numbers: Part Numbers: 0917202 0917302 0917402 0917204 0917304 0917402 OM9170717BEF Printed in U.S.A.
-
Page 2: Welcome To Hougen
Portable Magnetic Drill. Your model is designed to produce superior holes quickly and ® efficiently. Through constant innovation and development, Hougen is committed to provide you with hole producing tools and products to help you be more productive. Before attempting to operate your new Portable Magnetic Drill, please read all instructions first. These include the Operator’s Manual and Warning Label on the unit itself. -
Page 3: Work Area Safety
WARNING Cutters are sharp. Wear To prevent electric Do not stare at Always wear eye The slug is ejected at gloves when installing shock, do not use operating light. protection while using the end of the cut. Do or removing cutter from power tools near wet cutting tools, or in the not aim cutter or arbor... -
Page 4: Important Safety Instructions
Keep hands and clothing away from all moving parts. may result in electrical shock, fire and/or serious personal injury. Do not use Hougen Cutters where ejected slug might cause h) Keep handles and grasping surfaces, clean and Important Safety Instructions - Continued injury (slug ejected at end of cut). -
Page 5: Safety Switch Indicator Light
** SAFETY SWITCH LIGHT WILL COME ON AND REMAIN ON WHILE DRILL IS PLUGGED IN ** The Safety Switch Indicator Light is a Standard Safety Feature on Hougen portable magnetic drills. Its purpose is to inform the user that the lift detector switch is activated. - Page 6 RPM recommendations are based on using your HMD917 drill with Hougen "12,000-Series" H.S.S. Cutters. The RPM’s do not represent optimum speeds for any given cutter diameter and application. For more information refer to Hougen’s Speed & Feed Calculator located on Hougen.com, or call 1-800-426-7818 for Technical Support.
- Page 7 * This method of using coolant can also be used for an attached coolant bottle if the bottle is lost. "12000-Series" 6. For horizontal or drilling overhead holes, use Hougen Cutter Slick-Stik Lubricant. Coolant Reservoir COOLANT BOTTLE ASSEMBLY...
-
Page 8: Motor/Slide Assembly
HMD917 MAG BASE DRILL 230V Motor Assembly (see page 12) Coolant Bottle Assembly (see page 7) Motor/Slide Assembly (see page 11) Control Panel Assembly (see page 10) #4 - Coolant Arbor Assembly 07870 FRONT SUPPORT BRACKET ASSEMBLY 07076 COOLANT INDUCER ASM 40301 WASHER-THRUST 1-3/8 X 2-1/16 X 1/32... - Page 9 HMD917 Breakdowns 08116 Coolant Arbor Assembly Item Part # Description Item Part # Description 07075 Arbor - Coolant 08035 Motor / Slide Assy. 40223 Collar Ejector 07917 Coolant Arbor Assy. Non Swivel 07079 Spring Seat 08116 Coolant Arbor Assy. Swivel 40256 SCR Set 5/16-18 x 3/8 Oval Pt 08249...
- Page 10 CONTROL PANEL BREAKDOWN & WIRING 08249 Panel Assembly 08250 Panel Assembly - Type I Item Part # Description 07011 Faceplate 01335 Switch - Motor Off 01334 Switch - Motor On 01226 Guard Switch 04664 Magnet Switch 02548 Stand Off 07299 Power Cord Assembly 08287 Power Cord Assembly - Type I...
- Page 11 MOTOR SLIDE ASSEMBLY BREAKDOWN 08035 Motor & Slide Assembly Item Part # Description 08036 Motor Complete Assembly 10649 SCR BHC #10-32 x 3/4 08063 Bottle Support 40038 SCR SHC #10-32 x 5/8 LG 10560 Lock Washer Ext. #10 07862 Slide - Dovetail 07934 Rack - Gear 90028...
-
Page 12: Motor Parts Diagram
MOTOR PARTS DIAGRAM 08036 Motor Assembly Item Part # Description Item Part # Description 41048 SCR-SHC #10-32 x 1-1/2 07911 Assembly Gears #2 & #3 50038 Washer - Lock Helical #10 07828 Gear Box Cover 07860 Retaining Ring 08070 Washer - Spring 40274 Bearing 25MM x 47MM x 12MM 08039... -
Page 13: Maintenance
MAINTENANCE In order to minimize wear on moving parts and to insure smoother operation and longer life for your magnetic drill, the following maintenance should be done periodically, based on use. 1. Regularly tighten all fasteners and replace all worn parts. 2. -
Page 14: Installation
ARBOR & FRONT SUPPORT BRACKET REMOVAL AND INSTALLATION Coolant Arbor Removal 1. Loosen arbor support bracket bolts. 2. Remove screw in coolant inducer. Rotate arbor until arbor screw is in line with hole. 3. Loosen set screw holding arbor onto motor output shaft. 4. -
Page 15: Hints For Smoother Operation
HINTS FOR SMOOTHER OPERATION 1. Keep the inside of Hougen Cutter clear of chips. Chips will interfere with cutting to maximum depth, maybe impede the free oil flow and can cause cutter breakage. #1 cause of cutter 2. Keep work, machine, arbor and Hougen Cutter free of chips and dirt. -
Page 16: Commercial / Industrial Limited Warranty
No other expressed warranty is given or authorized. Hougen Manufacturing, Inc. disclaims any implied warranty of MERCHANTABILITY or FITNESS for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.
