Summary of Contents for Hougen HMD915 Series

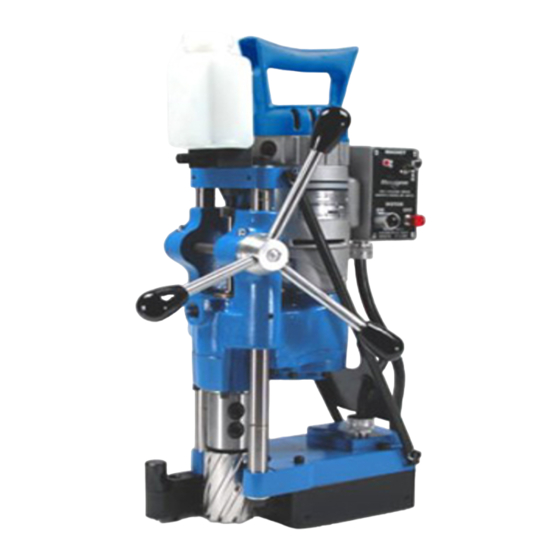

- Page 1 HMD915 SERIES PORTABLE MAGNETIC DRILL OPERATOR’S MANUAL COVERS DRILL PART NUMBERS 0915102, 0915202, 0915302, 0915402 FOR USE WITH "42,000/43,000-SERIES" CUTTERS OM9151013 Printed in U.S.A.
-
Page 2: Specifications
® designed to produce superior holes quickly and effeciently. Through constant innovation and development, Hougen is committed to provide you with hole-producing tools and products to help you be more productive. Before attempting to operate your new Portable Magnetic Drill, please read all instructions first. - Page 3 The tool is equipped Cluttered areas and benches invite injuries. Keep dirt with a 3-conductor cord and a 3-prong grounding type and chips from under magnet and Hougen Cutter plug to fit the proper grounding type receptacle. The area.
- Page 4 Spindle and cutter should never be used as a hand- hold. Keep hands and clothing away from all moving parts. Do not use Hougen Cutters where ejected slug might cause injury (slug ejected at end of cut). Be sure that all safety devices are properly adjusted and in use.
- Page 5 (10569) and then screw the handles into the hub. Complete and mail the Product Registration 8. Install coolant bottle on unit, utilizing screws that are Card NOW. It is important that Hougen Mfg., Inc. have provided a record of product ownership.
-
Page 6: Feed Adjustment
FEED ADJUSTMENT IMPACTOR ADJUSTMENT Adjustment is made with Magnet ON and impactor Drag Screw (Detail No 63A) must be adjusted against the Feed Rod (Detail No.13) so that main housing over the work surface. (Detail No. 63) moves freely up and down the feed Loosen Heads of Front and Rear Impactors rods when feed wheel is turned, so that main housing (Detail No. -
Page 7: Ejector Rod Adjustment
EJECTOR ROD ADJUSTMENT In addition to providing a positive method to insure that a slug is To adjust the ejector rod: not retracted with the cutter, the ejector rod serves as a conduit for the cutting fluid and as a centering guide for positioning the Place the Mag Drill on a steel plate and turn the magnet Mag Drill on the workpiece. - Page 8 3/4" Diam. Shank Rotabroach Cutter HINTS FOR SMOOTHER OPERATION 1. Keep inside of Hougen Cutter clear of chips.Chips will interfere with cutting to maximum depth, may impede the free flow of cutting fluid and can cause cutter breakage. Ejector Rod Point 2.
- Page 9 120V PANEL COMPONENTS (04381) Part # Description Qty. 40374 Nut #6-32 05840 Faceplate 04387 Relay - Solid State 10703 Pilot Light 10705 Rectifier BLK. 10715 Toggle Switch Magnet 10718 Surge Suppressor BLK. 10762 Push Button SwitchGuard 10763 Motor "ON" Switch 10764 Motor "OFF"...
- Page 10 230V PANEL COMPONENTS (10796) Part # Description Qty. 40374 Nut #6-32 05840 Faceplate 04387 Relay - Solid State 10703 Pilot Light 10705 Rectifier BLK. 10715 Toggle Switch Magnet BLK. 10760 Surge Suppressor 10762 Push Button SwitchGuard 10763 Motor "ON" Switch 10764 Motor "OFF"...
-
Page 11: Motor Parts
MOTOR PARTS 36,37 34,35 30,31,32 28,29 Part # Description Part # Description BD-14201 Ball Bearing BD-30613 Bearing Plug BD-30612 Bearing Plug BD-20774-01 Ball Bearing BD-31675 Set Screw BD-24323 Insulating Shield BD-475 3/16” Ball BD-33880-81 Brush Holder Cap BD-38769 Dentent Pin Spring 10583 Brush (Pair) 40140... - Page 14 HMD915 PART NUMBERS Part # Description Part # Description 40126 Bottle Assembly 04909 Bracket-Safety Switch 10983 Shield-Safety Switch 40126 Cap (Must buy Bottle Assy) 10971 40123 Hold Down Fitting SCR-SHC 1/4-20 x 1/2 40058 Washer 90497 SCR-SS 1/4-20 x 3/8 BR 05329 Magnet 230V 40121...
-
Page 15: Commercial / Industrial Limited Warranty
Commercial / Industrial Limited Warranty Hougen Manufacturing, Incorporated warrants its Portable Magnetic Drills and its Electro-hydraulic Hole Punchers for a period of one (1) year and other products for ninety (90) days from date of purchase against defects due to faulty material or workmanship and will repair or replace (at its option) without charge any items returned.
