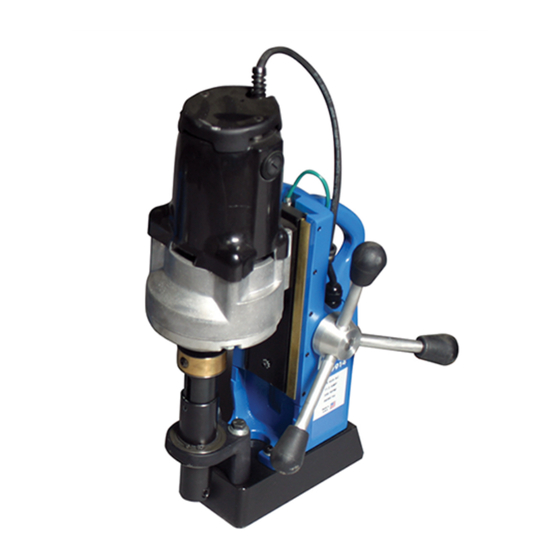

Hougen HMD914 series User Manual

Portable magnetic drills
Hide thumbs Also See for HMD914 series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual, Instruction Manual
HMD914 SERIES
PORTABLE MAGNETIC DRILLS
COVERS DRILL PART NUMBER 0914102
FOR USE WITH "12,000-SERIES" HOUGEN
CUTTERS
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMD914 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hougen HMD914 series

Summary of Contents for Hougen HMD914 series

  • Page 1 HMD914 SERIES PORTABLE MAGNETIC DRILLS COVERS DRILL PART NUMBER 0914102 FOR USE WITH “12,000-SERIES” HOUGEN CUTTERS ®...

  • Page 2: Safety First

    Manual and Warning Label on the unit itself. With proper use, care, and maintenance, your model will provide you with years of effective hole drilling performance. Once again, thank you for selecting our product and welcome to Hougen. The HMD914 is offered in many versions. Refer to the Serial/Part number Label on your housing to direct you to the correct breakdown.

  • Page 3: Important Safety Instructions

    Important Safety Instructions WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electrical shock, fire and/or serious personal injury. ���� ���� ��� ������ ���������� ������ ���� ��� ����������� ���� ����� �������� ������ ������ ���� ���� �� ������� ���������� ����...

  • Page 4: Safety Switch Indicator Light

    OPERATED IN A SAFE MANNER. ������ �� ��� ��� ������ ������� ����� ������� ���� ����� ����� ������ ����� ������� �� ��� �� ����� For any questions please contact Hougen Manufacturing’s ����� ������ �� ��� ��������� ������������� �� ��� ����� Technical Service at (810) 635-7111.

  • Page 5: Commercial / Industrial Limited Warranty

    No other expressed warranty is given or authorized. Hougen Manufacturing, Inc. disclaims any implied warranty of MERCHANTABILITY or FITNESS for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.

  • Page 6: Operating Instructions

    Operating Instructions Always remember that the magnet’s holding power is directly related to the workpiece thickness and surface condition. Since magnetic attraction diminishes with thinner material or rough surfaces, mechanical clamping of drill unit to work- piece should be used when cutting thin material (3/8” or less) or material with uneven surfaces. Note: Always form a loose knot in the power cord close to the molded plug.

  • Page 7: Drill Maintenance

    Installing the HOUGEN Cutter 1. Disconnect power source. 2. Lay drill on its side with feed wheel up to be sure arbor clears table if unit is in normal operating position. 3. Turn feed handles until cutter mounting set screws are exposed and then completely remove the set screws.
  • Page 8 SAFETY CHAIN USE The safety chain should be used to prevent the drill unit from falling in the event of a power failure or if the magnet breaks loose from the work surface. The safety chain should be attached to the drill by running it between the Front Support Bracket and the Drll Housing and then continue around the material and/or work surface.
  • Page 9 0914102 HMD914 Magnet Base Drill (115v Standard Base) Item Part No. Description Magnet / Switch Assembly 07047 (115v standard base) Arbor / Front Support Brkt Assembly 07074 (115v standard base) Drill Housing Assembly 05933 Control Panel Assembly 05188 Motor / Slide Assembly (115 volt) 05976 05979...
  • Page 10 Standard Base Magnet Assembly 07047 115v Assembly (includes items 1-8) Item Part No. Description 07046 Magnet Assembly (115v) 04961 Plunger Assembly 04885 Microswitch Assembly 10971 SCR-SHC 1/4-20 X 1/2 10972 SCR-BHC #6-40 X 3/4 10983 Microswitch Shield 04909 Safety Switch Bracket 17271 Spring 05976 Motor / Slide Assembly...

  • Page 11: Motor Parts List

    40441 40382 40260 40384 40449 40284 (115v) 40445 01088 (230v) 40258 40383 40450 40271 40286 (115v) 40267 40349 40298 40289 40265 05834 (230v) 40285 40269 40266 40267 40287 40273 40262 40276 40262 40292 40263 40279 50035 40290 40275 40261 (115v) 40264 01087 (230v) 40274...
  • Page 12 07074 Arbor Assembly with Coolant Inducer 07075 Arbor Body Assembly Item Qty. Part No. Description 07077 Arbor Body 10517 Retaining Ring 07079 Spring Seat 05049 Spring 40223 Ejection Collar 40312 Roll Pin 40222 Set Screws 7/16-14 X .305 40256 Set Screw 5/16-18 X .38 07083 Set Screw M6 X 1 X 5mm 07076...
  • Page 13 115 volt Control Panel Assembly 05188 Control Panel Assembly Item Part No. Description 07011 Faceplate 90571 Power Cord Assembly (115 volt) 02548 Stand Off 3/16 X 9/16 13334 Motor ON Switch 04881 L.E.D Buld 04877 Wire Harness L.E.D 05826 Circuit Board (115 volt) 04614 Magnet Switch...
  • Page 14 05933 Drill Housing Assembly Use with the 115 volt machines Item Part No. Description 05932 Drill Housing (includes 1-1e) 07036 CSA Safety Label 07035 115 volt Label 40237 Set Screw 1/4-28 X 1/2 40231 Bronze Bushing 40229 Feed Gear 40254 Feed Hub Assembly 05839 Rubber KNOB...
  • Page 15 NOTES...
