HMD914 SERIES

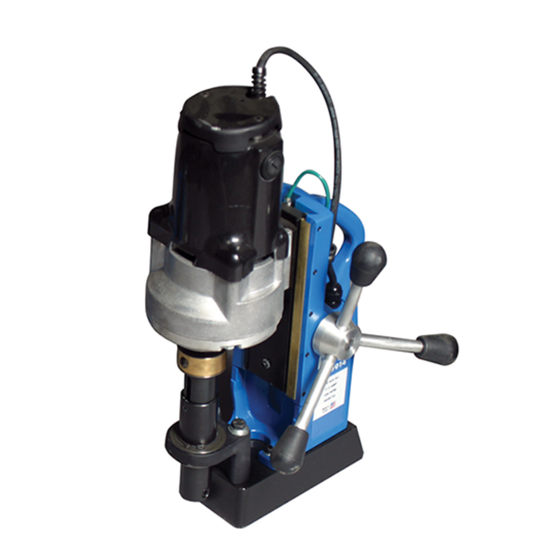

PORTABLE MAGNETIC DRILL
OPERATOR'S MANUAL
COVERS DRILL PART NUMBER 0914102
FOR USE WITH HOUGEN
ROTABROACH
CUTTERS
®
®
OM9140713CSA
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMD914 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hougen HMD914 series

  • Page 1 HMD914 SERIES PORTABLE MAGNETIC DRILL OPERATOR’S MANUAL COVERS DRILL PART NUMBER 0914102 FOR USE WITH HOUGEN ROTABROACH CUTTERS ® ® OM9140713CSA Printed in U.S.A.
  • Page 2: Safety First

    Portable Magnetic Drill . Your model is designed to ® produce superior holes quickly and efficiently. Through constant innovation and development, Hougen is committed to provide you with hole producing tools and products to help you be more productive. Before attempting to operate your new Portable Magnetic Drill, please read all instructions first. These include the Operator’s Manual and Warning Label on the unit itself.
  • Page 3: Important Safety Instructions

    Important Safety Instructions WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electrical shock, fire and/or serious personal injury. Work Area Use safety equipment. Always wear eye production. Dust mask, non-skid safety shoes, hard hat, or hearing protection Keep your work area clean and well lit.
  • Page 4 Arbor and cutter should never be used as a hand- hold. Keep hands and clothing away from all moving parts. Do not use Hougen Cutters where ejected slug might cause injury (slug ejected at end of cut). For any questions please contact Hougen Manufacturing’s Also, adhere to all operating instructions.
  • Page 5: Commercial / Industrial Limited Warranty

    No other expressed warranty is given or authorized. Hougen Manufacturing, Inc. disclaims any implied warranty of MERCHANTABILITY or FITNESS for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.
  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS Always remember that the magnet’s holding power is directly related to the workpiece thickness and surface condition. Since magnetic attraction diminishes with thinner material or rough surfaces, mechanical clamping of drill unit to workpiece should be used when cutting thin material (3/8"...
  • Page 7 SAFETY CHAIN USE The safety chain should be used to prevent the drill unit from falling in the event of a power failure or if the magnet breaks loose from the work surface. The safety chain should be The safety chain should be used to prevent the drill unit from falling in the event of a power failure or if attached to the drill by running it between the Front Support Bracket and the Drll Housing and then continue around the material and/or the magnet breaks loose from the work surface.
  • Page 8: Housing Assembly Breakdown

    MAGNET ASSEMBLY BREAKDOWN Standard Base Magnet Assembly 07047 115v Assembly (includes items 1-8) Item Part No. Description 07046 Magnet Assembly (115v) 04961 Plunger Assembly 04885 Microswitch Assembly 10971 SCR-SHC 1/4-20 X 1/2 10972 SCR-BHC #6-40 X 3/4 04909 Safety Switch Bracket 17271 Spring MOTOR/SLIDE ASSEMBLY BREAKDOWN...
  • Page 9: Motor Parts Diagram

    MOTOR PARTS DIAGRAM 40441 40382 40260 40384 40449 40284 (115v) 40445 01088 (230v) 40258 40383 40450 40271 40286 (115v) 40267 40349 40298 40289 40265 05834 (230v) 40285 40269 40266 40267 40287 40273 40262 40276 40262 40292 40263 40279 50035 40290 40275 40261 (115v) 40264...
  • Page 10 ARBOR WITH COOLANT ASSEMBLY BREAKDOWN 07074 Arbor Assembly with Coolant Inducer 07076 07075 Arbor Body Assembly Item Qty. Part No. Description 07076 07077 Arbor Body 10517 Retaining Ring 07079 Spring Seat 05049 Spring 40223 Ejection Collar 40312 Roll Pin 40222 Set Screws 7/16-14 X .305 40256 Set Screw 5/16-18 X .38...
  • Page 11 NOTES...
