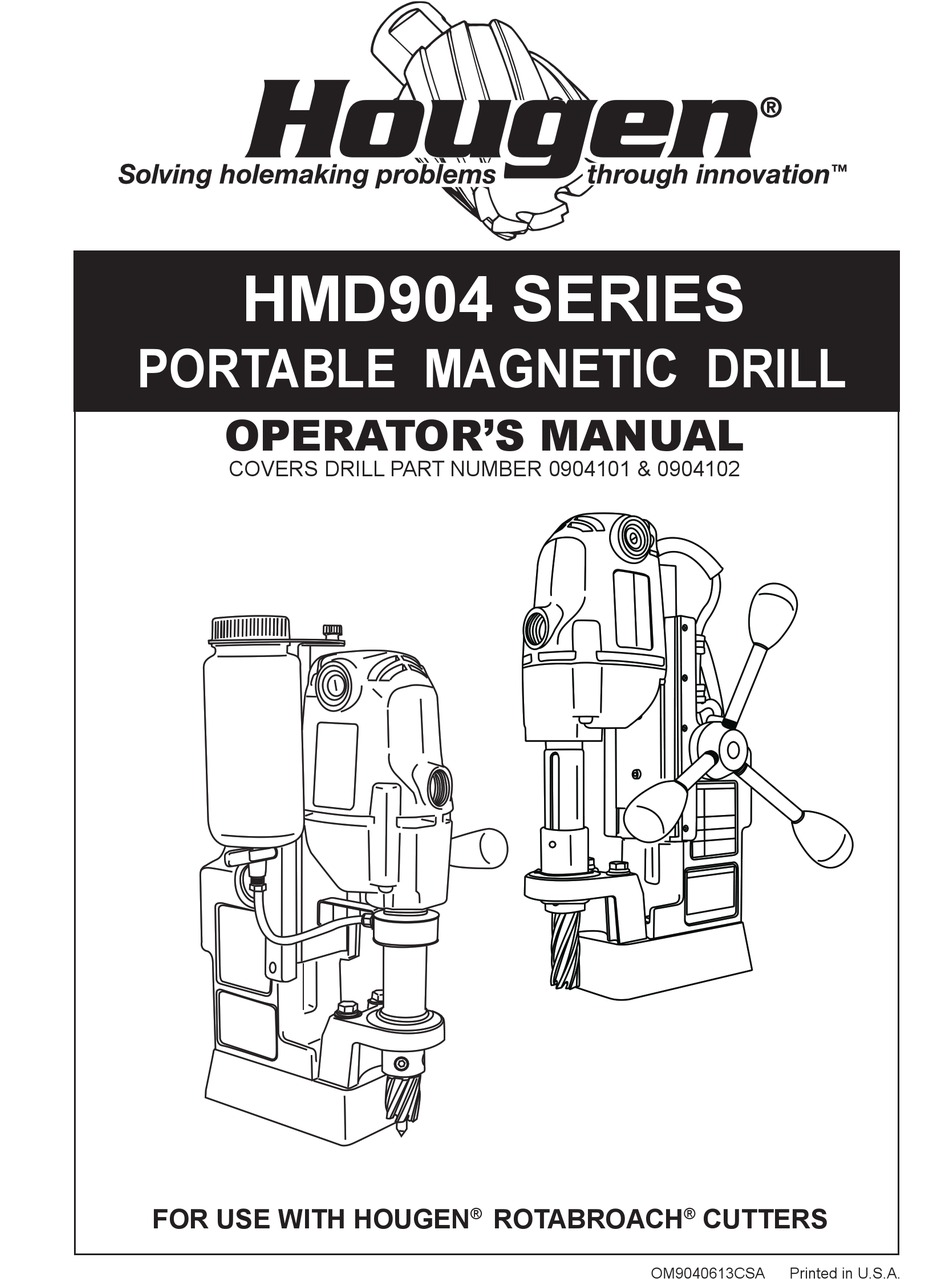

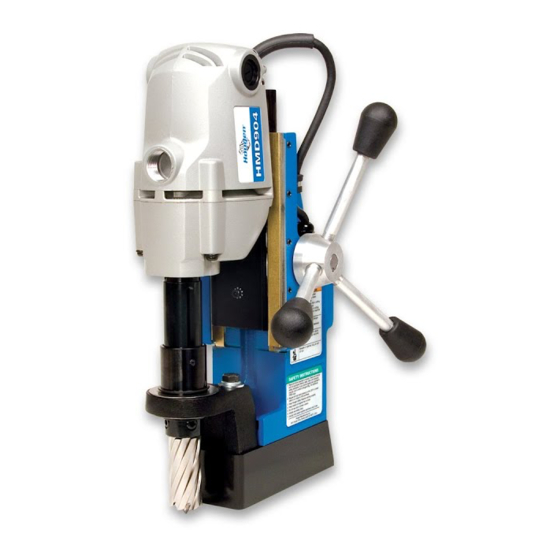

  • Page 1 COVERS DRILL PART NUMBER 0904101 & 0904102 for use with hougen rotabroach cutters ® ® OM9040613CSA Printed in U.S.A.

  • Page 2: Safety First

    Portable Magnetic Drill . Your model is designed to ® produce superior holes quickly and efficiently. Through constant innovation and development, Hougen is committed to provide you with hole producing tools and products to help you be more productive. Before attempting to operate your new Portable Magnetic Drill, please read all instructions first. These include the Operator’s Manual and Warning Label on the unit itself.

  • Page 3: Important Safety Instructions

    Important Safety Instructions WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electrical shock, fire and/or serious personal injury. Work Area Use safety equipment. Always wear eye production. Dust mask, non-skid safety shoes, hard hat, or hearing protection Keep your work area clean and well lit.
  • Page 4 Arbor and cutter should never be used as a hand- hold. Keep hands and clothing away from all moving parts. Do not use Hougen Cutters where ejected slug might cause injury (slug ejected at end of cut). For any questions please contact Hougen Manufacturing’s Also, adhere to all operating instructions.

  • Page 5: Commercial / Industrial Limited Warranty

    No other expressed warranty is given or authorized. Hougen Manufacturing, Inc. disclaims any implied warranty of MERCHANTABILITY or FITNESS for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.
  • Page 6 4. Insert proper pilot in shank end of Hougen Cutter. 5. Insert Hougen Cutter until flat on cutter shank is aligned with set screw holes and is exactly perpendicular to axis of set screw holes. 6. Insert set screws and tighten. Check to be certain that cutter is secure.

  • Page 7: Maintenance

    Hougen Cutting Fluid - Part No. 11742-4) 5. Occasionally check metering of cutting fluid flow. Lack of cutting fluid may teeth is too little cause Hougen Cutter to freeze in cut, slug to stick and may result in poor cutter life. feed pressure* 6.

  • Page 8: Coolant Bottle Assembly

    safetY chain use The safety chain should be used to prevent the drill unit from falling in the event of a power failure or if the magnet breaks loose from the work surface. The safety chain should be The safety chain should be used to prevent the drill unit from falling in the event of a power failure or if attached to the drill by running it between the Front Support Bracket and the Drll Housing and then continue around the material and/or the magnet breaks loose from the work surface.
  • Page 9 0904102 hmd904 115V with coolant Item Part # Description Magnet & Switch Assembly 05378 Standard Base Arbor/Front Support Assembly 07155 Housing Assembly 07122 Panel Assembly 05188 HOOKS TO Refer to the following pages for the Motor/Slide Assembly COOLANT INDUCER Breakdown 02429 Brass Gib Right Hand 02430...
  • Page 10 arbor/front support assemblY breaKdown 05470 Arbor & Front Support Bracket Assy. Item Part # Description 05469 Arbor & Collar Assembly 05458 Arbor Body 01441 Ejection Collar 01439 Spring Seat 10517 Retain. Ring 05049 Spring 40312 Roll Pin 10506 Set Screws 3/8-24 X .305 05628 Set Screw #10-32 X 3/8 04375...
  • Page 11 housing assemblY breaKdown 07122 Housing Assembly (CSA) Item Part # Description 07121 Housing Assembly for 07122 assy. (includes a-f) Serial/Part No. Label 07027 CSA Warning Label for 07122 assy. 04529 Safety Label (shown) 07028 CSA Safety Chain Label 40229 Feed Gear 40231 Bronze Bushing 40237...
  • Page 12 motor slide assemblY breaKdown 115v Motor & Slide Assembly for 0904101 & 0904102 Item Part # Description 05477 Motor Assembly 115v 04527 Motor Label 04528 Specs Label 115v 02413 Motor Cord 11053 Screw BHS #8-32 X 3/16 10538 Lock Washer 04502 Inspection Cover 75289...
  • Page 13 Swartz Creek MI 48473 Portland OR 97209 810-635-7111 503-221-1100 Hougen Manufacturing, Inc. P.O. Box 2005 • Flint, MI 48501-2005 3001 Hougen Drive • Swartz Creek, MI 48473 Phone (810) 635-7111 • Fax (810) 635-8277 www.hougen.com • info@hougen.com © 2013 Hougen Manufacturing, Inc.
  • Page 14 notes...
