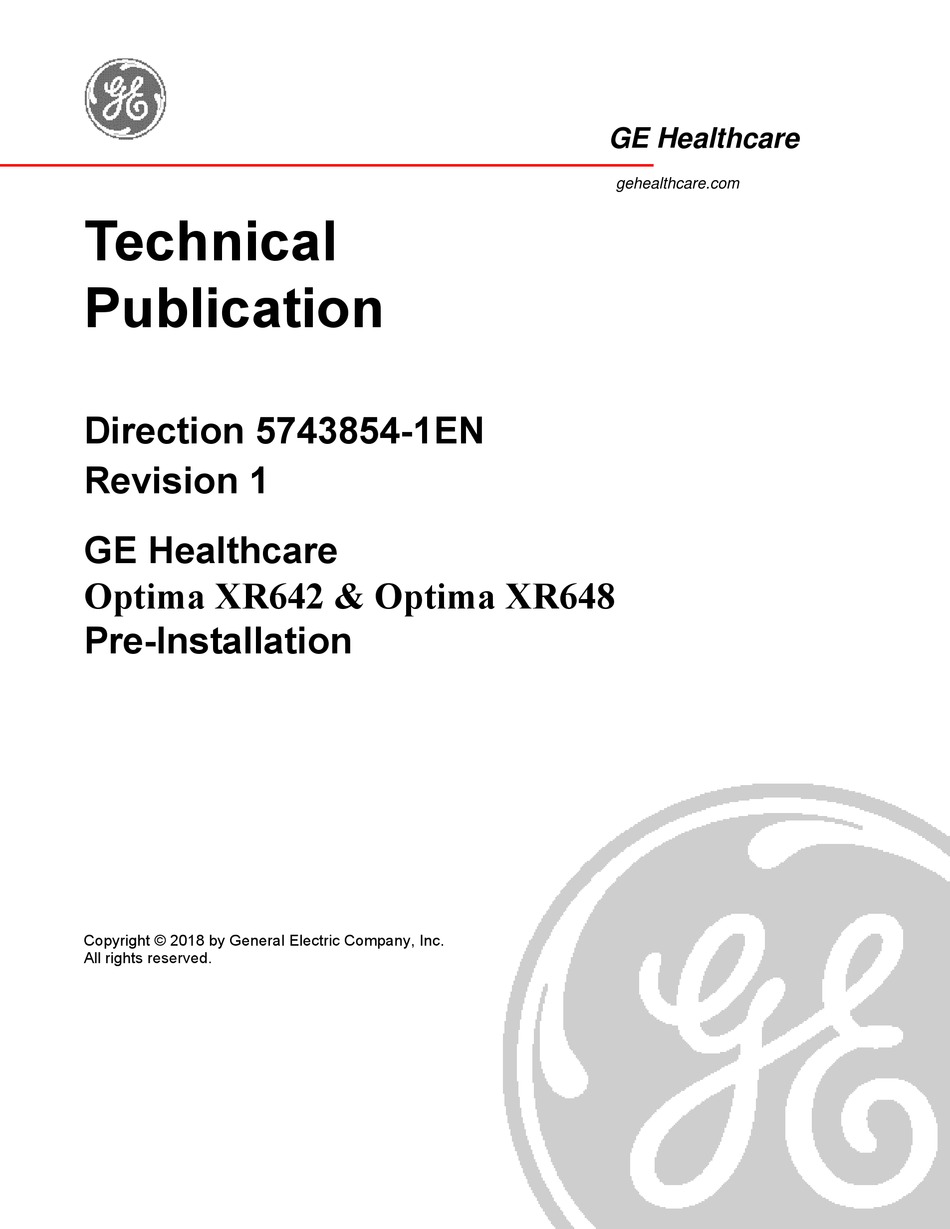

GE Healthcare
gehealthcare.com
Technical 
Publication
Direction 5743854-1EN
Revision 1
GE Healthcare
Optima XR642 & Optima XR648
Pre-Installation
Copyright © 2018 by General Electric Company, Inc.
All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for GE Optima XR642

Summary of Contents for GE Optima XR642

  • Page 1: Direction 5743854-1En Revision

    GE Healthcare gehealthcare.com Technical  Publication Direction 5743854-1EN Revision 1 GE Healthcare Optima XR642 & Optima XR648 Pre-Installation Copyright © 2018 by General Electric Company, Inc. All rights reserved.
  • Page 2 GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION Published by the GE Company, Inc. Engineering/Technical: Page 2...
  • Page 3  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION LEGAL NOTES TRADEMARKS All other products and their name brands are trademarks of their respective holders. COPYRIGHTS All Material, Copyright © 2018 by General Electric Company, Inc. All rights reserved. The material presented and contained herein may not be reproduced in any form or manner, without the written permission of General Electric Company, Inc.
  • Page 4 XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION ONTACT NFORMATION Optima XR642/XR648 Optima XR642/XR648 Systems can be sold by the below names and be manufactured by the below manufactures. Model Manufacturer (*) Manufacturer address Manufacturer Site HUALUN MEDICAL No.1 Yong Chang North Road Beijing SYSTEMS CO.
  • Page 5  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION IMPORTANT PRECAUTIONS LANGUAGE ПРЕДУПРЕЖДЕНИЕ  ТО В А УП Ъ ТВ А Н Е ЗА РА Б О ТА Е Н А Л И Ч Н О С А М О Н А А Н ГЛ И Й С КИ Е ЗИ К.
  • Page 6  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION WAARSCHUWING  DEZE ONDERHOUDSHANDLEIDING IS ENKEL IN HET ENGELS VERKRIJGBAAR. (NL)  ALS HET ONDERHOUDSPERSONEEL EEN ANDERE TAAL VEREIST, DAN IS DE KLANT VERANTWOORDELIJK VOOR DE VERTALING ERVAN.
  • Page 7 OHNE DIESE SERVICEANLEITUNG GELESEN UND VERSTANDEN ZU HABEN  WIRD DIESE WARNUNG NICHT BEACHTET, SO KANN ES ZU VERLETZUNGEN DES KUNDENDIENSTTECHNIKERS, DES BEDIENERS ODER DES PATIENTEN DURCH STROMSCHLÄGE, MECHANISCHE ODER SONSTIGE GEFAHREN KOMMEN.  ΤΟ ΠΑΡΟΝ ΕΓΧΕΙΡΙ∆ΙΟ ΣΕΡΒΙΣ ∆ΙΑΤΙΘΕΤΑΙ ΣΤΑ ΑΓΓΛΙΚΑ ΜΟΝΟ.
  • Page 8  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION AÐVÖRUN  ÞESSI ÞJÓNUSTUHANDBÓK ER EINGÖNGU FÁANLEG Á ENSKU. (IS)  EF AÐ ÞJÓNUSTUVEITANDI VIÐSKIPTAMANNS ÞARFNAST ANNAS TUNGUMÁLS EN ENSKU, ER ÞAÐ SKYLDA VIÐSKIPTAMANNS AÐ SKAFFA TUNGUMÁLAÞJÓNUSTU.  REYNIÐ EKKI AÐ AFGREIÐA TÆKIÐ NEMA AÐ ÞESSI ÞJÓNUSTUHANDBÓK HEFUR VERIÐ...
  • Page 9  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION 경고  본 서비스 지침서는 영어로만 이용하실 수 있습니다 .  고객의 서비스 제공자가 영어 이외의 언어를 요구할 경우 , 번역 서비스를 제공하는 것 (KO) 은 고객의 책임입니다 .
  • Page 10  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION OSTRZEŻENIE  NINIEJSZY PODRĘCZNIK SERWISOWY DOSTĘPNY JEST JEDYNIE W JĘZYKU ANGIELSKIM. (PL)  JEŚLI DOSTAWCA USŁUG KLIENTA WYMAGA JĘZYKA INNEGO NIŻ ANGIELSKI, ZAPEWNIENIE USŁUGI TŁUMACZENIA JEST OBOWIĄZKIEM KLIENTA.
  • Page 11  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION ОСТОРОЖНО!  ДАННОЕ РУКОВОДСТВО ПО ОБСЛУЖИВАНИЮ ПРЕДЛАГАЕТСЯ ТОЛЬКО НА АНГЛИЙСКОМ ЯЗЫКЕ. (RU)  ЕСЛИ СЕРВИСНОМУ ПЕРСОНАЛУ КЛИЕНТА НЕОБХОДИМО РУКОВОДСТВО НЕ НА АНГЛИЙСКОМ, А НА КАКОМ-ТО ДРУГОМ ЯЗЫКЕ, КЛИЕНТУ СЛЕДУЕТ САМОСТОЯТЕЛЬНО ОБЕСПЕЧИТЬ ПЕРЕВОД.
  • Page 12 In performing all electrical work on these products, GE will use its own specially trained field engineers. All of GE’s electrical work on these products will comply with the requirements of the applicable electrical codes.
  • Page 13 Various protective materials and devices are available. It is urged that such materials or devices be used. OMISSIONS & ERRORS Customers, please contact your GE Sales or Service representatives. GE personnel, please use the GEHC iTrak Process to report all omissions, errors, and defects in this publication. Important Precautions Page 13...
  • Page 14  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION This page is intentionally left blank. Page 14 Important Precautions...
  • Page 15  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION Revision History Revision Date Reason for change Jan.19, 2018 First release Revision History Page 15...
  • Page 16  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION List of Effected Pages PAGES REVISION PAGES REVISION 1 through 134 Page 16 List of Effected Pages...

  • Page 17: Table Of Contents

     GE H EALTHCARE XR642/XR648 P 5743854-1EN, R PTIMA NSTALLATION IRECTION EVISION Table of Contents Preface Publication Convention ................21 Section 1.0 Safety & Hazard Information ............21 Hazard Messages......................21 Text Format of Signal Words ................... 21 Symbols and Pictorials Used ................... 22 Equipment Classifications....................
  • Page 18  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION 1.2.5 Room Light Requirements ................. 54 Section 2.0 System Component Dimensions and Weights ......55 Dimensions ........................56 Table ..........................57 System Cabinet....................... 58 Over-Head Tube Support (OTS) ..................59 Wall Stands ........................
  • Page 19  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION 2.2.3 JEDI Generator 3-Phase 65 kW and System - Minimum Wire Size ..99 2.2.4 kVA Load Characteristics 65KW................. 99 2.2.5 JEDI Generator 3-Phase 80 kW and System - Minimum Wire Size ..100 2.2.6...
  • Page 20  GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION 2.10 Computer ..............128 2.11 RCIM II ..............128 Section 3.0 System Master Interconnect Schematic (MIS Chart)....129 Section 4.0 System Architecture..............131 Page 20 Table of Contents...

  • Page 21: Preface Publication Convention

     GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION Preface Publication Convention Standardized conventions for representing information is a uniform way of communicating information to a reader in a consistent manner. Conventions are used so that the reader can easily recognize the actions or decisions that must be made.

  • Page 22: Symbols And Pictorials Used

    GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION NOTICE - Indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property. This signal word is associated directly with a hazard or hazardous situation and is used in place of 'DANGER,' 'WARNING,' or 'CAUTION.'...

  • Page 23: Equipment Classifications

     GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION Equipment Classifications The following equipment classifications are applicable to the product: • Equipment classification with respect to protection from electric shock: Class I • Degree of protection from electric shock: Type B •...

  • Page 24: Page Layout

    (e.g. numbers) contain infor- mation that must be followed in a specific order. Figure 0-1 Optima XR642/XR648 Component Identification Headers and footers in this publication are designed to allow you to quickly identify your location. The document part number and revision number appear in every header on every page. Odd numbered page footers indicate the current chapter, its title and current page number.

  • Page 25: Buttons, Switches And Keyboard Inputs (Hard & Soft Keys)

     GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION Example: This paragraph’s font represents computer generated screen “fixed” output. Fixed Output Its output is fixed from the sense that it does not vary from application to application. It is the most commonly used style used to indicate filenames, paths and text that do not change from system to system.
  • Page 26 GE H EALTHCARE 5743854-1EN, R XR642/XR648 P IRECTION EVISION PTIMA NSTALLATION This page is intentionally left blank. Page 26 Preface...

  • Page 27: Chapter 1 General Requirements

    Power and ground cables to the PDU. • Properly installed and sized junction boxes, including covers and fittings at locations required and called out in architectural drawings. • Use GE-recommended wires and cables as defined in this document. Chapter 1 - General Requirements Page 27...

  • Page 28: Section 2.0 Common Product Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Section 2.0 Common Product Requirements Dimensions and Layout Carefully check room layouts for adequate radiographic coverage, necessary clearances and provision for related equipment. Good judgment is required to avoid compromising important features.

  • Page 29: Section 3.0 Delivery Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Section 3.0 Delivery Requirements Door Size Requirements Minimum door sizes also apply to hallway and elevator. Door Height: The minimum door height accommodated is 190 cm (75in) when the Wall Stand is tilted on the dolly.
  • Page 30 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 1-1: Wall Stand: Site In-Transit Dimensions • For Standard global URP Wall Stand and Extended Global URP Wall Stand Page 30 Section 3.0 - Delivery Requirements...
  • Page 31 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation • For Manual Wall Stand. Chapter 1 - General Requirements Page 31...
  • Page 32 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation The cabinet can pass up a maximum slope of 10 degrees and pass over a maximum barrier on the floor of 25mm (0.98 in). Illustration 1-2 : Cabinet with its wheels in transit Page 32 Section 3.0 - Delivery Requirements...
  • Page 33 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 1-3: Table Package • For Standard Table (Optima XR648 Only) Table height:540mm(21.3") Table lift by dolly:30mm(1.2") Chapter 1 - General Requirements Page 33...
  • Page 34 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Some system components are packed into two “Lean Carts”. Illustration 1-3 Exam Room Lean Cart Illustration 1-4 Control and Options Lean Cart Page 34 Section 3.0 - Delivery Requirements...

  • Page 35: Shipping And Transit Dimensions And Weights

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Shipping and Transit Dimensions and Weights Table 1-1 SHIPPING DATA Shipping Data Component Shipping Dimensions (Approx) SHIPPING SHIPPING WEIGHT (approx) METHOD Length Width Height Stationary Rail (4m)(set of 2 4400mm (14.4ft) 62.5mm (2.46in)

  • Page 36: Preparing The Delivery Route

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table 1-1 SHIPPING DATA Shipping Data Component Shipping Dimensions (Approx) SHIPPING SHIPPING WEIGHT (approx) METHOD Length Width Height Patient Barrier 1000mm (39.4in) 600mm (23.6in) 1800mm (70.9in) 80kg (176.4lbs) 410mm Footstool for Patient 1040mm (41in) 850mm (33.5in)

  • Page 37: Section 4.0 Product Storage And Handling Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Section 4.0 Product Storage and Handling Requirements Relative Humidity and Temperature This section provides information for the environmental requirements for the storage of the system. Table 1-2 Environmental Requirements (Relative Humidity & Temperature)

  • Page 38: Atmospheric Pressure

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Atmospheric Pressure Table 1-3 Environmental Requirements - (Altitude & Atmospheric Pressure) PRODUCT OR COMPONENT ALTITUDE ATMOSPHERIC PRESSURE Stationary Operating Environment and Non-operating Environment Total System Limits -30 m (-98.43 ft) 3000 m(9,842.52 ft)

  • Page 39: Chapter 2 Equipment

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Chapter 2 Equipment Section 1.0 System Components System Components This system may consist of the following main components: • Elevating Table with a URP Digital Detector and Power Supply (Optima XR648 Only) •...
  • Page 40 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Note: The PC cannot be put on the ground directly. Illustration 2-1 : System Component Identification The system is divided into basic components : 1. Operator Console 2. Standard Table 3. System Cabinet 4.

  • Page 41: Optional Components (Purchased Or Flextrial)

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 12. TIB 13. Detector Battery 14. Detector Battery Charger 15. Manual Wall Stand 1.1.1 Optional Components (Purchased or Flextrial) The system can include the following free-standing components, which can be purchased as options: •...

  • Page 42: Floor Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 1.2.2 Floor Requirements The preferred method of installing the wall stand is to use the provided typical floor anchors (Non- Seismic ONLY). 1.2.2.1 Floor Requirements When Using Provided Typical Floor Anchors Concrete area for wall stand installation should be 1 m2 (39.37 in2).

  • Page 43: Ceiling Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation span floor joists.See Illustration 2-3. Illustration 2-3 : Thru-Bolt Floor Mounting (Pan-Type Floor Construction) Item Description For Pan-Type Floor Construction Joists Must Be Spanned With Steel Channels (Customer Furnished) Floor Flat Washer Thru Bolt for 16 mm (Hole Of Appropriate Length.)
  • Page 44 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table 2-2 Recommended, Minimum and Maximum Room Heights (Floor to Top of Longitudinal Rail) 2M or 3M Bridge Minimum 2686 mm (105.75") 2M or 3M Bridge with Extended Wallstand at Foot Position Minimum 2750 mm (108.27")
  • Page 45 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Note: After calculated image pasting scenario based on APPV14 software package and new patient barrier (19.7cm height platform), the relationship between ceiling height and footstool was shown in below table. Table 2-3 Ceiling Height With Footstool...
  • Page 46 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Ceiling Mounted) with 2M Bridge Item Description When a 50 lb. (22.7 kg) force is applied vertically upward, vertically downward, or horizontally at any support rail mounting point, the attachment interface must not deflect more than 1/16”...
  • Page 47 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-7 : Specifications for a Typical 4064mm (13’- 4") Stationary Rail Mounting Interface (Both Rails Ceiling Mounted) with 3M Bridge Item Description When a 50 lb. (22.7 kg) force is applied vertically upward, vertically downward, or horizontally at any support rail mounting point, the attachment interface must not deflect more than 1/16”...
  • Page 48 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-8 : Specifications for a 12M Rail (12.192m (40ft)) Stationary Rail Mounting Interface (Both Rails Ceiling Mounted) with 2M/3M Bridge Page 48 Section 1.0 - System Components...
  • Page 49 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-9 : Suggested UNISTRUT Structure for OTS Suspension Illustration 2-10 : OTS Cable Routing Ceiling Hook 350~400 mm Keep 2 or 3 waves with 1 or 2 hooks Keep 3 waves with 3 hooks in one cable rail...
  • Page 50 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-11 : 12 Meter Rail Cable Routing Min 470 (18.5") for 2m bridge Min 950 (37.4") 1422mm(56") for 3m bridge Required Min 350 Min 102 (13.78") (4") Page 50 Section 1.0 - System Components...

  • Page 51: Wall Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 1.2.4 Wall Requirements TIB, Detector BIN and Dongle ASSY should be installed on a suitable wall can afford the ASSY. The parameters of these terms showing in Table-2-3 and Table 2-4 1.2.4.1...

  • Page 52: Detector Bin

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 1.2.4.2 Detector BIN BIN bottom should be installed 10cm-20cm (4in-8in) height from the floor. Illustration 2-14 :Detector BIN structure overview Illustration 2-15 : Detector TIB rear cover (wall mount) 1.2.4.3 Dongle Assembly Illustration 2-16 : Dongle structure overview Dongle is only be provided for wireless system.

  • Page 53: Grid Holder

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 1.2.4.4 Grid Holder Grid Holder should be installed 10cm to 20cm (4in to 8in) height from the Grid Holder Bottom to the floor . Illustration 2-17 :Grid Holder overview Illustration 2-18 : Grid Holder Wall Panel 1.2.4.5...

  • Page 54: Room Light Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 1.2.5 Room Light Requirements For the electronic ballast of fluorescent lamp in exam room, the operating frequency should be above 42KHz, For reference: Priority Manufacture Type Manufactory Operating Remarks Product number...

  • Page 55: Section 2.0 System Component Dimensions And Weights

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Section 2.0 System Component Dimensions and Weights Note: Table information is only applicable for Optima XR648. Chapter 2 - Equipment Page 55...

  • Page 56: Dimensions

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Dimensions Table 2-4 Product Physical Characteristics (Width / Depth / Height) PRODUCT OR DIMENSIONS References COMPONENT Width Depth Height Operator Console: PC 167.9mm (6.6in) 455.3mm (17.9in) 450.2mm (17.7in) Tower HP z420 LCD 387mm (15.2in)

  • Page 57: Table

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table Illustration 2-20 : Table View Front View Table Left Side View Table Base View Illustration 2-21 : Table Top Movement Dimension Chapter 2 - Equipment Page 57...

  • Page 58: System Cabinet

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation System Cabinet Illustration 2-22 : System Cabinet Dimensions (Front, Top, Left) Illustration 2-19-1: System Cabinet Wall-Mount Bracket Page 58 Section 2.0 - System Component Dimensions and Weights...

  • Page 59: Over-Head Tube Support (Ots)

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Recommended seismic mounting locations (in red circles) Over-Head Tube Support (OTS) The OTS comprises a system for suspending and supporting an X-ray tube unit and collimator. It employs a spring counterpoise mechanism to balance these loads. The OTS’s main components are the stationary rails, the bridge and the support column.
  • Page 60 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-23 : OTS Side view Ceiling Lock position Lowest calibration position Floor When Lowest point of OTS could touch floor, keep OTS SID=1800mm, Height=901+1800+250=2951mm When OTS center is parallel to WS center at lowest position of OTS, OTS SID=1800mm,...
  • Page 61 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation The dimension from bottom of ceiling to bottom of rail is 84.3 mm (3.3 in). Chapter 2 - Equipment Page 61...
  • Page 62 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-24 :OTS Suspension Focal Spot Travel Range - 2M Bridge Min 102 1422mm(56") Required Min 470 (18.5") (4") 2020 (79.5") 860 mm(33.9") 1770mm(69") Page 62 Section 2.0 - System Component Dimensions and Weights...
  • Page 63 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-25 : OTS Suspension Focal Spot Travel Range - 3M Bridge Min 102 1422mm(56") Required Recommend 950 (37.4") (4") Limit 882.39(34.75") 3080 (121.3") 860 mm(33.9") 2830mm(111") Chapter 2 - Equipment...

  • Page 64: Wall Stands

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Wall Stands Illustration 2-26 : Wall Stand Dimensions (0 and 90 degrees) • Standard global URP Wall Stand and Extended Global URP Wall Stand Page 64 Section 2.0 - System Component Dimensions and Weights...
  • Page 65 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation • Manual Wall Stand Chapter 2 - Equipment Page 65...
  • Page 66 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-27 : Wall Stand Base Plate Dimensions • For Standard global URP Wall Stand and Extended Global URP Wall Stand Page 66 Section 2.0 - System Component Dimensions and Weights...
  • Page 67 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation • For Manual Wall Stand Chapter 2 - Equipment Page 67...
  • Page 68 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-28 : Wall Stand Base Plate and its Cover Dimensions • For Standard global URP WS and Extended Global URP WS • For Manual Wall Stand Page 68 Section 2.0 - System Component Dimensions and Weights...

  • Page 69: Stretcher Tables

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Stretcher Tables Illustration 2-29 : E6401J Stretcher Dimensions (optional) Illustration 2-30 : S1700JM Carbon Fiber Stretcher Dimensions (optional) Illustration 2-31 : E6401K and E10811VB Stretcher Dimensions (optional) Chapter 2 - Equipment...

  • Page 70: Image Pasting Barrier

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Image Pasting Barrier Illustration 2-32 : Image Pasting Barrier (Optional) Floor 267 or 410 Illustration 2-33 : UPS (Optional) 410 mm (16.14 in) 214 mm (8.43 in) If the UPS grounding impedance exceeds 0.2ohm, UPS might alarm with site wiring fault. This could be disabled through UPS “User Settings”, but not recommended.

  • Page 71: Weights, Floor/Ceiling Loading And Recommended Mounting Methods

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Weights, Floor/Ceiling Loading and Recommended Mounting Methods Table 2-5 Product Physical Characteristics (weight) PRODUCT OR WEIGHT LOAD BEARING RECOMMENDED AREA ft2 (m2) MOUNTING COMPONENT INFORMATION Operator Console: PC 19.6 Kg (43.2pounds)
  • Page 72 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table 2-5 Product Physical Characteristics (weight) PRODUCT OR WEIGHT LOAD BEARING RECOMMENDED AREA ft2 (m2) MOUNTING COMPONENT INFORMATION Grid Holder Assembly 13.8 kg (30.42 lbs) Mount on wall Image Pasting Barrier with 54.44 kg (120 lbs)

  • Page 73: Longitudinal Rails

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 2.10 Longitudinal Rails Kit B2054LB contains the bumpers and the longitudinal belt. Table 2-6 Longitudinal Rails Item Rail Length Cat Number Longitudinal focal spot travel 4115 mm B0162JA + B2054LB 3055 mm...

  • Page 74: Section 3.0 Room Layout

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Section 3.0 Room Layout Note: Table related room layout design is only applicable for Optima XR648 table. Required Service Access Clearance Allow appropriate space for service access of equipment. Illustrations are shown below indicating the required access space for servicing the equipment.
  • Page 75 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Minimum Required Service Access Clearance is 610 mm (24 in). Illustration 2-37 : Wall Stand Chapter 2 - Equipment Page 75...

  • Page 76: Clinical Access

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Clinical Access Make sure that you plan the room with the following clinical access requirements: • Provide easy access to the patient table. Stretchers and other mobile hospital equipment must reach the table quickly.

  • Page 77: Outside Control Room Layout

    5.) There shall be no metal obstacle within the 20 cm range of dongle installation position 6.) There shall be no obstacle between dongle and digital cassette area Configurations and option In Table Below, Room configurations supported for the System are selected. Table 2-7 Optima XR642/XR648 System Configuration Bridge Length, Wall Stand Wall Stand Type...
  • Page 78 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table 2-7 Optima XR642/XR648 System Configuration Bridge Length, Wall Stand Wall Stand Type System Position 2M Bridge 3M Bridge Front Back Head Foot Front Back Head Foot Global URP WS &...
  • Page 79 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-38 : Standard/Extended Arm Wall Stand only, at Foot with 2M/3M Bridge Cabinet Ø Ø Ø Dongle Bridge Dimension ITEM Wall Stand Description Length Standard WS 24.8 Foot End of rail to center line of tilted Detector...
  • Page 80 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-39 : Standard Arm Wall Stand, WS only at Head with 2M/3M Bridge Cabinet Ø Ø Ø Dongle Bridge Dimension ITEM Wall Stand Description Length Standard WS 24.8 Foot End of rail to center line of tilted Detector Standard WS minimum service clearances.
  • Page 81 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-40 : Standard Table & Manual WS at Foot with 3M bridge Item Limit Recommend Description Dimension Dimension inch inch 24.8 27.6 Foot end of rail to center line of WS detector.
  • Page 82 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 37.8 1000 39.4 Back of bridge to center line of table. With manual WS, the Min value should be larger than 960 (860 +100 Cal space ) 1100 43.3 1300 51.2 Table center line to WS center line.
  • Page 83 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-41 : Standard Table & Manual WS at Head with 3M bridge Item Limit Recommend Description Dimension Dimension inch inch 24.8 27.6 Head end of rail to center line of WS detector.
  • Page 84 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 37.8 1000 39.4 Back of bridge to center line of table. With manual WS, the Min value should be larger than 1960 (860 +100 Cal space + 600 distance between focal spot to back of OTS...
  • Page 85 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-42 : Manual WS only with 2M bridge Item Limit Recommend Description Dimension Dimension inch inch 24.8 27.6 Foot end of rail to center line of WS detector. With manual WS, the Min value should be larger than 630 mm (530+100 Cal space) 15.7 Service clearance for WS installation.
  • Page 86 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation (10) 1000 39.4 1000 39.4 Distance between foot side wall and WS detector centor. The Min value should be larger than 1000 mm for service clearance. (11) 1353 53.3 1400 55.1 Service clearance for cabinet.
  • Page 87 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 2-43 : Min Room Layout for Limited Service Clearance (Standard table+ WS) w/o Control room Min Room Layout for Limited Service Clearance (Standard table+ WS) w/o Control room is only for Special case and must meet below limitations.
  • Page 88 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation could be exposed. Remove all table cover. most components could be repaired except replacing table actuator and tabletop. Room Size Summary 1.) If with control room, width need add min 1100mm. so min room size is 4217mm*4800mm 2.) If 2200mm stretcher table is used, width need min 4000mm (200+200+960+table width/2+2200) to push it into...
  • Page 89 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Room size summary for full service function summary Configuration Standard Table + Manual WS or Standard Table + Extended Manual WS only(L*W*H) G2 Standard  WS(L*W*H) WS(L*W*H) Room type Min (mm) Recommend...

  • Page 90: Section 4.0 Seismic

    Any additional hardware that is required will be the responsibility of the institution and/or their contractor. Contact your local GE representative to obtain seismic calculations. Seismic calculations are per California Building Code (CBC) and International Building Code (IBC).

  • Page 91: Chapter 3 Special Construction

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Chapter 3 Special Construction Section 1.0 Radiation Protection Because X-ray equipment produces radiation, special precautions may need to be taken or special site modifications may be required. The General Electric Company does not make recommendations regarding radiation protection.
  • Page 92 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation This page is intentionally left blank. Page 92 Section 1.0 - Radiation Protection...

  • Page 93: Chapter 4 Hvac

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Chapter 4 HVAC Note: Table information is only applicable for Optima XR648. Section 1.0 Environmental Requirements Relative Humidity and Temperature Table 4-1 Environmental Requirements (Relative Humidity & Temperature) Product or Component...

  • Page 94: Altitude And Atmospheric Pressure

    0.253 Kilowatt 6.75 BTU/h 0.002 Kilowatt 68 BTU/h 0.020 Kilowatt 31.61 BTU/h 0.009 Kilowatt 45.45 BTU/h 0.013 Kilowatt EMC Requirement Refer to the Direction 5743857-1EN Optima XR642/XR648 Specification Chapter 4 - EMC Compliance Statement Page 94 Section 1.0 - Environmental Requirements...

  • Page 95: Chapter 5 Electrical

    The information in this section should be adhered to, unless there are written deviations approved by GE Healthcare. This section gives the sizes and procedures on how to power and ground your system. If these power and grounding instructions are not adhered to, proper operation cannot be guaranteed.

  • Page 96: Electrical Grounds

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation In the X-ray room, there must be a lockable facility power disconnect. It must be installed electrically before the equipment, for the purpose of locking out the power. This must be done before service to the high voltage system is performed.

  • Page 97: Section 2.0 Electrical Requirements

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Section 2.0 Electrical Requirements Generator Electrical Requirements All system components obtain their power from the Power Distribution Unit (PDU) in the System Cabinet. Providing power and ground wires to the PDU are the responsibility of the customer . As an aid, wire sizes for various lengths of the power supply cable are shown in the following tables.

  • Page 98: System Wire Sizes & Kva Load Characteristics

    • Recommended feeder sizes from distribution transformer to the power cabinet. • Neutral must be terminated inside the main disconnect panel and not at any GE cabinet. • The grounding conductor will be of same size as the feeder wires. This ground will run from equipment back to the facility power source / main grounding point and always travel in the same conduit with the feeders and neutral.

  • Page 99: Kva Load Characteristics 50Kw

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table 5-3 JEDI Generator 3-Phase 50 kW System - Minimum Wire Size 138m (450 ft) * minimum wire size for circuit breaker, based on recommended overcurrent protection. 2.2.2 kVA Load Characteristics 50KW...

  • Page 100: Jedi Generator 3-Phase 80 Kw And System - Minimum Wire Size

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 2.2.5 JEDI Generator 3-Phase 80 kW and System - Minimum Wire Size Table 5-7 JEDI Generator 3-Phase 80 kW System - Minimum Wire Size WIRE RUN INPUT VOLTAGE (VAC) LENGTH +/- 10%...

  • Page 101: Room Power Supply

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation 2.4.1 Room Power Supply Illustration 5-1 : Room Power Supply (refer to Table 5-8) Chapter 5 - Electrical Page 101...

  • Page 102: Multiple Emergency "Off" Switches

    Multiple Emergency “OFF” Switches The facility designer determines the quantity and locations of the Emergency OFF (E/O) switches. GE recommends placing at least one Emergency OFF switch near the doorway of every room in the system scan suite. Illustration 5-2 shows how multiple Emergency “OFF” switches could be wired.

  • Page 103: Section 3.0 Routing Cables

    • Power distribution from the System Cabinet load power unit (SKL) to all the components in the system room. Usually the feeder power from the Hospital distribution center is customer supplied and the power distribution within the system is supplied by GE Healthcare. Chapter 5 - Electrical Page 103...

  • Page 104: Section 4.0 Light Specification

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Section 4.0 Light Specification The monitor screen is adjusted for an optimum ambient light level of 50 lux. Section 5.0 Dimensioned Figures and Drawings Note: Table information is only applicable for Optima XR648.
  • Page 105 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 5-3 : Wall box Dimensions 370 mm X 170 mm(14.6in x 6.7in) Wall Box Side View Chapter 5 - Electrical Page 105...

  • Page 106: System Equipment Cable Entrance

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation System Equipment Cable Entrance Illustration 5-4 : System Cabinet Cable Entrances Page 106 Section 5.0 - Dimensioned Figures and Drawings...
  • Page 107 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Illustration 5-5 : Table Cable Entrance • For Standard Table Table Base View Table Left view This is the back side of the table Illustration 5-6 : Wall Stand Cable Entrance...

  • Page 108: Power Requirements For Tib

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Power requirements for TIB 5.3.1 The System cabinet distribute the power 120VAC to TIB J1 through MIS 020075 and TIB Ground cable PN# 5400785, See System Master Interconnect Schematic. TIB output 12VDC by tether cable to URP Detector. See Architecture...

  • Page 109: Chapter 6 Communications/Networking

    • 100BaseT network connection is preferred • 10BaseT network connection is acceptable If using GE PACS LITE BOX software, the GE PACS LITE BOX software revision must be 6.1d02 or greater. Older versions will not work with the system. 1. Connection of the product to a network that includes other equipment could result in previously unidentified risks to patients, operators or third parties;...

  • Page 110: Remote Services Broadband Pre-Installation Requirements For Europe

    In case of Broadband, this connection will also be used for the remote service of the equipment. • GE Healthcare offers a wide range of connectivity solutions: From full GE package (GE supplies Router and customer buys the line) to customized solutions (GE adapts to customer infrastructure).

  • Page 111: Section 2.0 Networkflow Audit

    The information will also be used to ease and speed the integration of the system into your facility .This audit is intended to be performed before the system is quoted to you. With all facts uncovered, GE can prepare a more accurate quote and minimize “surprises” at the time of install.

  • Page 112: The Physical Network

    When it comes to image quality, would you prefer to; Consider all images good unless marked bad Consider all images bad unless marked good The Physical Network Physical infrastructures vary widely from institution to institution. GE Healthcare tried to pick the Page 112 Section 2.0 - Networkflow Audit...

  • Page 113: System Parameters

    192.168.3.50 detector IP after boot in Tether/wireless If the hospital network uses 192.168.x.x, there will be a conflict. If this conflict occurs, you must contact your GE Service Representative to change the internal IP Addresses used by the system. System Host Name: _________________________ Network (IP) Address: _ _ _ .
  • Page 114 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation The Host Name is the network's name for the Subnets are a method of logically dividing a system. network into smaller blocks. This is usually done based upon locality, functionality or security requirements.
  • Page 115 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table 6-1 Remote Host Data Network (IP) Address: _ _ _ . _ _ _ . _ _ _ . _ _ _ _ _ . _ _ _ . _ _ _ . _ _ _ _ _ .

  • Page 116: Devices & Services Audit

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Devices & Services Audit Use the following narrative to complete the form on the Being a remote host server allows the system to previous page. push images to other devices. If you want the device to accept this service, check yes and provide the AE title and port number.
  • Page 117 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Table 6-3 Printers Include a DICOM Compliance Statement for each printer Manufacturer/Model: Software/Firmware Version: _ _ _ . _ _ _ . _ _ _ . _ _ _ _ _ _ . _ _ _ . _ _ _ . _ _ _...

  • Page 118: Data Flow Analysis

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation RIS Systems: As with the remote hosts please list the Fill in the Host name. manufacturer and the model name/number. The software/firmware version should also be entered. Look in the DCS for the AE title and port number.
  • Page 119 GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation XR System ⇒ Archive Device ⇒ Spooler ⇒ Printer (s) XR System ⇒ Archive Device ⇒ Review Workstation ⇒ Printer XR System ⇒ Archive Device ⇒ Review Workstation ⇒ Spooler ⇒ Printer XR System ⇒...

  • Page 120: What Will Happen Next

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation What Will Happen Next? Next, your completed audit sheet will be analyzed by your GE Healthcare representative and any issues identified. Page 120 Section 2.0 - Networkflow Audit...

  • Page 121: Chapter 7 System Cable Information

    GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation Chapter 7 System Cable Information Section 1.0 Introduction The following information is provided as an aid to make the physical installation of system cables easy and efficient. In the tables that follow, the physical characteristics of each cable and its associated connectors is provided.
  • Page 122  GE Healthcare Direction 5743854-1EN, Revision 1 Optima XR642/XR648 Pre-Installation This page is intentionally left blank. Page 122 Section 1.0 - Introduction...

  • Page 123: Section 2.0 Cable Information

    Section 2.0 Cable Information CONNECTOR USABLE RATING ITEM PART NO. DESCRIPTION MIS NO LENGTH SIZE (MM) LENGTH VOLTAGE L*W*D 19.5M 350ACV FeiTian OTS CAN and CANopen Cable - ROHS 5146500-7-ROHS 11629A 35 X 20 X 45 compliant (65.62FT) (63.98FT) 500VDC 24.5M 350ACV FeiTian Tube Stator,Fan and Pressure Switch...

  • Page 124: System Mis Cable-Ots For 12M Rail

    System MIS Cable-OTS for 12M Rail CONNECTOR USABLE RATING ITEM PART NO. DESCRIPTION MIS NO LENGTH SIZE (MM) LENGTH VOLTAGE L*W*D 29.5M 5491864 Optima 3M bridge OTS cable hose Assembly (98.43FT) (96.78FT) 29.5M 5491865 Optima 2M bridge OTS cable hose Assembly (98.43FT) (96.78FT) G2 Table Standard Length MIS Cable 5496118...

  • Page 125: G2 Table Long Length Mis Cables 5496119 (Optima Xr648 Only)

    G2 Table Long Length MIS Cables 5496119 (Optima XR648 Only) CONNECTOR USABLE RATING ITEM PART NO. DESCRIPTION MIS NO LENGTH SIZE (MM) LENGTH VOLTAGE L*W*D 20.5M 350ACV 5307318-5 Table Ion chamber MIS cable 020045 45 x 20 x 45 (68.90FT) (67.26FT) 500VDC 49.5...

  • Page 126: Ext Ws Length Version 5262569-3

    CONNECTOR USABLE RATING ITEM PART NO. DESCRIPTION MIS NO LENGTH SIZE (MM) LENGTH VOLTAGE L*W*D 14.5M 350ACV Substitute 5146500-2 for Rohs compliance, 5336722-2 11756A 30 x 21 x 87 FeiTian WS Power Cable (49.21FT) (47.57FT) 500VDC 14.5M Substitute 5146500-5 for Rohs compliance, 5336738-2 11757A 300V...

  • Page 127: Wallbox

    WallBox CONNECTOR USABLE RATING ITEM PART NO. DESCRIPTION MIS NO LENGTH SIZE (MM) LENGTH VOLTAGE L*W*D 19.5M 350ACV Substitute 5146500-15 for Rohs compliance, 5336719 11760A 35x20x45 FeiTian II WBI Jedi CAN Cable (65.62FT) (63.98FT) 500VDC 19.5M 350ACV Substitute 5146500-16 for Rohs compliance, 5336720 11761A 35x20x45...

  • Page 128: Dongle

    Dongle CONNECTOR USABLE RATING ITEM PART NO. DESCRIPTION MIS NO LENGTH SIZE (MM) LENGTH VOLTAGE L*W*D 23.5M 5412201 Gryphon Dongle Ground cable 300V φ35 X 50 (78.74FT) (77.10FT) 2.10 Computer USABLE RATING CONNECTOR ITEM PART NO. DESCRIPTION MIS NO LENGTH LENGTH VOLTAGE SIZE (MM)

  • Page 129: Section 3.0 System Master Interconnect Schematic (Mis Chart)

    FIRST MADE FOR: Everest II Fei xiaoyang Aug 22, 2016 Updated APPR GE MEDICAL SYSTEMS GE HUALUN MEDICAL SYSTEM Wang Jian Li Jingliang Apr 07, 2017 Correct J3 from 120VDC to PC RS232 to match design DOC1484195 MILWAUKEE, WI OTHER...
  • Page 130 FIRST MADE FOR: Everest II Fei xiaoyang Aug 22, 2016 Updated APPR GE MEDICAL SYSTEMS GE HUALUN MEDICAL SYSTEM Li Jingliang Correct J3 from 120VDC to PC RS232 to match design Wang Jian DOC1484195 Apr 07, 2017 MILWAUKEE, WI OTHER...

  • Page 131: Section 4.0 System Architecture

    Section 4.0 System Architecture Architecture - SIGNAL Acq. Monitor (NEC) 1Gbps Ethernet Docked Dongle JEDI CAN G1 URP WS Image Ion chamber (Std. arm) VGA 1 Monitor SYS CAN CANopen (Ext. arm) (NEC) VGA 2 Tether 100Mbps 1Gbps Ethernet Mouse Docked Z420 Multi-lang Keyboard...
  • Page 132 Architecture POWER & GROUNDING Dongle HOSP. WS PWR: 110VAC 380-480VAC WS DPS PWR: 110VAC G1 URP WS (Std. arm) (Ext. arm) TIB PWR: 110VAC + GND Tether (12VDC) Acq. Z420 Monitor TBL PWR: 220VAC (NEC) TBL DPS PWR: 110VAC G1 URP TBL 110VAC 110VAC (Elev.
  • Page 134 GE HEALTHCARE NO.1, YONGCHANG NORTH ROAD ECONOMIC & TECHNOLOGICAL DEVELOPMENT ZONE FAX: 86-10-67881850 TELE: 86-10-58068888 BEIJING, P. R. CHINA 100176...

This manual is also suitable for:

Optima xr648

Table of Contents
