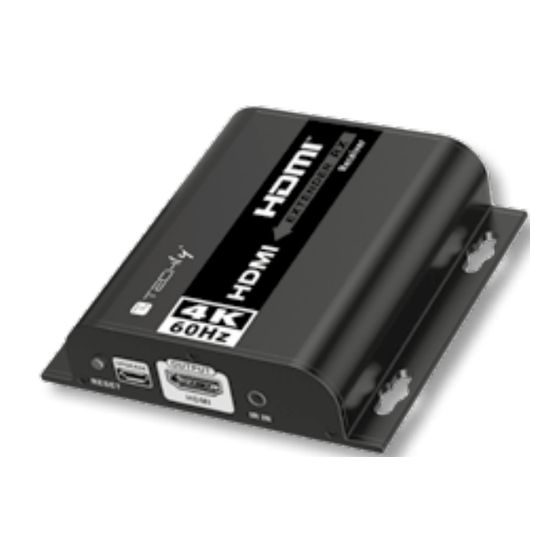

- Page 1 4K@60HZ HDMI User's Manual EXTENDER Manuale d’istruzione Technical features P/N: IDATA EXTIP-483 8058956621161 WWW.TECHLY.COM...
- Page 2 • Do not install the product at places subject to vibration, or oscillation • Do not modify and alter the product and any accessories! Do not use any damaged parts. • Keep enough space around all devices for a good ventilation and free motion and to avoid damages. WWW.TECHLY.COM...
- Page 3 INSTALLATION REQUIREMENTS 1. HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc..) 2. HDMI display device like SDTV, projector with HDMI port 3. Network cables: UTP/STP Cat5e/6 networking cables, which following the standard of EIA568B WWW.TECHLY.COM...
- Page 4 Video Source Light off: No data transmission Steady on: The data is transmitting HDMI IN ➒ Network link light Light off: nessuna connessione di rete Video Source HDMI IN CAT5/5e/6 Steady on: network connection is normal CAT5/5e/6 Switch Switch Switch*N WWW.TECHLY.COM...
- Page 5 Switch CAT5/5e/6 Switch CAT5/5e/6 Switch Note: Gigabit (1000Mbps) switcher is recommended in LAN transmission. Note: 1. If it is PoE version, please use PoE network router/switch 2. It is recommended that Gigabit Ethernet switched (1000Mbps) be used in LAN. WWW.TECHLY.COM...
- Page 6 HDCP 1.4/HDCP 2.2 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080p@24/25/30/50/60Hz, 720p@50/60Hz, Resolutions 576p@60Hz, 480p@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 • One-to-one connection Connection types • One-to-many connection • Switch cascading Transmission • 120m with Cat6 cable distance • 100m with Cat5e cable WWW.TECHLY.COM...
- Page 7 0-90% RH (no condensation) Housing Aluminium Weight 156g 154g Dimension 96,8 (L) x 94 (D) x 23,7 (H) mm ESD protection 1a Contact discharge level 2 (+/-4KV) 1b Air discharge level 3(+/-8KV) Protection Implementation of the standard: IEC61000-4-2 Lightning protection, Surge protection WWW.TECHLY.COM...
- Page 8 There is a separate collections system for these products in compliance with WEEE directive, otherwise contaminative and hazardous substances can pollute the environment. With the CE sign, Techly ensures that the product is ® conformed to the basic European standards and directives.
- Page 9 • Mantenere sufficiente spazio attorno alla periferica per garantire una buona ventilazione, permettere una maggiore libertà di movimento ed evitare danni. • Non scollegare la periferica durante l’uso, mantenere il prodotto distante da materiali infiammabili ed esplosivi. WWW.TECHLY.COM...
- Page 10 REQUISITI D’INSTALLAZIONE 1. Periferica sorgente HDMI (scheda grafica computer, DVD, PS3, apparecchiature di monitoraggio HD, ecc..) 2. Schermi HDMI come SDTV, proiettore con porta HDMI 3. Cavi di rete: cavi di rete UTP/STP Cat5e/6, che rispondano allo standard EIA568B WWW.TECHLY.COM...
- Page 11 ➑ Video Source Luce spenta: non c'è trasmissione dati Accesa: trasmissione dati HDMI IN ➒ Spia connessione di rete Luce spenta: nessuna connessione di rete Video Source HDMI IN CAT5/5e/6 Accesa: connessione di rete normale CAT5/5e/6 Switch Switch Switch*N WWW.TECHLY.COM...
- Page 12 Nota: Si consiglia l’uso di uno switch Gigabit (1000Mbps) per la trasmissione di rete LAN. Note: 1. Se si tratta di versione PoE, utilizzare router/switch di rete PoE 2. Si consiglia di utilizzare un Switch Gigabit Ethernet (1000Mbps) nella LAN. WWW.TECHLY.COM...
- Page 13 1 x RJ45 1 x HDMI Lunghezza cavo ≤ 5m ≤ 5m HDMI Massimo tasso 18 Gbps di trasferimento HDMI 2.0 Compatibilità HDCP 1.4/HDCP 2.2 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080p@24/25/30/50/60Hz, 720p@50/60Hz, Risoluzioni 576p@60Hz, 480p@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 WWW.TECHLY.COM...
- Page 14 156g 154g Dimensioni 96,8 (L) x 94 (P) x 23,7 (A) mm Protezione ESD 1a Contact discharge level 2 (+/-4KV) 1b Air discharge level 3(+/-8KV) Protezioni Implementation of the standard: IEC61000-4-2 Protezione contro i fulmini, protezione contro le sovratensioni WWW.TECHLY.COM...
- Page 15 Contattate le autorità locali competenti per ottenere informazioni in merito allo smaltimento corretto della presente apparecchiatura. Con il marchio CE, Techly garantisce che il prodotto è ® conforme alle norme e direttive europee richieste.
- Page 16 All rights reserved. All trademarks and trade names are those of their respective owners. TECHLY® - Viale Europa 33 - 33077 Sacile (PN) - Italy WWW.TECHLY.COM...
