Page 1: Table Of Contents

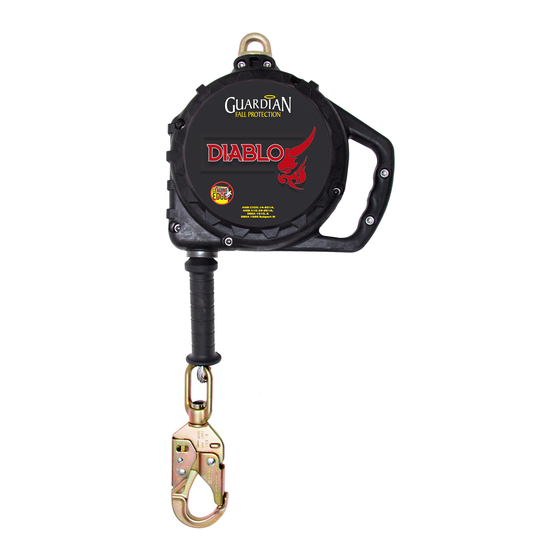

Product Name: Diablo Cable SRL Part #: 42009; 42011 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations 2 - 3 Components and Specifications... -
Page 2: Introduction
Introduction Thank you for purchasing a Guardian Fall Protection Diablo Cable SRL. This manual User Information must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any Date of First Use: applicable state agency. -
Page 3: Product Specific Applications
SRL must always be positioned at or above harness dorsal D-ring AND at or below anchor point. Applicable D-ring: Dorsal. Restraint: Diablo Cable SRL may be used in Restraint applications. Restraint systems prevent workers from reaching the leading edge of a fall hazard. Always account for fully deployed length of lanyard/SRL. -
Page 4: Components And Specifications
All connections must be selected and deemed compatible with Diablo Cable SRL by a Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs. -
Page 5: Installation And Use
Person. 2. Ensure structure to which Diablo Cable SRL is to be attached, and on which work is to be performed, is free of all hazards, including, but not limited to, debris, rot, rust, sharp or abrasive edges and surfaces, and hazardous materials. -
Page 6: Inspection
(located beneath rubber stopper) and ensure no damage is present at location where swage contacts lifeline. IMMEDIATELY remove Diablo Cable SRL from service if defects or damage are found, or if exposed to forces of fall arrest. During inspection, consider all applications and hazards Diablo Cable SRL has been subjected to. -
Page 7: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. -
Page 8: Labels
Labels Serial # Mfg. Date 3/16” CABLE 3/16” NYLON COATED CABLE CUSTOM 42009 42011 WARNING: Prior to use, fully read INSPECTION: Prior to each use, and understand all manufacturer’s inspect device per instructions, instructions provided with equipment at including locking function (sharp pull to time of shipment.
