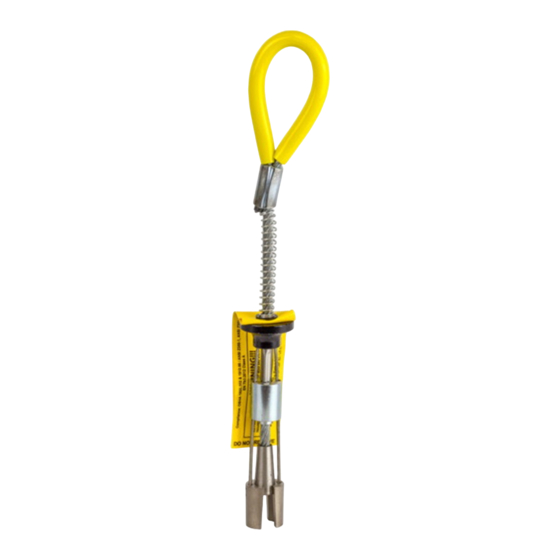

3/4" Fall Protection G-Lok's are to be used in concrete or steel, DO NOT use in wood or any other substrate.
This product is used in precast concrete only with a compressive strength of at least 5,000 PSI
Main Cable
Ball Shank
Toggle Bar
Hole Plug
Spring
Swage
Return Wire
Anchor Loop
Use For Fall Protection Only !!
3/4" G-Lok
Tested -
Strength -
Model -
Color Coded in Bright Yellow Tubing
Company Logo
ANSI Z359.1 Mark
Manufactured Date
Hole Diameter/Size
Hole Diameter/Size
Warning Instructions
TM
7x19 Aircraft Cable
Stainless Steel
Stainless Steel
6061 T6 aluminum
Zinc Coated Stainless Steel
Zinc Coated Copper
1x19 Aircraft Cable
Polyurethane
ANSI Z359.1
5,000 lbs / 22kn
RTL #???
Compliance:
ANSI Z359.1 5,000 lbs.
Batch Number
Model # / Batch 000
Model Number
Manufactured 00/00/00
Patent Markings
US Patent Pending
1"
Made in the USA
1""
Do Not use in wet or
uncured concrete. Use in
precast concrete only
with a compressive
strength of at least 5,000
PSI. Use for fall
Warning:
All persons using this
equipment must read,
understand and follow all
instructions. Failure to do
so may result in serious
injury or death.

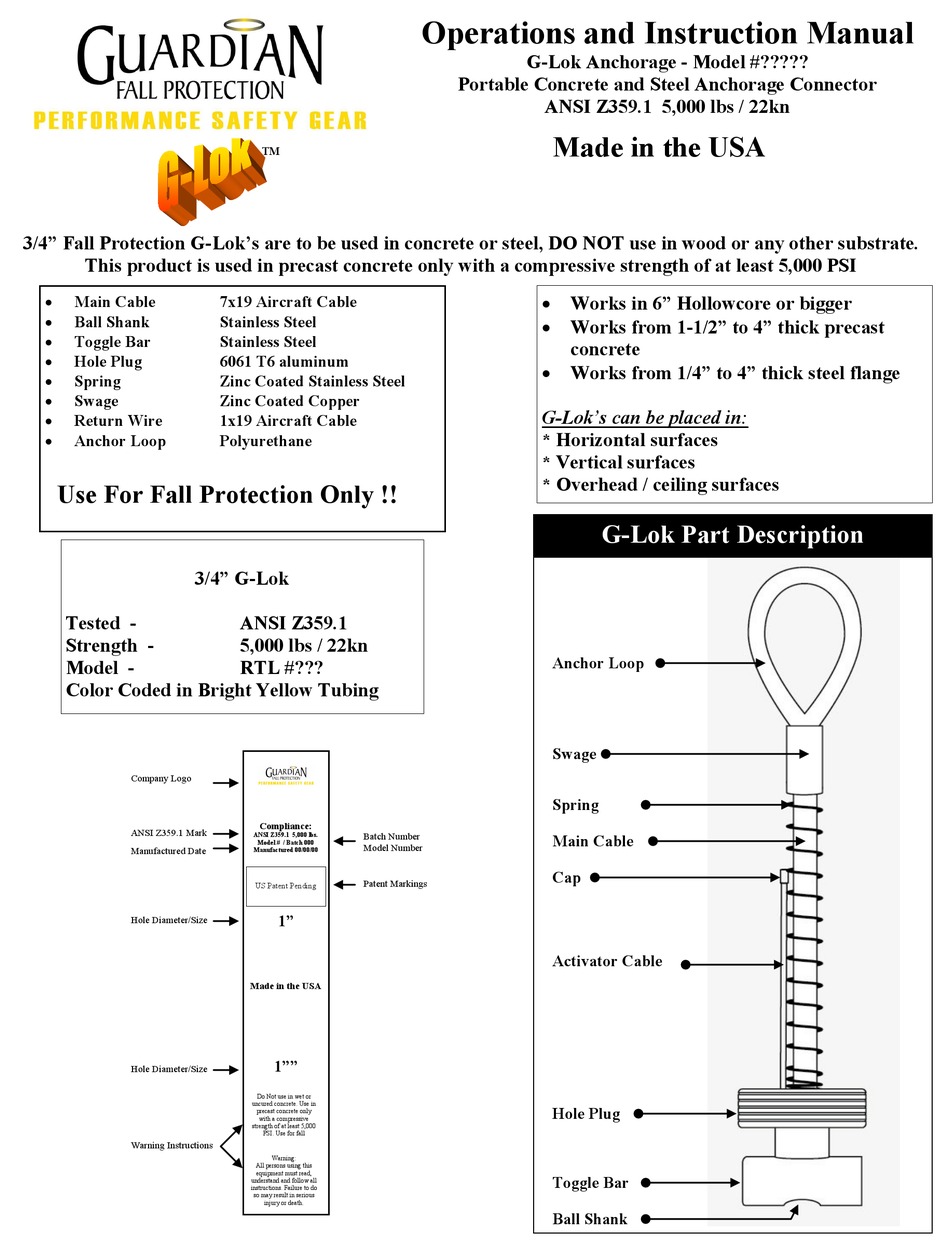

Operations and Instruction Manual
G-Lok Anchorage - Model #?????
Portable Concrete and Steel Anchorage Connector
ANSI Z359.1 5,000 lbs / 22kn
Made in the USA
Works in 6" Hollowcore or bigger
Works from 1-1/2" to 4" thick precast
concrete
Works from 1/4" to 4" thick steel flange
G-Lok's can be placed in:
* Horizontal surfaces
* Vertical surfaces
* Overhead / ceiling surfaces
Anchor Loop
Swage
Spring
Main Cable
Cap
Activator Cable
Hole Plug
Toggle Bar
Ball Shank
G-Lok Part Description
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Guardian Fall Protection G-Lok
Summary of Contents for Guardian Fall Protection G-Lok
- Page 1 Made in the USA 3/4” Fall Protection G-Lok’s are to be used in concrete or steel, DO NOT use in wood or any other substrate. This product is used in precast concrete only with a compressive strength of at least 5,000 PSI ...
- Page 2 Activating the Toggle Bar Set the Toggle Bar in the insertion position ( See Dia. A ) Place your thumb on the Cap of the Activator Cable. Push the unit through the hole while pressing on the Cap. As the unit passes through the hole, the Toggle Bar will flip to the open position.
-
Page 3: Important Warnings
All persons using this equipment must read and understand all instructions. Failure to do so may result in serious injury or death. If a fall occurs, the G-Lok must be disposed of according to the manufacturer instructions. Users should be familiar with regulations governing this equipment. All individuals who use this product must be correctly instructed before using this device. - Page 4 Instructions For Use In Concrete Use For Fall Protection Only !! Drill a 3/4” diameter hole . Drill hole in the center of core hollow. Never drill hole closer than 6” to any edge or corner. Always inspect a previously drilled hole for deformation. Drill another proper hole ...
- Page 5 Placement in Concrete Only when the unit is activated in the open position is it safe Push the unit downwards until the for load bearing. Spring fully compresses. pushing on Unit in position. insertion Activator Cap will force the Toggle Bar into open Position.
- Page 6 The steel flange must be at least 1/4” thick and you must drill the center of the hole at least 1-1/2” from any edge or corner. It is important that you drill your G-Lok hole to the manufacturer’s required diameter. All holes must be drilled to a 3/4”...
- Page 7 Placement in Steel Unit in insertion position. The center of the hole must be drilled at least 1-1/2” from any edge. Push the unit downward until the Spring fully compresses. Pushing on Only when the unit is activated in the Activator Cap will force the Toggle Bar into open position.
- Page 8 Address Here...
