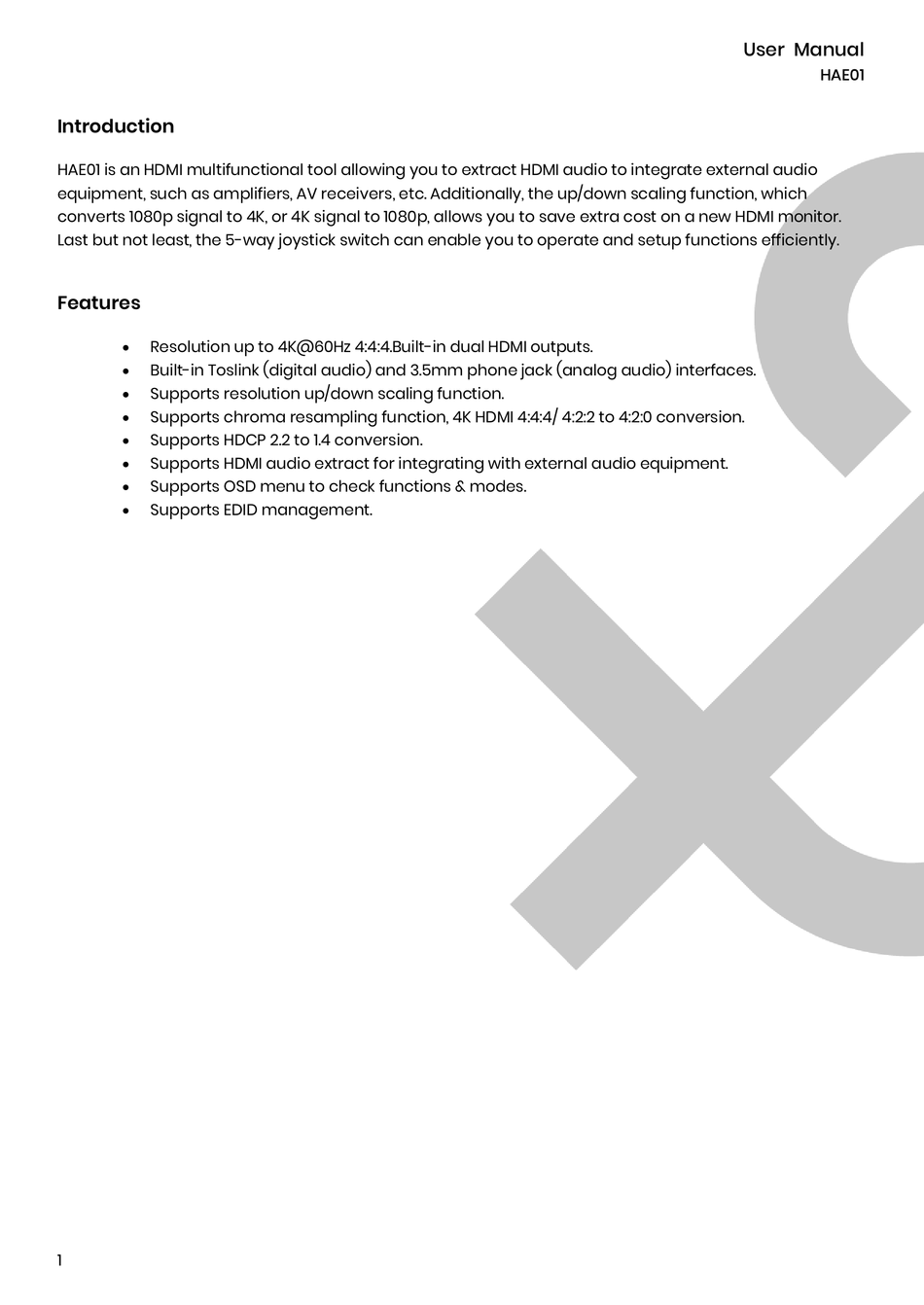

Introduction
HAE01 is an HDMI multifunctional tool allowing you to extract HDMI audio to integrate external audio
equipment, such as amplifiers, AV receivers, etc. Additionally, the up/down scaling function, which
converts 1080p signal to 4K, or 4K signal to 1080p, allows you to save extra cost on a new HDMI monitor.
Last but not least, the 5-way joystick switch can enable you to operate and setup functions efficiently.
Features
Resolution up to 4K@60Hz 4:4:4.Built-in dual HDMI outputs.

Built-in Toslink (digital audio) and 3.5mm phone jack (analog audio) interfaces.

Supports resolution up/down scaling function.

Supports chroma resampling function, 4K HDMI 4:4:4/ 4:2:2 to 4:2:0 conversion.

Supports HDCP 2.2 to 1.4 conversion.

Supports HDMI audio extract for integrating with external audio equipment.

Supports OSD menu to check functions & modes.

Supports EDID management.

