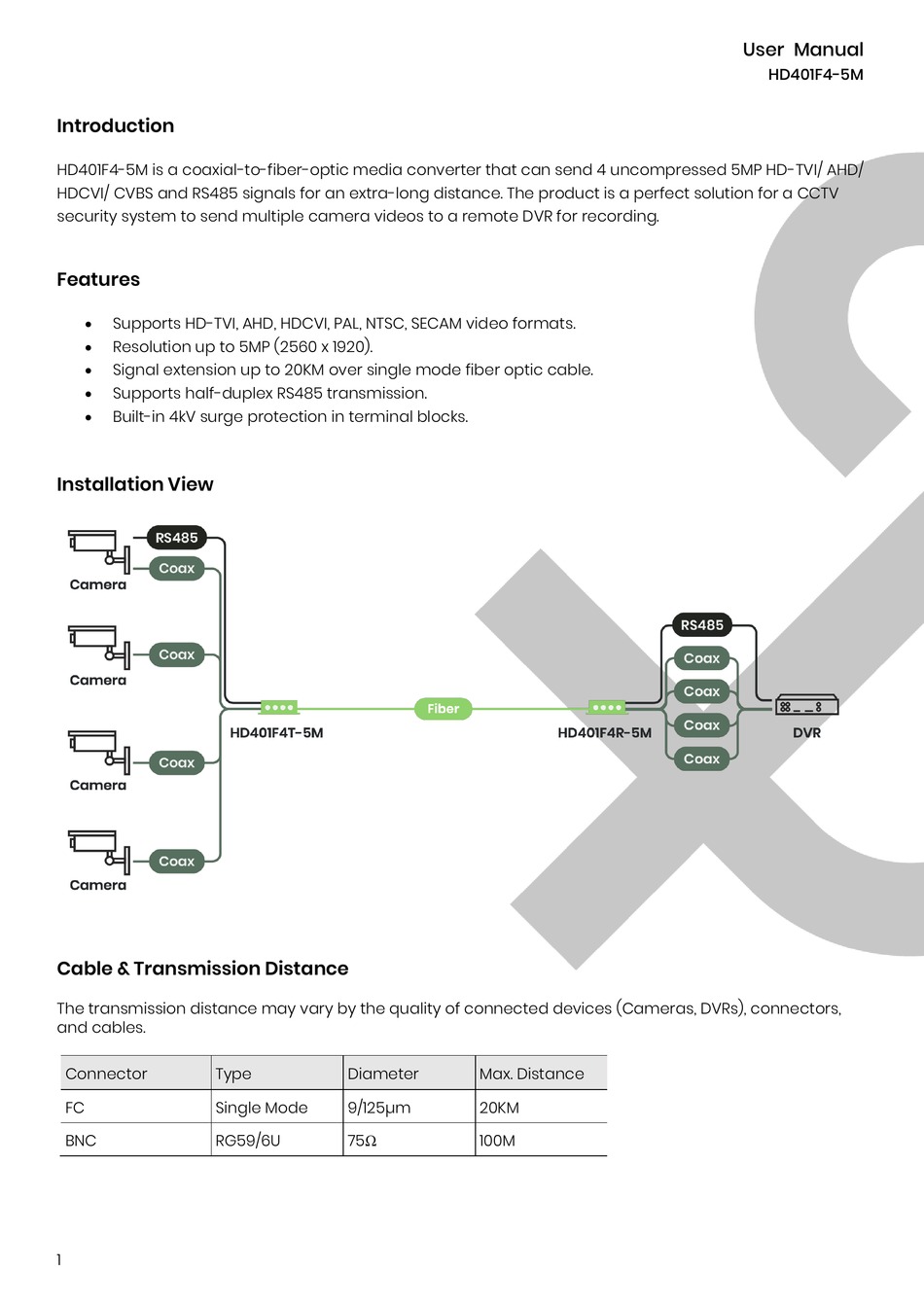

Introduction
HD401F4-5M is a coaxial-to-fiber-optic media converter that can send 4 uncompressed 5MP HD-TVI/ AHD/
HDCVI/ CVBS and RS485 signals for an extra-long distance. The product is a perfect solution for a CCTV
security system to send multiple camera videos to a remote DVR for recording.
Features
Supports HD-TVI, AHD, HDCVI, PAL, NTSC, SECAM video formats.
Resolution up to 5MP (2560 x 1920).
Signal extension up to 20KM over single mode fiber optic cable.
Supports half-duplex RS485 transmission.
Built-in 4kV surge protection in terminal blocks.
Installation View
Cable & Transmission Distance
The transmission distance may vary by the quality of connected devices (Cameras, DVRs), connectors,
and cables.
Connector
Type
FC
Single Mode
BNC
RG59/6U
1
Diameter
Max. Distance
9/125µ m
20KM
75Ω
100M
User Manual
HD401F4-5M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SC&T HD401F4-5M
Summary of Contents for SC&T HD401F4-5M
- Page 1 HD401F4-5M Introduction HD401F4-5M is a coaxial-to-fiber-optic media converter that can send 4 uncompressed 5MP HD-TVI/ AHD/ HDCVI/ CVBS and RS485 signals for an extra-long distance. The product is a perfect solution for a CCTV security system to send multiple camera videos to a remote DVR for recording.
-
Page 2: Rs485 Pin Assignment
User Manual HD401F4-5M Resolution Pixels Frame Rate 1MP (1280 x 720) 30/50 fps 1.3MP (1280 x 960) 30 fps 2MP (1920 x 1080) 25/ 30fps 3MP (2408 x 1536) 20 fps 4MP (2560 x 1440) 15 fps 5MP (2560 x 1920) 12.5 fps... -
Page 3: Panel View
User Manual HD401F4-5M Panel View Interface Description Fiber FC connector To connect a single mode fiber cable Power To indicate the status of power Fiber To Indicate the connecting status of fiber port Video To indicate the connecting status of BNC port... -
Page 4: Led Indication
User Manual HD401F4-5M Installation Guide The video transmission systems series are preset for use with the data protocol RS-485. Simply connect the signal, power supply and fiber optic cables between the two units. There are indicator LEDs on the units for monitoring the real-time status of power and data. The following instructions describe the typical installation procedure and the function of the LED indicators located on each unit. - Page 5 User Manual HD401F4-5M recommended. Shut down the power supply and unplugged all equipment immediately if: water or any kind of liquid has been spilled into the product the product has been damaged by external forces the product does not operate normally as this manual indicates Please contact us for further repair if above conditions happen.
-
Page 6: What's Included In The Package
User Manual HD401F4-5M What’s included in the package Item HD401F4T-5M (Tx) HD401F4R-5M (Rx) DC 5V 2A Power Adapter Screw Screw Plug Rubber Pads... -
Page 7: Specification
User Manual HD401F4-5M Specification ITEM NO. HD401F4T-5M HD401F4R-5M Support Video Format HD-TVI/ AHD/ HDCVI/ CVBS Max. Video Resolution 5MP (2560 x 1920) @12.5fps Video Bandwidth 50MHz Max. Distance 20Km Baud Rate 0-200Kbps, Half-duplex (From Rx to Tx) Input/ Output Wavelength...
