- Page 1 HDMI Distributor User Manual Model : HUE03-4K 4K HDMI/DisplayPort/USB-C CAT5e.6 Extender Smart Cabling & Transmission Corp. V1.0_2005131...
-
Page 2: Installation View
User Manual HUE03-4K Introduction HUE03-4K features the latest video interfaces, HDMI/ DisplayPort/USB-C, supporting up to 4K resolution, which provides user BYOD (Bring Your Own Device) presentations and collaborative meetings with a complete panel for smartphones, laptops & tablets. With the compatible HDMI receiver, HE03R-4K & HE03LR-4K, the solution suits any size of meeting rooms from small to the large scales. - Page 3 User Manual HUE03-4K Extends one of HDMI/DP/USB-C signals to multiple displays Extends one of HDMI/DP/USB-C signals to multiple displays through Gigabit Ethernet Switch * EEE(Energy-Efficient Ethernet) function must be turned off, when connect to Gigabit Ethernet Switch.
-
Page 4: Panel View

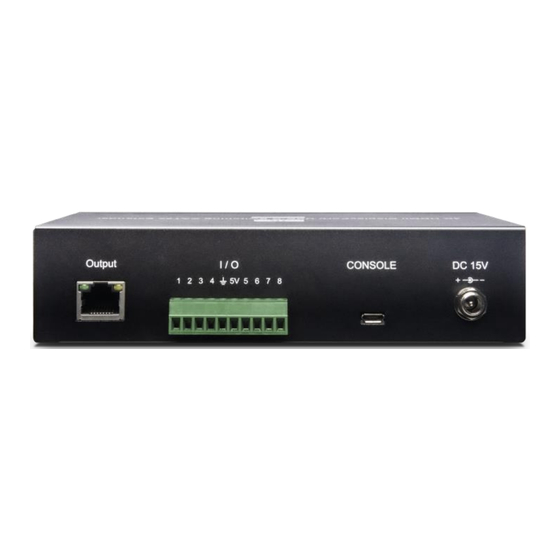

User Manual HUE03-4K Panel View HUE03T-4K Interface Function BLANK Button Press to send or cut off video and audio signals to receiver. (LED light intermittently when cutting off the signals.) Press to set on/off of Auto-detection mode. (Refer to Auto-detection Mode) HDMI Button Press to select the video and audio from HDMI input. -
Page 5: Auto-Detection Mode
User Manual HUE03-4K Description USB-C input port support 15W/39W power output and DP-Alt mode (video/audio transmission) only. USB data transmission is not supported. 2. USB-C cable must support DP-Alt mode or with E-mark, or the general USB-C cable would only support charging function. -
Page 6: Transmission Distance
User Manual HUE03-4K Contact Closure Connection ※ Please check the positive and negative of LED before connect the cable. Otherwise, it might damage the device or lead no reaction. RJ45 Pinout (PIN TIA/EIA-568B) (PIN TIA/EIA-568B) Wire Color Orange-white Orange Green-white... -
Page 7: Rs232 Command Table
User Manual HUE03-4K RS232 Settings Terminal setting: [152000bps (8-N-1)] RS232 Command Table Entering the Command: Command+ △ (space)+Parameter+ Enter Command Description Parameter POWER△ 1/0 Power ON/OFF 1: ON; 0: OFF POWER△ ? Get Power status 1: HDMI PORT△1/2/3 Switch between HDMI/DP/USB-C Input Port... - Page 8 1080i 720p 59.94 576p 480p 59.94 *480i * Not all of devices’ 480i resolution are supported under HUE03-4K transmission due to the compatibility issue. Resolution Refresh Rate (Hz) 2560 × 1600 2560 × 1440 2048 × 1280 2048 × 1152 1920 ×...
-
Page 9: Package Contents
User Manual HUE03-4K 852 × 480 848 × 480 832 × 624 800 × 600 720 × 400 640 × 480 Optional Model WUSBC-2M Thunderbolt 3 USB-C Cable 2M (USB-C to USB-C) HE03LR-4K 4K HDMI CAT5e/6 Distribution 1 x 3 Chainable Receiver... -
Page 10: Specification
User Manual HUE03-4K Specification ITEM NO. HUE03T-4K HE03R-4K HE03LR-4K Support Compliance HDCP1.4, HDR 10, DP-ALT Mode Max. Video Resolution 4K@30Hz 4:4:4 12bit Max. Transmission Distance 120M over CAT5e, 140M over CAT6 cable Audio Format LPCM 7.1@192KHz, Dolby True HD, Dolby Atmos, DTS-HD MA, DTS:X Interfaces &...
