SECTION 2. DISPLAY

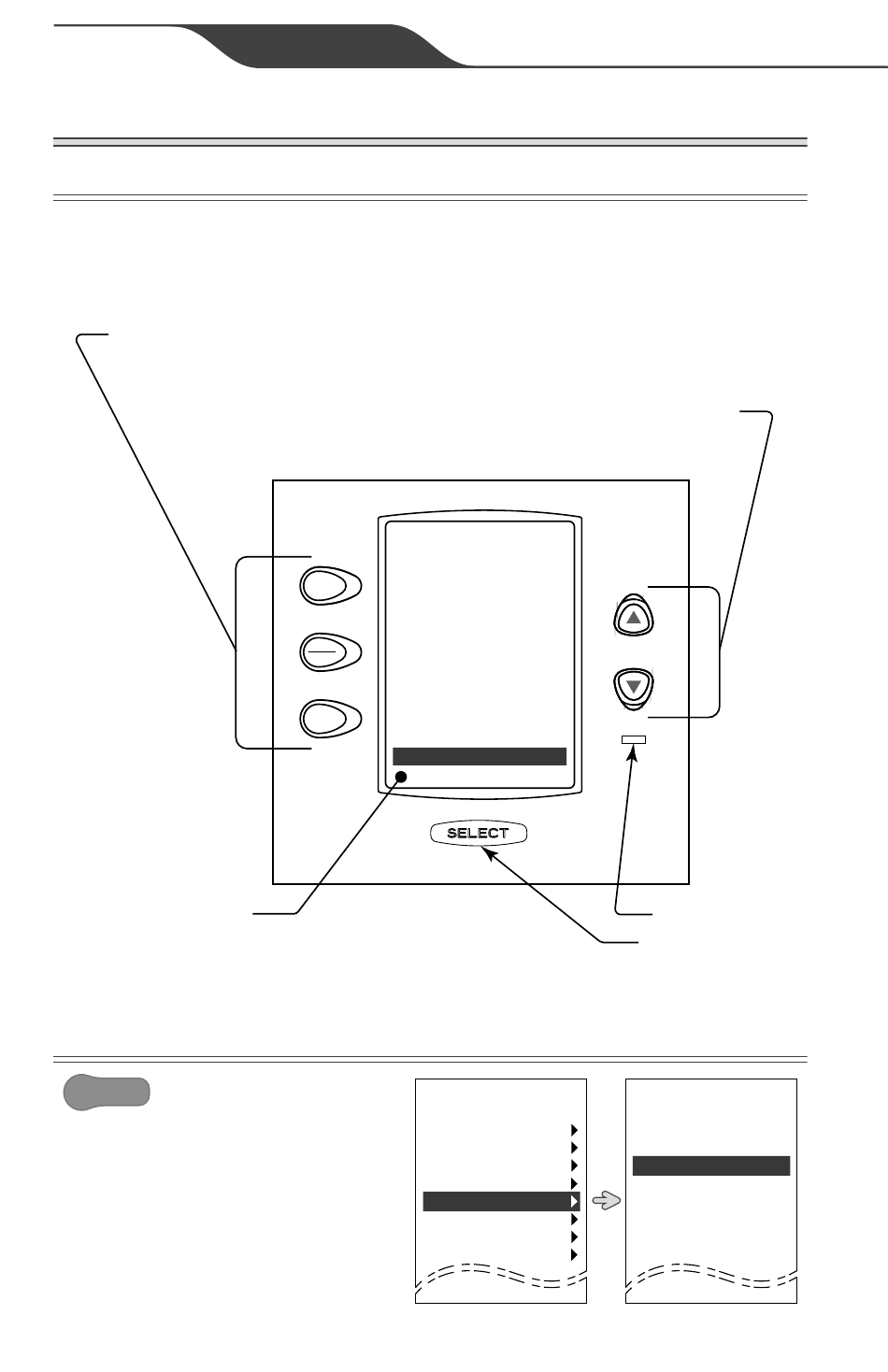

2.1 USER INTERFACE (UI)

The AquaLink RS One Touch
operates pool/spa equipment
through main system menus and/or
Program/Navigation Buttons
Access related menu/program
Page up and Page Down menus
Scroll within current menu (can be held for continuous scrolling)
Adjust selection incriments (i.e. letters or numbers) up or down

Display

2.2 DISPLAY LIGHT

Main System Menu
MENU/HELP
AQUALINK RS
Select to turn the display light on
or off or set a 2 minute time out.
FILTER PUMP OFF
EQUIPMENT ON/OFF
ONETOUCH ON/OFF
ENGLISH
BACK
DONE
06/02/03 MON
6:00 PM
AIR 79°
MENU / HELP
AquaLink RS OneTouch™ | Owner's Manual
®
automated programs. The function
of the various navigation buttons are
outlined below.
Up and Down Scroll Keys
AquaLink RS
06/02/14 Mon
6:00 PM
Filter Pump OFF
Air 79°
Equipment ON/OFF
Onetouch ON/OFF
Menu / Help
Toggle On/Off highlighted selection
Access sub-menu options
Access Via ONETOUCH ON/OFF
System Menu 2
MENU
Help
SPA MODE ON
Program
Set Temp
Set Time
CLEAN MODE OFF
Display Light
Lockouts
ALL OFF
Program Group
NEXT
System Setup
SYSTEM
Heater LED
Select Button
System Menu 3
Display Light
ONETOUCH4 OFF
Light ON
Light OFF
ONETOUCH5 OFF
2 Min Timeout
ONETOUCH6
OFF
NEXT
SYSTEM
