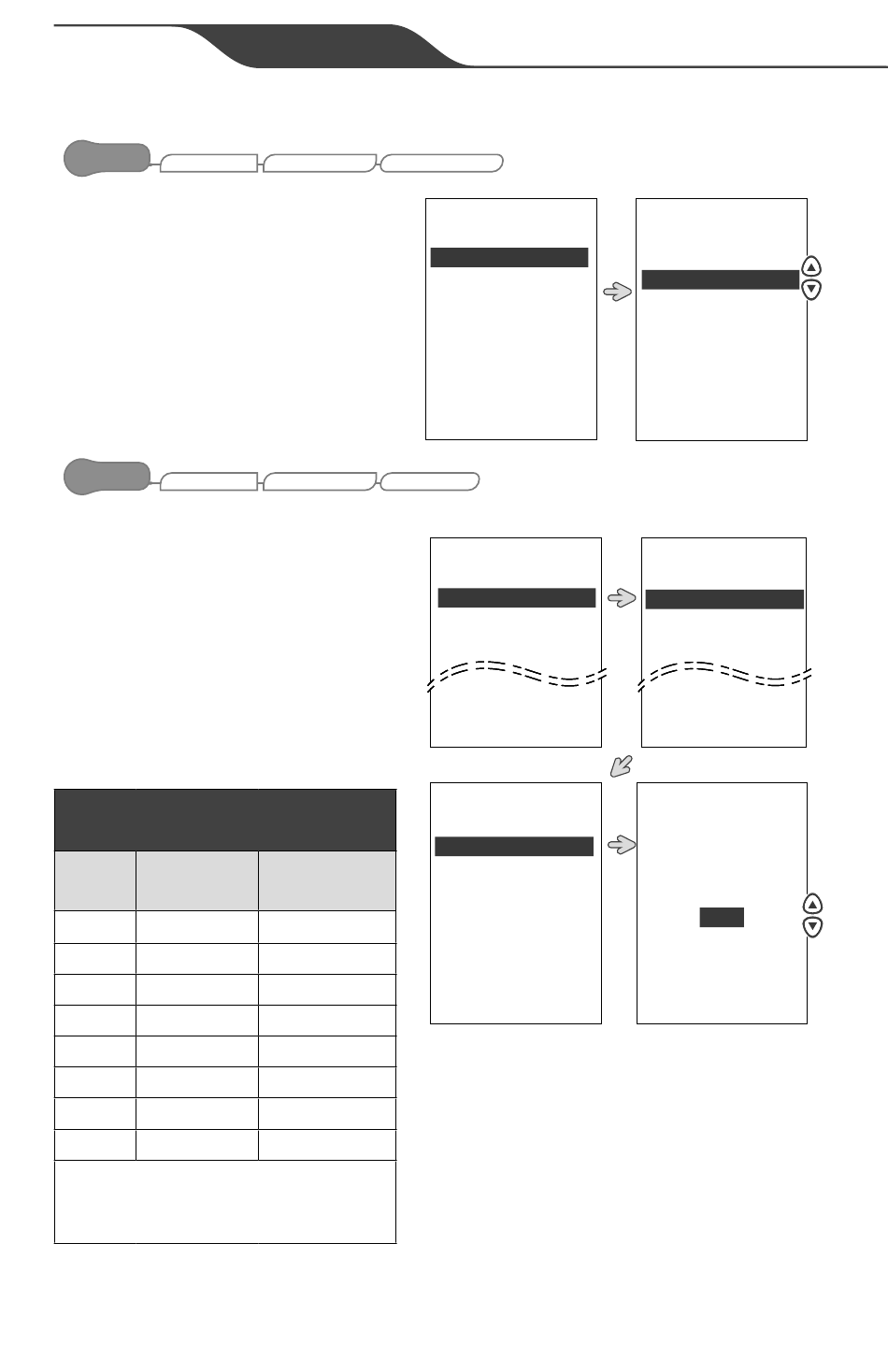

Page 22
4.3.3.(D)

MIN-MAX SETTINGS

MENU/HELP
SYSTEM SETUP
Select to set a minimum and
maximum global speed or flow.
• Scale is fixed at RPM for:
Jandy ePump™ DC,
®
IntelliFlo VS, IntelliPro
®
• Scale is fixed at GPM for:
IntelliFlo VF
4.3.3.(E) SPEED/LABELS
MENU/HELP
SYSTEM SETUP

4.3.3.(E-1) SET SPEEDS

Select to set and/or edit the
speeds for various pool functions.
There are 8 default preset labels
depending on your equipment
configuration. Each label can
also be changed, new labels can
be selected from a general list or
custom entry.
Default Speed Labels
for Combo or Pool/Spa only
Pool/Spa
Default
Only
1 POOL
2 SPEED 2
3 SPEED 3
*
4 SPEED 4
**
5 TEMP 1
6 TEMP 2
7 SPEED 7
***
8 INFLOOR
*CLEANER will display if dip S1-1 is on
**SPILLOVER will display if dip S1-3 is on
***SOLAR HEAT will display if dip S1-7 is on
***HEATPUMP will display if dip S2-7 is on
ENGLISH
VAR SPEED PUMP MIN-MAX SETTINGS
Pump Application
Pump 1
Pump 2
Pump 3
Pump 4
VS.
®
Highlight an
Item and press
SELECT
VAR SPEED PUMP SPEED/LABELS
Pump 1
Pump 2
Pump 3
Pool
Pool/Spa
Spa
Speed3
Combo
Speed4
POOL
Pool Heat
Spa Heat
SPA
Solar Heat
SPEED 3
*
SPEED 4
**
POOL HEAT
SPA HEAT
SPEED 7
***
INFLOOR
AquaLink RS OneTouch™ | Owner's Manual
®
Speeds/Labels
Highlight An
Item And Press
SELECT
Set Speeds
Pump 1
1725
2750
2750
2750
2250
2250
2750
Min-max Settings
Pump 1
Scale Rpm
Min Limit 600
Max Limit 3450
Highlight an
Item and press
SELECT
Speed/Labels
Pump 1
Set Speeds
Label Speeds
Assign Speeds
Highlight An
Item And Press
SELECT
Adjust Pool
(Rpm)
Pool
1725
Highlight An
Item And Press
SELECT
