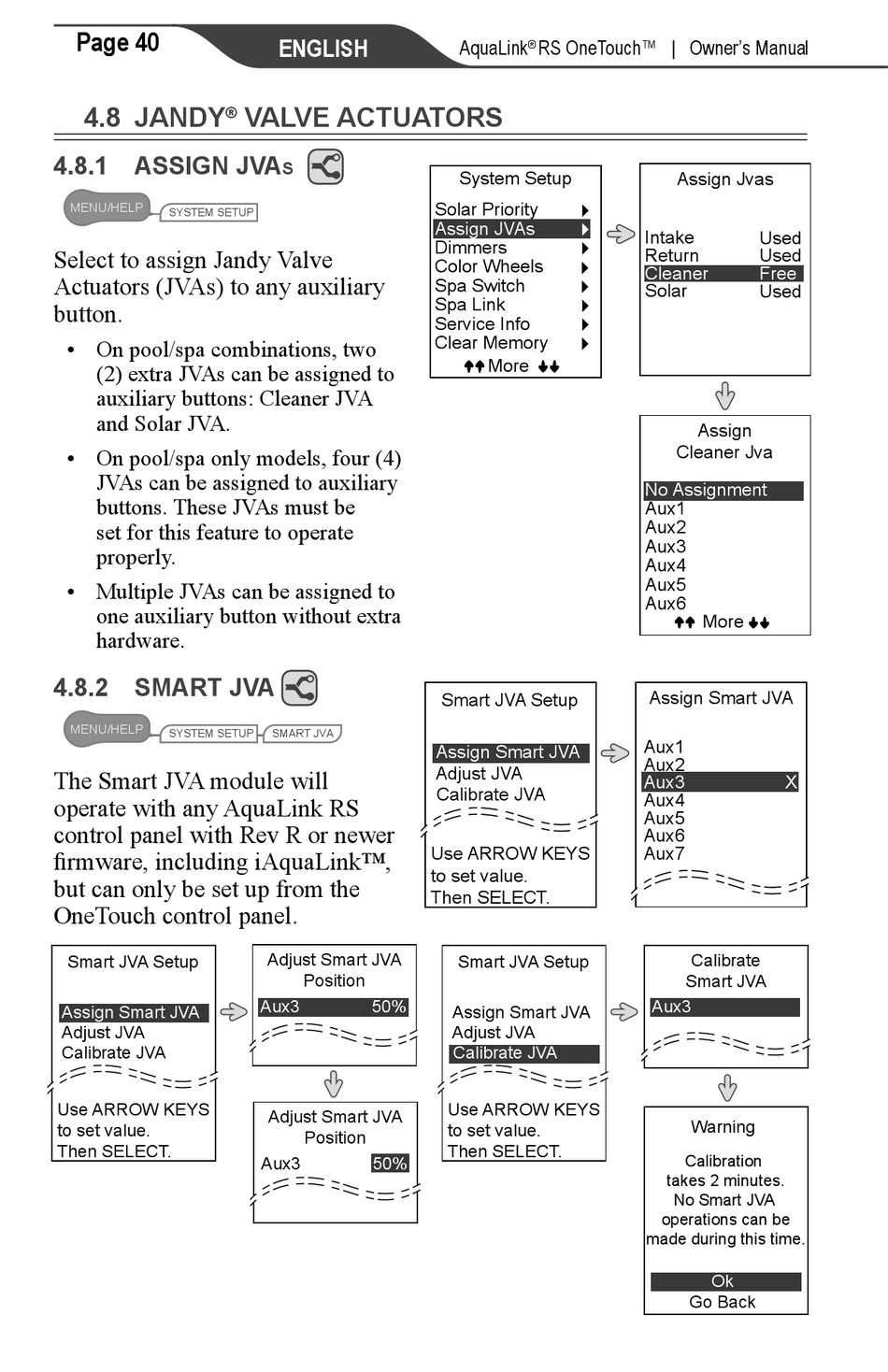

Page 40

4.8 JANDY

4.8.1 ASSIGN JVA
MENU/HELP
SYSTEM SETUP
Select to assign Jandy Valve
Actuators (JVAs) to any auxiliary
button.
• On pool/spa combinations, two
(2) extra JVAs can be assigned to
auxiliary buttons: Cleaner JVA
and Solar JVA.
• On pool/spa only models, four (4)
JVAs can be assigned to auxiliary
buttons. These JVAs must be
set for this feature to operate
properly.
• Multiple JVAs can be assigned to
one auxiliary button without extra
hardware.

4.8.2 SMART JVA

MENU/HELP
SYSTEM SETUP
The Smart JVA module will
operate with any AquaLink RS
control panel with Rev R or newer
firmware, including iAquaLink™,
but can only be set up from the
OneTouch control panel.
Smart JVA Setup
Assign Smart JVA
Adjust JVA
Calibrate JVA
Use ARROW KEYS
to set value.
Then SELECT.
ENGLISH

VALVE ACTUATORS

®
s
SMART JVA
Adjust Smart JVA
Position
Aux3
50%
Adjust Smart JVA
Position
Aux3
50%
AquaLink
RS OneTouch™ | Owner's Manual
®
System Setup
Solar Priority
Assign JVAs
Dimmers
Color Wheels
Spa Switch
Spa Link
Service Info
Clear Memory
More
Smart JVA Setup
Assign Smart JVA
Adjust JVA
Calibrate JVA
Use ARROW KEYS
to set value.
Then SELECT.
Smart JVA Setup
Assign Smart JVA
Adjust JVA
Calibrate JVA
Use ARROW KEYS
to set value.
Then SELECT.
Assign Jvas
Intake
Used
Return
Used
Cleaner
Free
Solar
Used
Assign
Cleaner Jva
No Assignment
Aux1
Aux2
Aux3
Aux4
Aux5
Aux6
More
Assign Smart JVA
Aux1
Aux2
Aux3
X
Aux4
Aux5
Aux6
Aux7
Calibrate
Smart JVA
Aux3
Warning
Calibration
takes 2 minutes.
No Smart JVA
operations can be
made during this time.
Ok
Go Back
