Move V-glass plate

Move V-glass plate

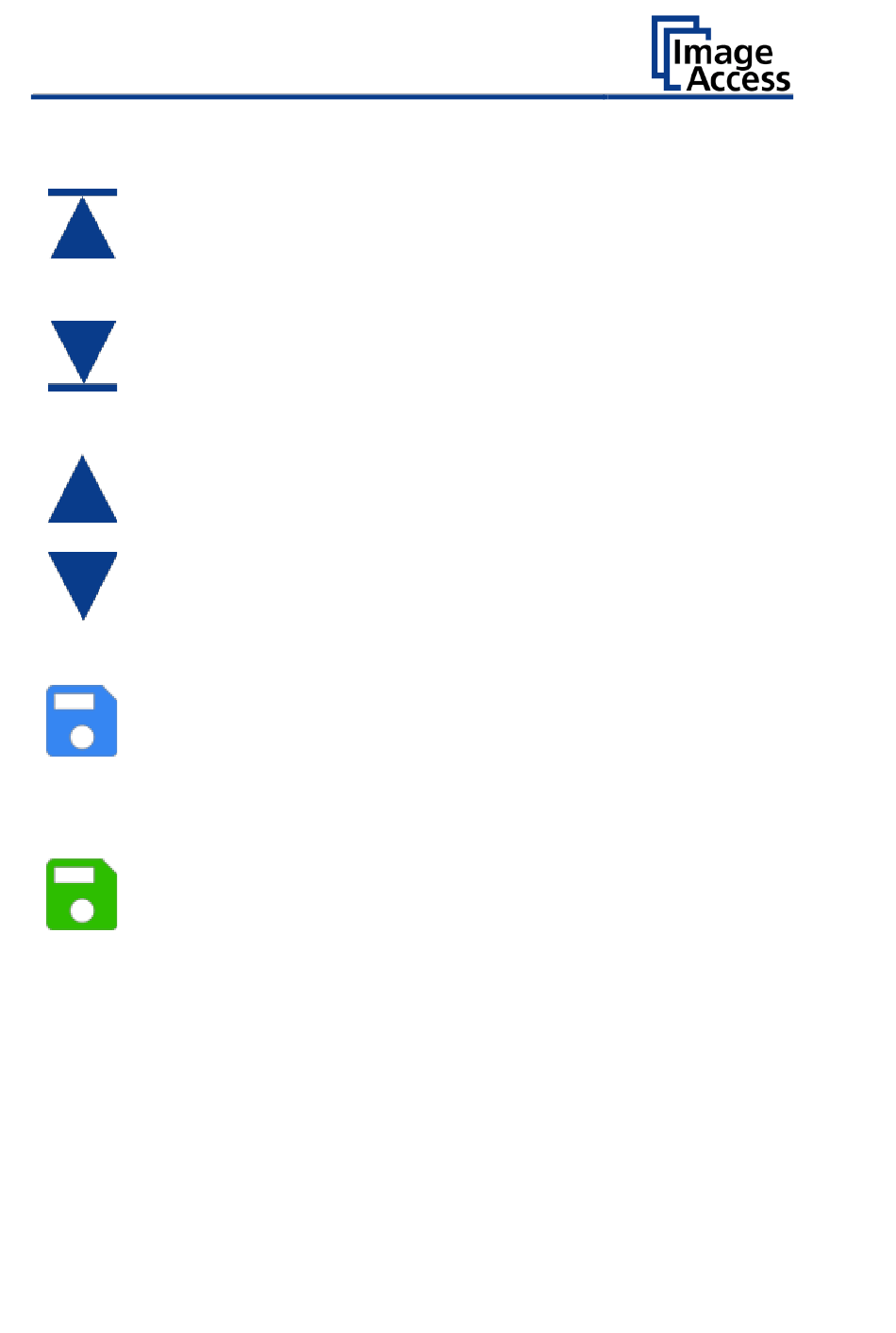

➢ Use the MAX button to move the glass plate holder to the
highest position.
➢ Use the MIN button to move the glass plate holder to the
lowest position.
➢ Use these buttons to move the glass plate up or down in
small steps. The glass plate only moves as long as the
button is pressed.
➢ Save the opening position of the glass plate by pressing the
SAVE OPEN button. This can be any manually moved
position. When the glass plate is exactly at this position, the
button turns grey.
➢ Save the opening position of the glass plate by pressing the
SAVE SCAN button. This position is selected manually for
each book. If it is moved further down, the contact pressure
on the book pages increases. When the glass plate is exactly
in this position, the button turns grey.
