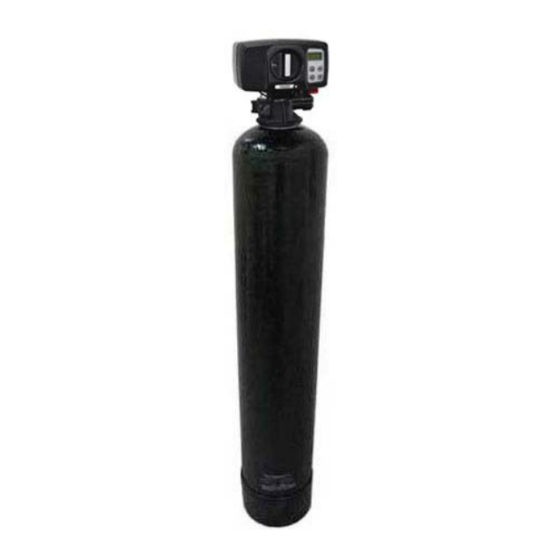

Pro-OX 1650 Iron Filter Installation & Start-Up
Guide
Thank you for purchasing a Clean Water System! With proper installation and a
little routine maintenance your system will be providing iron free water for
many years.
Please review this start‐up guide entirely before beginning to install your system,
and follow the steps outlined for best results.
USE PAPER MASK AND VENTILATE AREA TO AVOID BREATHING DUST DURING
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us:
support@cleanwaterstore.com
See more information on our website:
PRO-OX MEDIA CONTAINS DUST.
INSTALLATION
www.cleanwaterstore.com/resources
Clean Water Made Easy
http://www.cleanwaterstore.com
Advertisement
Related Manuals for Clean Water Systems Pro-OX 1650
Summary of Contents for Clean Water Systems Pro-OX 1650
- Page 1 Clean Water Made Easy http://www.cleanwaterstore.com Pro-OX 1650 Iron Filter Installation & Start-Up Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing iron free water for many years.
-
Page 2: Table Of Contents
Pro-OX 1650 Iron Filter Installation & Startup Guide Table of Contents Packing List ..............................3 Pre-Installation ............................. 4 Best Practices for Piping & Drain Installation ....................4 How Your Iron Filter Works ......................... 5 Assembly and Installation Instructions ......................8 Programming .......................... -
Page 3: Packing List
Pro-OX 1650 Iron Filter Installation & Startup Guide Packing List 0.75 Cubic Foot Size System Quantity (1): CWS 165 control valve w/ bypass assembly and pipe connector kit (1” or 3/4”) Quantity (1): 8” x 44” standard filter tank with distributor tube Blue media funnel for adding Pro-OX media 12 lbs. -
Page 4: Pre-Installation
A minimum of 20 PSI is required; maximum pressure is 90 PSI. 4. Get all of your plumbing parts together before beginning installation. Installation typically takes 3 to 5 hours, though the Pro-OX 1650 iron filter must also be allowed to run through a complete backwash and rinse cycle after installation. -
Page 5: How Your Iron Filter Works
Pro-OX 1650 Iron Filter Installation & Startup Guide 7. The drain line tubing (not supplied) is connected to a drain from the drain outlet using flexible 1/2” ID tubing. Note that the drain can run up above the CWS 165 control valve and into a drain—it does not have to drain down, as the filter backwashes under line pressure from your well pump. - Page 6 Pro-OX 1650 Iron Filter Installation & Startup Guide Fig. 2—Typical Pro-OX 1650 iron filter piping installation with ball valve and hose bib after filter www.cleanwaterstore.com Rev 080814 Page 6...
- Page 7 Pro-OX 1650 Iron Filter Installation & Startup Guide Fig 3—CWS 165 valve from the rear showing the inlet (left) and outlet (right) end-connector fittings (1” or 1-1/4” NPT in Noryl plastic). Brass end-connectors are also available for connecting to copper tubing.
-
Page 8: Assembly And Installation Instructions
Pro-OX 1650 Iron Filter Installation & Startup Guide Assembly and Installation Instructions 1. By hand, unscrew the entire CWS 165 control valve from top of tank if it was shipped screwed on. Place distributor tube in tank if not already inside. Make sure the tube is capped, or wrap the top of the tube with electrical or duct tape. - Page 9 Pro-OX 1650 Iron Filter Installation & Startup Guide Fig. 5—CWS 165 bypass and pipe connectors (In service mode) 10. Lubricate the bypass valve O-rings with some vegetable oil or silicone grease and connect the bypass assembly to the control valve by sliding the bypass valve firmly into its body.
-
Page 10: 16. Programming
Pro-OX 1650 Iron Filter Installation & Startup Guide system to work as an iron filter. There are a few settings that must be changed before the system can be put into service for this purpose. 16. PROGRAMMING: a. First, press the menu button labeled “... - Page 11 Pro-OX 1650 Iron Filter Installation & Startup Guide is a good setting. Press the down button again to proceed. i. Step 7: BRINE—this stands for Brine Draw. This does not apply to an iron filter, so lower this setting to the absolute minimum value, which is 3. The display should read 3 MIN, meaning the cycle will be 3 minutes long.
-
Page 12: Troubleshooting The Pro-Ox 1650 Iron Filter
Pro-OX 1650 Iron Filter Installation & Startup Guide Troubleshooting the Pro-Ox 1650 Iron Filter Measure the backwash flow rate by putting the system into a backwash mode and putting the drain tube into a 5 gallon bucket and timing the flow rate. A 0.75 cubic foot system should flow at 5 gallons in one minute, so the 5 gallon bucket should fill in one minute.
