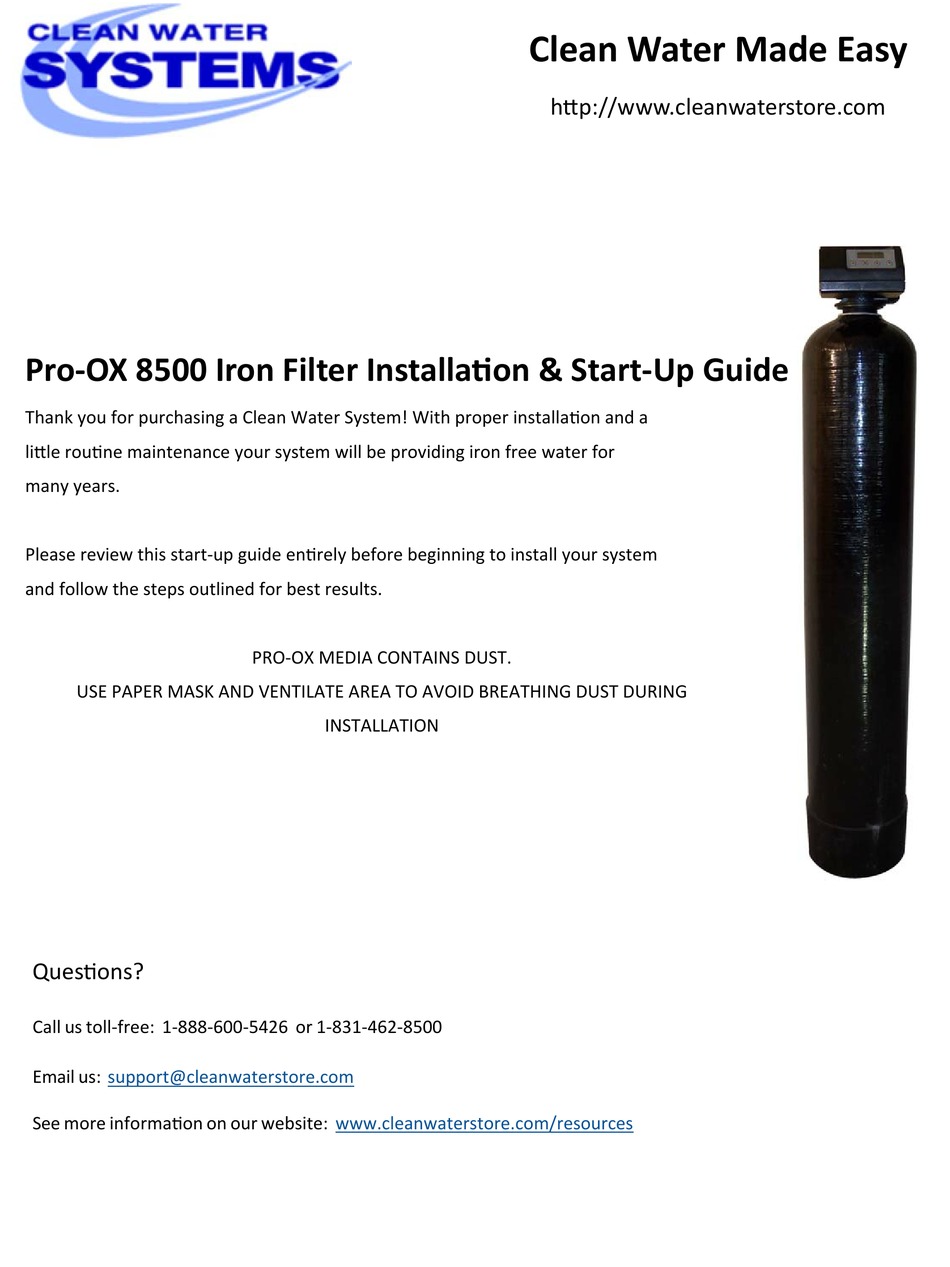

Pro‐OX 8500 Iron Filter Installa on & Start‐Up Guide
Thank you for purchasing a Clean Water System! With proper installa on and a
li le rou ne maintenance your system will be providing iron free water for
many years.
Please review this start-up guide en rely before beginning to install your system
and follow the steps outlined for best results.
USE PAPER MASK AND VENTILATE AREA TO AVOID BREATHING DUST DURING
Ques ons?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us:
support@cleanwaterstore.com
See more informa on on our website:
PRO-OX MEDIA CONTAINS DUST.
INSTALLATION
www.cleanwaterstore.com/resources
Clean Water Made Easy
h p://www.cleanwaterstore.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clean Water Systems Pro-OX 8500
Summary of Contents for Clean Water Systems Pro-OX 8500
- Page 1 Clean Water Made Easy h p://www.cleanwaterstore.com Pro‐OX 8500 Iron Filter Installa on & Start‐Up Guide Thank you for purchasing a Clean Water System! With proper installa on and a li le rou ne maintenance your system will be providing iron free water for many years.
-
Page 2: Table Of Contents
Assembly and Installa on Instruc ons ......................7 Programming ........................... 9 Maintaining Your Pro-OX Filter System ..................... 11 Troubleshoo ng the Pro-OX 8500 Iron Filter .................... 11 What To Do If Your Tank Does Not Sit Level On the Floor ............11 www.cleanwaterstore.com... -
Page 3: Packing List
Pro‐OX 8500 Iron Filter Installa on & Startup Guide Packing List Iron Filter 1.0 Cubic Foot Size Quan ty 1 Canature 85HE control valve with bypass assembly and pipe connector kit (1” or 3/4”)* Quan ty 1 10” x 44” standard filter tank with distributor tube Blue media funnel for adding Pro-OX media 12 lbs gravel Iron Filter 1.5 Cubic Foot Size... -
Page 4: Pre-Installa On
Pro‐OX 8500 Iron Filter Installa on & Startup Guide Pre‐Installa on 1. Review your packing list and make sure you have received all the parts before beginning installa on. 2. If you will be turning off the water to your house and you have an electric water heater, shut off the power to the water heater before beginning installa on in case the water heater is accidentally drained. -
Page 5: How Your Iron Filter Works
Pro‐OX 8500 Iron Filter Installa on & Startup Guide 85 HE has quick-release couplings that make it easy to put the iron filter on bypass and remove the filter system from the piping. 6. The drain line tubing (not supplied) is connected to a drain from the drain outlet using flexible ½” ID tubing. - Page 6 Pro‐OX 8500 Iron Filter Installa on & Startup Guide Fig. 2 Typical Pro‐OX piping installa on with ball valve and hose bib a er the filter. Filter strainer is — op onal, and useful if there is sand or grit in the water. The 25/1 micron filter a er is op onal, and used when there is very fine sediment or colloidal par cles over 1 micron present.
-
Page 7: Assembly And Installa On Instruc Ons
Pro‐OX 8500 Iron Filter Installa on & Startup Guide Assembly and Installa on Instruc ons 1. Unscrew by hand the en re Canature 85HE control valve from top of tank if it was shipped screwed on. Make sure distributor tube is capped; if it is not, wrap it with electrical or duct tape. This will ensure you don’t accidentally pour gravel or Pro-OX media into the distributor tube. - Page 8 Pro‐OX 8500 Iron Filter Installa on & Startup Guide 7. See how the Canature bypass valve is connected. Items 2 are the pipe connectors, and items 3 are the red clips that hold the pipe connectors to the bypass valve. To put the system into bypass or service mode, don’t remove the red clips, just turn the red knobs (items 1).
-
Page 9: Programming
Pro‐OX 8500 Iron Filter Installa on & Startup Guide 11. Connect some flexible tubing from the drain connec on on the Canature 85HE control valve to a suitable drain such as a sep c tank or sewer drain. It is OK to run the drain line up and over the Canature 85HE, up to 4 feet above the top of the tank. - Page 10 Pro‐OX 8500 Iron Filter Installa on & Startup Guide 14. Press the Manual Regen bu on for 3 seconds, un l it beeps. This will begin a manual backwash (regenera on) of your system. 15. Now you can slowly turn the bypass valve to the service posi on. Do NOT remove the red clips on the bypass valve in order to do so.
-
Page 11: Maintaining Your Pro-Ox Filter System
Pro‐OX 8500 Iron Filter Installa on & Startup Guide Maintaining Your Pro‐OX Filter System Your Pro-OX 8500 iron filter requires very li le maintenance. Simply replace the Pro-OX media every 6-10 years for best results. If your water has a lot of hydrogen sulfide odor or iron and manganese levels over 10 PPM (parts per million), a chlorine feed pump may be needed to inject a small amount of chlorine before the well pressure tank and iron filter.
