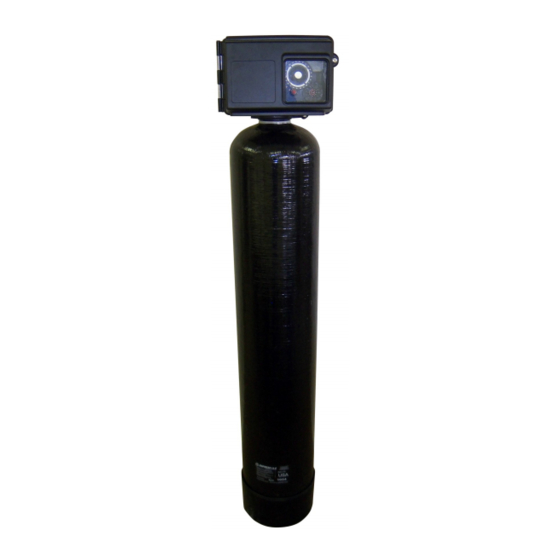

Pro-OX 2510 Iron Filter Installation & Start-
Up Guide
Thank you for purchasing a Clean Water System! With proper installation and a
little routine maintenance your system will be providing iron free water for many
years.
Please review this start‐up guide entirely before beginning to install your system,
and follow the steps outlined for best results.
USE PAPER MASK AND VENTILATE AREA TO AVOID BREATHING DUST DURING
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us: support@cleanwaterstore.com
See more information on our website: www.cleanwaterstore.com/resources
PRO-OX MEDIA CONTAINS DUST.
INSTALLATION
Clean Water Made Easy
http://www.cleanwaterstore.com
Advertisement
Table of Contents
Related Manuals for Clean Water Systems Pro-OX 2510
Summary of Contents for Clean Water Systems Pro-OX 2510

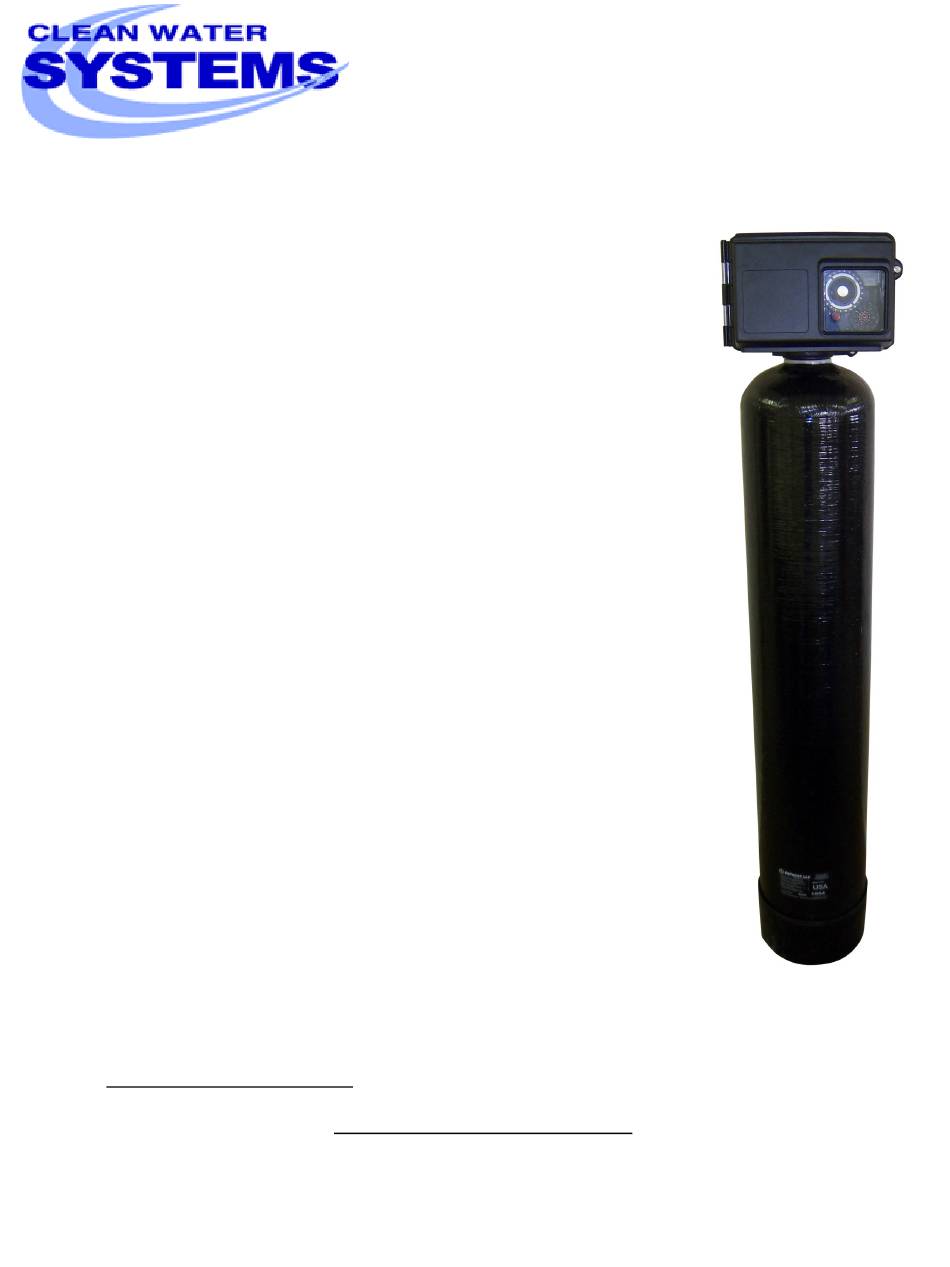

- Page 1 Clean Water Made Easy http://www.cleanwaterstore.com Pro-OX 2510 Iron Filter Installation & Start- Up Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing iron free water for many years.
-
Page 2: Table Of Contents
Pro-OX 2510 Iron Filter Installation & Startup Guide Table of Contents Packing List ............................3 Pre-Installation............................ 4 Best Practices for Piping & Drain Installation ..................4 How Your Pro-OX Iron Filter Works ...................... 5 Fig. 1—Pro-OX Iron Filter Water Flow Diagram ................. 5 Fig. -
Page 3: Packing List
Pro-OX 2510 Iron Filter Installation & Startup Guide Packing List Each system comes with the following: Fleck 2510 control valve with pipe connector kit (either 1”or ¾”) Fleck 2510 bypass valve Enpress filter tank with distributor tube installed Media funnel In addition, each system comes with the following, depending on the model ordered: 1.0 Cubic Foot Pro-OX:... -
Page 4: Pre-Installation
Pro-OX 2510 Iron Filter Installation & Startup Guide Pre-Installation Review your packing list and make sure you have received all the parts before beginning installation. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installation in case water heater is accidentally drained. -
Page 5: How Your Pro-Ox Iron Filter Works
Pro-OX 2510 Iron Filter Installation & Startup Guide How Your Pro-OX Iron Filter Works See Fig. 1. Water enters the top of the filter tank and flows down through the media and up the distribu‐ tor tube. During backwash, the water flow is reversed and water flows down the distributor tube and up through the media, lifting and expanding the Pro-OX media and washing out rust and sediment to drain. -
Page 6: Fig. 2-Typical Pro-Ox Iron Filter Installation
Pro-OX 2510 Iron Filter Installation & Startup Guide Fig. 2—Typical Pro-OX Iron Filter Installation www.cleanwaterstore.com Rev 120215 Page 6... -
Page 7: Assembly And Installation Instructions
Pro-OX 2510 Iron Filter Installation & Startup Guide Assembly and Installation Instructions 1. Unscrew by hand the entire Fleck 2510 control valve from top of tank if it was shipped screwed on. Place distributor tube in tank if not already inside tank. If not already done, make sure blue cap is on top of distributor tube, or wrap the top of distributor tube with electrical or duct tape. - Page 8 Pro-OX 2510 Iron Filter Installation & Startup Guide 10. Plug in your Fleck 2510 control valve to an outlet. Your Fleck 2510 control valve is already pre- programmed. Adjust the days of the week to backwash every 2 to 3 days for best results.
-
Page 9: Maintaining Your 2510 Pro-Ox Iron Filter System
Pro-OX 2510 Iron Filter Installation & Startup Guide although you do not want to see a large amount of media coming out, which would mean you have very high water pressure, or the drain flow for the Fleck 2510 is missing. - Page 10 Pro-OX 2510 Iron Filter Installation & Startup Guide Initial Backwash Media Lifted Into Control Head Sometimes, when doing the Initial Backwash, the media gets lifted up into the control head. You can tell this happened because you will have little or no flow, either going out to drain while in the backwash positon, or when in the service positon.
- Page 11 Pro-OX 2510 Iron Filter Installation & Startup Guide WARNING: Don’t Over-Tighten 2510 Control When Installing on Tank Tighten with hands, there is no need for a pipe wrench or other wrench. The control valve is sealed with the o-ring on the base of the control valve. Once you hand-tighten it so the o-ring has sealed against the top of the tank, continue to tighten for approximately another ¼...
