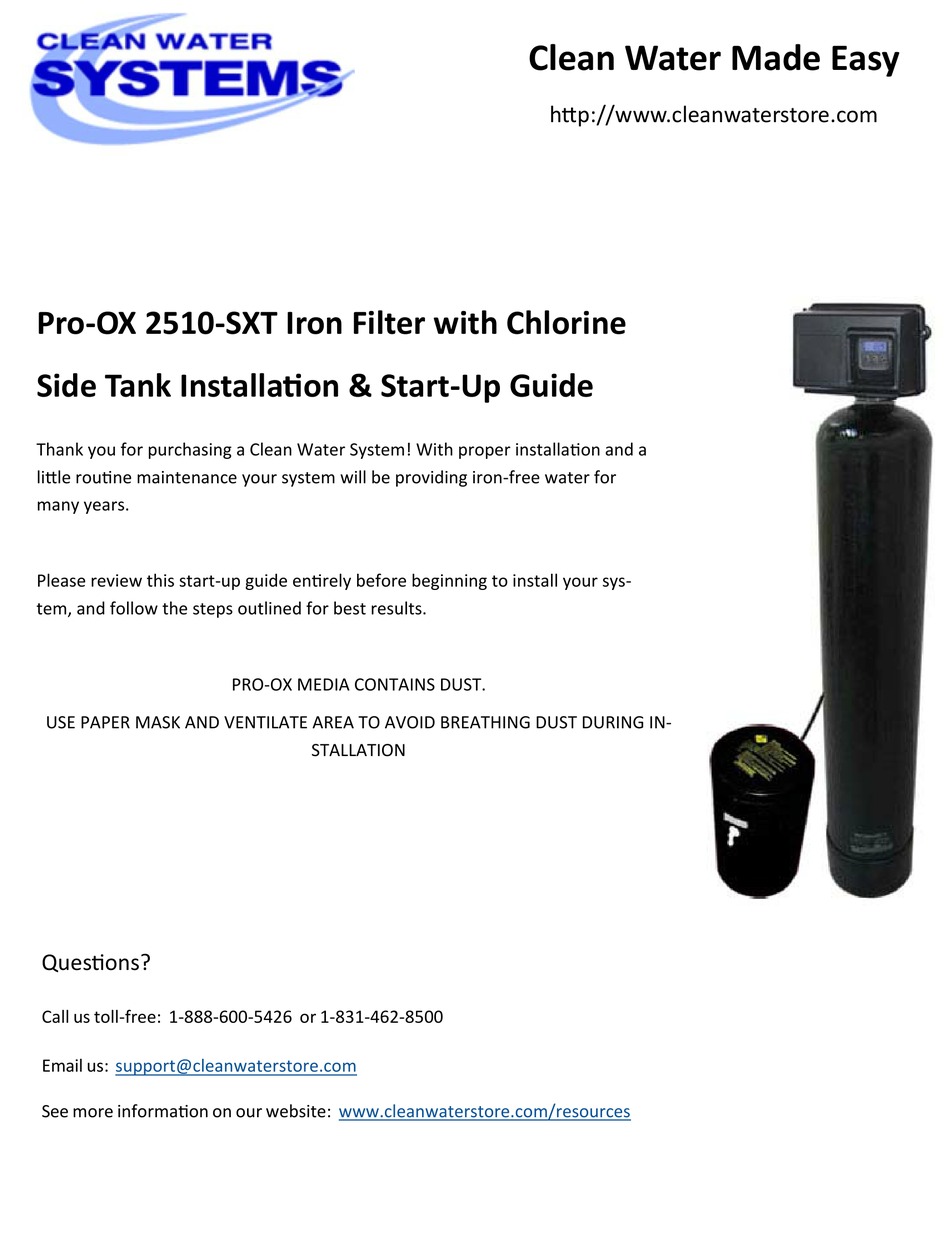

Pro‐OX 2510‐SXT Iron Filter with Chlorine
Side Tank Installa on & Start‐Up Guide
Thank you for purchasing a Clean Water System! With proper installa on and a
li le rou ne maintenance your system will be providing iron‐free water for
many years.
Please review this start‐up guide en rely before beginning to install your sys‐
tem, and follow the steps outlined for best results.
USE PAPER MASK AND VENTILATE AREA TO AVOID BREATHING DUST DURING IN‐
Ques ons?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us:
support@cleanwaterstore.com
See more informa on on our website:
PRO‐OX MEDIA CONTAINS DUST.
STALLATION
www.cleanwaterstore.com/resources
Clean Water Made Easy
h p://www.cleanwaterstore.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clean Water Systems Pro-OX 2510-SXT
Summary of Contents for Clean Water Systems Pro-OX 2510-SXT
- Page 1 Clean Water Made Easy h p://www.cleanwaterstore.com Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Start‐Up Guide Thank you for purchasing a Clean Water System! With proper installa on and a li le rou ne maintenance your system will be providing iron‐free water for many years.
-
Page 2: Table Of Contents
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Table of Contents Packing List........................................3 Pre‐Installa on ........................................4 Best Prac ces for Piping & Drain Installa on ..............................4 How Your Iron Filter Works ....................................5 Fig. -
Page 3: Packing List
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Packing List 1.0 Cubic Foot System Quan ty Descrip on Fleck 2510‐SXT backwash control valve and bypass valve Pipe connector kit (1” or 3/4”) Enpress filter tank with distributor tube Media funnel 12 lbs. -
Page 4: Pre-Installa On
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Pre‐Installa on 1. Review your packing list and make sure you have received all the parts before beginning installa on. 2. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installa on in case water heater is accidentally drained. -
Page 5: How Your Iron Filter Works
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide How Your Iron Filter Works See Fig. 1. Water enters the top of your Pro‐OX iron filter tank and flows down through the media and up the distributor tube. - Page 6 Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Fig. 2—Typical Pro‐OX 2510‐SXT iron filter piping installa on with ball valve and hose bib a er filter www.cleanwaterstore.com Rev 032114 Page 6...
- Page 7 Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Fig. 3—Fleck 2510‐SXT from the rear, showing the inlet and outlet end‐connector fi ngs (1” or 1.25” NPT in Noryl plas c). Brass end‐connectors are also available for connec ng to copper tubing. 3/8”...
-
Page 8: Assembly And Installa On Instruc Ons
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Assembly and Installa on Instruc ons 1. Unscrew by hand the en re Fleck 2510‐SXT control valve from top of tank if it was shipped screwed on. Place distributor tube in tank if not already inside tank. - Page 9 Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide other tool. Do not over‐ ghten. 8. See the bypass image below. Note that the detached threaded pieces are the pipe connectors, and the other end is what gets a ached to the control valve. The nuts and steel brackets are what join the pipe connectors to the bypass.
- Page 10 Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide 10. Make sure the bypass valve is in the bypass posi on when star ng the installa on. Follow the IN and OUT arrows on the bypass valve and control valve for proper connec on of in and out water piping. Leave in the bypass posi on for now.
-
Page 11: A Aching Tubing To The Potassium Permanganate Solu On Tank & Brine Valve
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide A aching Tubing to the Potassium Permanganate Solu on Tank & Brine Valve Fig. 8—Brass Brine Injector Nut with White Compression Ring 1. Begin by sliding the brass brine injector nut on to the tubing by pu ng the tubing through the non‐ threaded side of the nut. - Page 12 Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide 3. Add enough clean water to the pot perm solu on tank to bring the water level about 1” above the felt pad. Add one 2 or 5‐lb jug of potassium permanganate granules to the potassium perm tank by pouring it directly on top of the white felt pad.
-
Page 13: Programming
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Programming Non‐Metered Valve User Programming 1. Your Pro‐OX 2510‐SXT control valve is already pre‐programmed. All you need to do is to set the me of day, and then set the number of days the Pro‐OX filter will run before it backwashes and regenerates au‐ toma cally. -
Page 14: Pre-Use Regenera On Cycle
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide se ng to the desired se ng. Press the Extra Cycle bu on to accept the se ng and move to the next parameter. a. BW – Backwash: Set to 8 to 10 minutes. b. -
Page 15: Maintaining Your Pro-Ox 2510-Sxt Iron Filter System
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Maintaining Your Pro‐OX 2510‐SXT Iron Filter System Adding Potassium Permanganate Add one 5‐lb jug of potassium permanganate every 3 ‐ 4 months. Check the potassium permanganate solu‐ on tank and when you see the mound of potassium permanganate disappear a er a few months, just add another 5‐lb jug. -
Page 16: Using A Chlorine Feed To Regenerate The Pro-Ox Media
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Using a Chlorine Feed to Regenerate the Pro‐OX Media In place of intermi ent regenera on with potassium permanganate, the water can be chlorinated prior to the Pro‐OX filter in a process called “con nuous regenera on.” In order for the chlorine to work as a replacement for potassium permanganate there must be sufficient chlorine residual in the water and there must be a long enough contact me a er the chlorine has been in‐... - Page 17 Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Fig. 9—Typical Pro‐OX Iron Filter Installa on with Chlorine Pump, Contact Tank, and Op onal Carbon Filter www.cleanwaterstore.com Rev 032114 Page 17...
-
Page 18: Chlorine Calcula On And Se Ng The Metering Pump
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Se ng up a Chlorine Feed Pump In Fig. 9 the chlorine metering pump is 220v and is wired to the same 220v circuit as the well pump. When the well pump turns on, the chlorine metering pump also turns on and injects 1 to 2 ppm or chlorine for eve‐... -
Page 19: Troubleshoo Ng Your Pro-Ox 2510-Sxt Iron Filter System
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Troubleshoo ng Your Pro‐OX 2510‐SXT Iron Filter System PROBLEM/SYMPTOM SOLUTION Iron or manganese or sulfur odor in No permanganate in Add permanganate powder to tank and treated water a er Pro‐OX Filter solu on tank regenerate Pro‐OX filter Not backwashing o en... -
Page 20: More Troubleshoo Ng Tips
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Pink water (permanganate) in household Inadequate backwash of Make sure Pro‐OX Filter has adequate water Pro‐OX Filter backwash at a good pressure and flow rate Clogged brine injector Clean or replace injector Inadequate rinse me Set rinse cycle to longer me... -
Page 21: System Not Backwashing Properly
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide System Not Backwashing Properly Measure the backwash flow rate by pu ng the system into a backwash mode and pu ng the drain tube into a 5 gallon bucket and ming the flow rate. A 0.75 cubic foot system should flow at 5 gallons in one minute, so the 5 gallon bucket should fill in one minute. -
Page 22: Permanganate Tank Not Filling With Permanganate Solu On
Pro‐OX 2510‐SXT Iron Filter with Chlorine Side Tank Installa on & Startup Guide Permanganate Tank Not Filling with Permanganate Solu on Potassium permanganate is a powder that is poured on top of the “grid pad” in the pot perm tank. During the brine fill cycle, water is added to the pot perm tank to make up the pot perm solu on required for the next regenera on.
