MR6322/6322A/6342/6342A

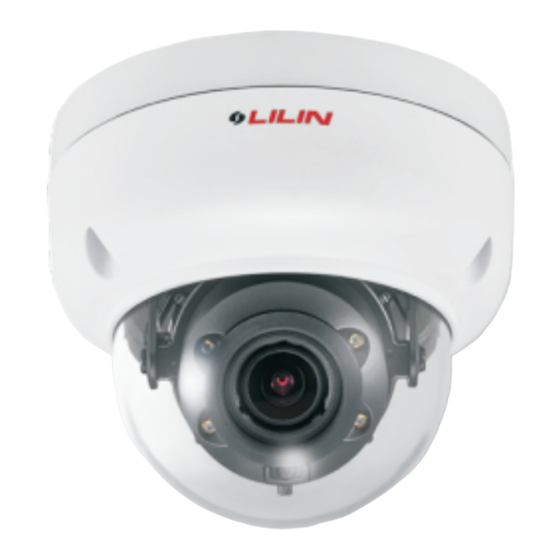

D/N 2MP(4MP) HD Dome IR IP Camera
MR6422X/6422AX/6442X/6442AX
D/N 2MP(4MP) HD Vari-Focal Dome IR IP Camera
SR6422X
D/N 1080P60 HD Vari-Focal Dome IR IP Camera
Quick Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the MR6322 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lilin MR6322

  • Page 1 MR6322/6322A/6342/6342A D/N 2MP(4MP) HD Dome IR IP Camera MR6422X/6422AX/6442X/6442AX D/N 2MP(4MP) HD Vari-Focal Dome IR IP Camera SR6422X D/N 1080P60 HD Vari-Focal Dome IR IP Camera Quick Installation Guide...
  • Page 2 CAUTION  Do not drop or strike this equipment  Do not install the equipment near any naked flames or heat sources  Do not expose this unit to rain, moisture, smoke or dust  Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poorly ventilated places.
  • Page 3: Product Overview

    Product Overview Unit: mm ① Bottom bracket ② Upper cover ③ Transparent cover ④ Lens ⑤ RJ-45 Ethernet connector (supports PoE) ⑥ Power jack (DC12V ±10%) ⑦ Audio in/out terminal (available only for A & AX suffixes) ⑧ Alarm in/out terminal (available only for A & AX suffixes) ⑨...
  • Page 4: Installation

    Installation 1. Retrieve the camera and remove the bottom bracket from the upper cover with a hex key (FIG.1). 2. Use the included screws (M4.0x25) through the holes marked as “a,” and fix the camera in the desired location (FIG.2 & FIG.3).
  • Page 5 3. Adjust the pan, tilt, and azimuth of the camera to the desired location (FIG.4).  Adjust the zoom and focus for the best image, and tighten the screws after the adjustment for manual varifocal models (FIG.4).
  • Page 6 4. Attach the Ethernet and power cables to the RJ-45 connector and the DC-in connector, respectively (FIG.5).  Connect the RJ-45 Ethernet cable with a waterproof connector First, remove the waterproof connector and unscrew the waterproof nut. Insert the Ethernet cable and connect to the RJ-45 connector with proper tools (FIG.6).
  • Page 7 5. Secure the upper cover to the bottom bracket with a hex key (FIG.8). Wall Mount IR Adjustment [for HD VF IR IP cameras] When wall mounting the Varifocal Dome IR Camera, remember to adjust the infrared beam (FIG.9).
  • Page 8 System Architectures To connect HD IP cameras to the network, please follow one of the system architectures: (1). Use a DC12V power adapter and a network switch to connect to the network. DC12V Power Supply (2). Use a PoE network switch to connect to the network. (3).
  • Page 9: Emergency Factory Default

    MJPEG or H.264 Full HD video. When you log in to the IP camera using Internet Explorer, a security warning dialog box will prompt the installation of the LILIN Universal ActiveX. Click Install to download and install the required software.
  • Page 10 IPScan software from the installation CD, and paste to your computer. Alternatively, you can execute the IPScan software from the installation CD, or download the software from the Merit LILIN website (www.meritlilin.com). To change the settings of the IP address, subnet mask, gateway, or HTTP port, you can follow the steps below: 1.
  • Page 11 Configuring IP Addresses via Web Interface To change an IP address via web interface, type the default IP address (192.168.0.200) in the Internet browser and follow the steps below: 1. Login to the H.264 Full HD IP camera by the default username “admin”...
  • Page 12 Once complete, you can access the IP camera’s live video by entering the default IP address via your Internet browser. As the security warning dialog box appears, click OK to download the ActiveX directly from the IP camera. Login There are two levels of user authentication, including admin and guest, that can access the IP camera.
  • Page 13 The default usernames and passwords are as follows: Administrator Username admin Password pass To logon the H.264 FULL HD IP camera, please type username and password in logon HTML page and click on Submit button to enter the system. -11-...
  • Page 14 66-MR6322CSM...
