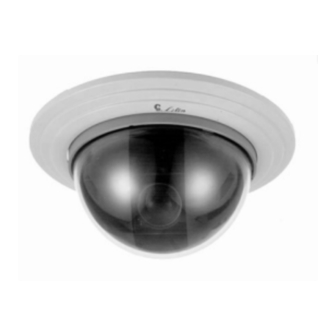

Lilin PIH-7000 Series Instruction Manual

Fast dome camera
Hide thumbs Also See for PIH-7000 Series:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
FAST DOME CAMERA
PIH-7000/7600/7625 Series
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIH-7000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilin PIH-7000 Series

Summary of Contents for Lilin PIH-7000 Series

  • Page 1 FAST DOME CAMERA PIH-7000/7600/7625 Series INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    CONTENTS Pages ..........................Preface ..........................Features ......................Warning & Cautions ......................Structural Element Fast Dome Camera Set Up ....................DIP Switch Setting ....................Fan Switch ....................Alarm Mode ................Fast Dome Function Switch ............... Fast Dome ID Address Setting Refer Chart ..........
  • Page 3 ..................Setting Preset Speed ..................Setting Preset Dwell time ..................Storing Preset Data ..................Recalling Preset Position ................. Setting Preset Position Group .................... Changing Preset Data ....................Activating AutoPan ....................Deleting Preset Data ....................Alarm Management ................. Alarm Response Mode ....................

  • Page 4: Preface

    PREFACE Based on the proven reliability of PIH-7000(17X optical lens) / PIH-7600(22X optical lens) color domes and result of years research & development, in 2003 we are again launching a new day & night dome : PIH-7625 (25X optical lens), to provide a solution for 24 hours surveillance applications.
  • Page 5 FEATURES 17X Auto Focus Lens (PIH-7000) Build-in 17X optical zoom lens with focal length 3.9 ~ 66.3mm 22X Auto Focus Lens (PIH-7600) Build-in 22X optical zoom lens with focal length 3.9 ~ 85.4mm 25X Auto Focus Lens (PIH-7625) Build-in 25X optical zoom lens with focal length 3.8 ~ 95.0mm...
  • Page 6 7. Back Light Compensation Zone (Top , Bottom , Left , Right) 8. Auto Gam Control : 8dB (low) , 22dB (medium) , 36dB (hgih) 9. 8 levels Brightness Adjustment 10. 16 levels Content Adjustment 11. Aperture Correction Adjustment 12. Flickerless : On/Off 13.
  • Page 7 WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3.

  • Page 8: Structural Element

    STRUCTURAL ELEMENT Dome Cover Alarm In / Out Jack Camera Case Video In / Out Jack Decoration Ring Power In Jack RS-485 In / Out Jack Camera Base...

  • Page 9: Fast Dome Camera Set Up

    FAST DOME CAMERA SET UP DIP Switch Setting Camera ID Switch Fan Power Switch Camera Function Switch Alarm Mode Switch Fan Power Switch Turn the number 2 switch to ON position to activate the internal fan. This will maintain the temperature inside and make the electric parts longer life.

  • Page 10: Fast Dome Id Address Setting Refer Chart

    Fast Dome ID Address Setting Refer Chart Up to 64 Fast Dome Camera can be serial linking in one system. Therefore each dome is addressing by ID switch located at the base of the Fast Dome. Below is the address setting for camera 1~64: 1 2 3 4 5 1 2 3 4 5 2 3 4 5...

  • Page 11: Fast Dome Connection Jack And Cable Requirement

    Fast Dome Connection Jack and Cable Requirement Center Pin 1. Power In Jack DC12V Input Voltage, Power Consumption 1.2Adc, Center Pin 2.0mm Require Cable: 18 AWG x 2C 2. Video Out BNC Jack Video Signal Output CVBS 1.0Vpp 75 Recommend Data Cable: 5C2V 3.

  • Page 12: Installation

    INSTALLATION Indoor Installation Structural Drawing Embedded Mounting Attached Mounting...

  • Page 13: Outdoor Installation Structural Drawing (Pendant Mounting)

    Outdoor Installation Structural Drawing (Pendant Mounting)

  • Page 14: Embedded Mounting (False Ceiling)

    Embedded Mounting (False Ceiling) Step 1 Ceiling Preparation l Drill a 3/32" (2.4mm) hole at the center of l Use a pencil and a compasses to mark a the chosen area. circle 6.7" (170mm) in diameter and cut the circle. Step 2 The Ceiling Ring l Attach the ring to ceiling l Tighten the three tapping...
  • Page 15 Step 4 Camera Setting l Untighten the three l Turn the camera l Separate the camera l Unplug the screws from the base body anti-clockwise body and base connection cable Setting Fast Dome ID Setting Alarm Mode Setting Camera Function (17X & 22X optical lens models only) Setting Fan Power Refer to page 8,9 for the setting Step 5 Attach the Camera Body and Base...
  • Page 16 Step 7 Install Camera Body and Decoration Ring l Put camera body and l Turn the camera body l Tighten three the fix ring into the hole clockwise to tight position black screws l Put on decoration l Turn the ring clockwise ring to tight position Step 8 Install The Dome Cover...

  • Page 17: Attached Mounting (Fixed Ceiling)

    Attached Mounting (Fixed Ceiling) Step 1 Fix The Base l Turn the dome cover l Separate the dome l Untighten the three anti-clockwise cover from camera screws from base l Turn the camera cover l Separate the camera l Unplug the anti-clockwise body to the base connection cable...
  • Page 18 Step 3 Attach Camera Body and Base l Reconnect the l Attach camera body l Turn camera body connection cable to base clockwise to tight position Step 4 Connection l Connect RS-485 l Connect video l Connect alarm cable signal cable output cable Step 5 Install Decoration Ring l Put on decoration ring to base...

  • Page 19: Pendant Mounting (External Housing)

    Pendant Mounting (External Housing) Step 1 Separate PSU and Bracket Untighten the screws Untighten and pull out Separate the housing Untighten the screws from PSU box and the bolt from the hinge and PSU box from PSU box open it. (Swan Neck) Step 2 Install Power Supply Unit 1.1 When use 24Vac power source: l Tighten 2 screws to...
  • Page 20 Step 4 Connection 4.1 Connect AC / DC cables: l Untighten the left l Connect the AC l Connect the AC l Connect the DC knob, put the AC power cable to AC power cable(below) power cable(above) power cable through Input jack to AC Output jack to DC Input jack...
  • Page 21 4.3 Connect Alarm and telemetry control (RS-485) cables: Untighten the right knob, Connect the Connect the Alarm put the Alarm and RS-485 telemetry control input cable to Alarm cables through the hole (RS-485) to RS-485 Input and tighten the knob Input (TXDI+,TXDI-) (Alarm 1 &...
  • Page 22 Step 6 Camera Setting Setting Fast Dome ID Setting Alarm Mode Setting Camera Function (17X & 22X optical lens models only) Setting Fan Power Refer to page 8,9 for the setting Step 7 Attach Camera Body and Base l Reconnect the l Attach camera l Turn camera body l Tighten the three...
  • Page 23 Step 10 Connection l Connect the fan & heater l Connect the Fast Dome cable to pin jack cable to connection jack Step 11 Install The Power Box, Bracket and Housing PIH-510H l Attach the bracket l Tighten the 4 screws and housing to the box to fix the bracket PIH-510L...

  • Page 24: System Configuration

    SYSTEM CONFIGURATION Li Lin's integrated Fast Dome Surveillance System is suitable for a wide range of surveillance applications. The system cam be as single fast dome with one keyboard or encompassing as 64 domes with comprehensive matrix switching, PC control and even Digital Video Recording. Such flexibility means future expansion is easily facilitated.
  • Page 25 Multiple Domes means that more than one fast dome is linked in the system. Each dome connects to next dome forming a serial linking. Each dome has an individual ID dip switch, which allows the keyboard to identify each fast dome and make command. Sometimes it is more convenient to wire a telemetry system in star configuration rather than daisy chain.

  • Page 26: Fast Dome, Matrix And Keyboard

    Matrix System is designed to process multiple video systems and video switching. Its central process unit (CPU) can manage multiple video signals simultaneously and control other linking system, such as PIH-7000/7600/7625 fast dome or PIH-820 telemetry receiver. All telemetry remote control and signal transmissions are through twisted pair. One matrix can manage up to 64 fast domes.
  • Page 27 Fast Dome, DVR Multiplexer Video Management System and Keyboard The DVR System is an advanced digital recording product, with long recording time and easy searching features. Telemetry remote control is twisted pair for data transmission to the fast dome. Fast Dome can be controlled directly from the control panel of the DVR, or from keyboard.

  • Page 28: Fast Dome With Pc Control

    Fast Dome with PC Control PC telemetry remote controls fast dome with standard RS-485 data format (format: N, 8, 1 Baud Rate 9600 bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by Li-Lin to control the dome.

  • Page 29: Operation

    OPERATION Initial Power Up Inspection After the power is first applied to a dome it will perform a self-test procedure. This calibrates and checks the basic functions of the dome, control is not possible during this self-test period. Once the camera has stopped moving, it will then be ready to control. If preset positions and tours have been programmed into a dome and the power is turned off, the dome will enter the Auto Scan mode once the power is turned on again (after self-test period).

  • Page 30: Fast Dome Selection

    Fast Dome Selection To call out a dome controlling or setting To select 1st Fast Dome CAM ESC CAM SETUP 180 REV LENS SPEED AUTO Push key 1 followed by CAM key. SPRAY AUX LIGHT CTRL1 CTRL2 WIPER POWER To select 64th Fast Dome ALARM SETUP RESET...

  • Page 31: Focus Control

    On "Zoom SPD" push joystick left or right to make selection. One of three speed can be selected: FAST = Tele - Wide : 3.5 seconds. MEDIUM = Tele - Wide : 6 seconds. SLOW = Tele - Wide : 52 seconds. To Exit Setup Menu CAM ESC Push...
  • Page 32 25X Fast Dome Camera Auto Focus & One Shot Focus Selection Recall Setup Menu CAM SETUP Push key to recall OSD menu. CTRL 1 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF : MEDIUM 1.
  • Page 33 25X Fast Dome Camera Manual Focus Speed Setup Recall Setup Menu CAM SETUP Push key to recall OSD menu. CTRL 1 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF : MEDIUM 1. INITIAL SET 9.

  • Page 34: Iris Control

    Iris Control The purpose of iris control is to adjust brightness on target. It can be set as Auto Iris or Manual Iris. Iris Open Push IRIS O key, to open the iris and brighten the picture. Iris will stop when the key is released. Iris Close CAM ESC CAM SETUP...

  • Page 35: Horizontal 180 Instant Flip

    Horizontal 180 Instant Flip Some times it is hard to use the joystick to control the camera tracking the target directly under the camera. The instant flip key can rotate the camera 180 instantly. This allows the camera continue to track the target passing directly under the camera. Two ways to operate 180 instant flip: 180 REV Push...

  • Page 36: Adjusting Lens

    Adjusting Lens ZOOM IN / OUT, FOCUS NEAR / FAR / AUTO and IRIS O / C / AUTO keys. When set up preset point, using manual focus will provide both clarity and stability of image. CAM ESC CAM SETUP 180 REV LENS SPEED AUTO...

  • Page 37: Recalling Preset Positions

    Recalling Preset Positions Once the required preset positions have been stored in a dome, they may be quickly recalled, returning the dome to exact position. To recall 1st Preset Position: Push key 1 followed by PRESET key. The dome will move to that position in speed of 360 /sec. : 1 PRESET keys Ex.

  • Page 38: Activating Auto Pan

    Activating Auto Pan When the Auto Pan function is activated, the fast dome will auto touring the preset groups entered. To activate Auto Pan: CAM ESC CAM SETUP 180 REV LENS SPEED Push AUTO PAN key, confirming the activation of AUTO SPRAY AUX LIGHT...

  • Page 39: Alarm Output

    Alarm Response Mode The fast dome alarm response can be set to Lock or Release mode. Lock : dome remains at last alarmed preset point Release : dome moves between alarmed points then reverts to prior status, such as autopan. Lock Mode When an alarm is triggered, the dome will go to the relevant position at 360 /sec and the keyboard will audio alert the user until it is canceled manually.
  • Page 40 25X Fast Dome Function Setup PIH-7625 (25X Optical Lens) series provide on-screen setup menu, all functions can be selected and set via OSD Setup Menu. Recall Setup Menu CAM SETUP Push key to recall OSD menu. CTRL 1 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF...
  • Page 41 Initial Setting (Factory Default) To reset all functions back to initial factory setting. CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 1st item "Initial Set" on menu and move joystick left or right to make selection.

  • Page 42: Back Light Compensation

    Sensitivity Up (Enhancement) Sensitivity Up function allows user to select different Video Gain (Y Gain) control. (Auto/On/Off) AUTO : System auto turn on or off Video Gain Control function according to target's brightness. ON : Video Gain Control Enhancement always on. OFF : Video Gain Control Enhancement always off.
  • Page 43 Back Light Compensation Zone Selection One of five different zone can be selected for BLC. (Factory Default is Center) To select BLC zone : CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 5th item "BLC Region" on menu. Move joystick right or left to make selection : "Top Bottom Left...
  • Page 44 White Balance Mode Selection One of four different White Balance Modes can be selected. (Factory Default is ATW) ATW : Auto Trace White Balance, is a feedback system that automatically aligns the white balance by detecting the R-G and B-G before gamma correction processing. AWC : Auto White Balance Correction, is performed at a faster operating speed than ATW without an operation or other limitations.
  • Page 45 Gamma Adjustment (Brightness) 8 levels of Gamma (Brightness) can be adjusted. (Factory Default is 4) To adjust gamma level : CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 9th item "Gamma" on menu. Move joystick right or left to make selection : "0 ~ 7".
  • Page 46 MENU SETUP PAGE 2 MENU SETUP PAGE 2 9. GAMMA 9. GAMMA 16 selections 10. PEDESTAL 10. PEDESTAL 11. VHAPSL 11. VHAPSL 0~ F 12. VAPSL 12. VAPSL 13. HAPGL 13. HAPGL 14. HAPGH 14. HAPGH 15. VAPG 15. VAPG 16.
  • Page 47 IR Cut Switch One of three different IR Cut modes can be selected. (Factory Default is AUTO) AUTO : IR Cut filter auto switch according to Lux level. When light is over 5 Lux, IR Cut filter auto switch in and produce color image. When light drops below 3 Lux, IR Cut filter auto switch out and produce monochrome image, under monochrome mode sensitivity is increased to 0.01 Lux and can be use with IR lighting.
  • Page 48 Private Mask Setup Push 7 key followed by F4 key to enter Private Mask Setup. The "PLEASE RECALL PRESET" message will CAM ESC CAM SETUP 180 REV LENS SPEED AUTO SPRAY AUX LIGHT CTRL1 CTRL2 WIPER show on screen, user must recall desired preset POWER ALARM SETUP...
  • Page 49 SPECIFICATION Operational Manual Pan / Tilt Speed 0.18 ~ 180 /sec (8 stages) Preset Position Pan / Tilt Speed 1 ~ 255 /sec Preset Position Dwell Time 1 ~ 255 secretary Recall Preset Position Pan / Tilt Speed 360 /sec 180 Instant Flip Rotation Speed 360 /sec Pan Rotation...
  • Page 50 Optical Lens 17X Lens Focal Length f = 3.9 ~ 66.3mm 17X Lens Aperture Max F1.4 (wide) ~ F3.6 (telephoto) 17X Horizontal View Angle 50.9 (wide) / 4.2 (telephoto) 22X Lens Focal Length f = 3.9 ~ 86mm 22X Lens Aperture Max F1.6 (wide) ~ F3.6 (telephoto) 22X Horizontal View Angle 50.9 (wide) / 2.4 (telephoto)
  • Page 51 External Housing Electrical Power Supply 24Vac or 90Vac ~ 260Vac (Option) Input Voltage 12Vdc Power Consumption 7.5W Control Interface RS-485 (1 Input / 1 Output) RS-485 Voltage 5.6V Alarm Input 6 Inputs (Pull up) Alarm Input Voltage 5.6V Alarm Output 1 Output (NC or NO mode setting) Alarm Output Voltage 0.5A 120Vac / 1A 24Vdc...

  • Page 52: Quick Reference Table

    APPENDIX A Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Tilt Left Push Joystick Left Push Joystick Right To Tilt Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out...
  • Page 53 APPENDIX B Trouble Shooting 1. No Power 1-1. Check power input connection 1-2. Check fuse on the PCB 1-3. Check connection between camera body and base 2. No Video 2-1. Check camera video output on camera 2-2. Check cable (damaged cable) 2-3.
  • Page 54 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-7000CSE...
