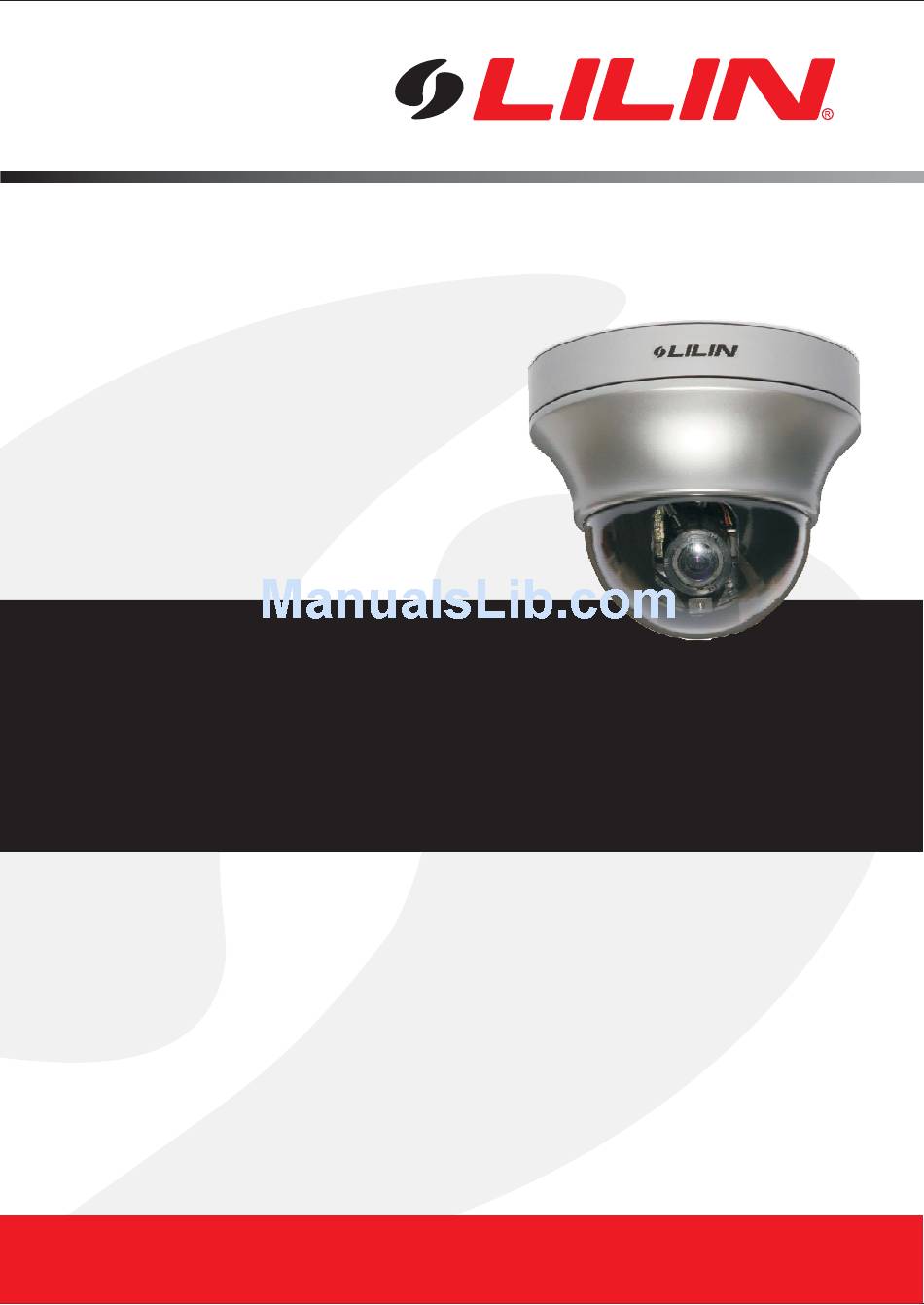

- Page 1 D/N CMOS HD VARI-FOCAL DOME IP CAMERA IPD112ESX3 INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
-
Page 4: Executive Summary

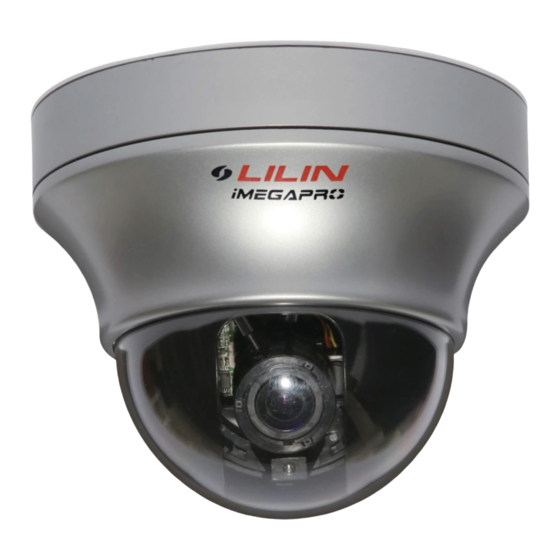

Executive Summary IPD112ESX is an indoor HD IP camera built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high Definition video quality, 720P resolution, bandwidth efficiency with PPPoE and DDNS. Also it provides higher bit rate of internet and diverse alarm functions such as external alarm or movement video detection e-mail or FTP. -
Page 5: Installation
Installation 1. Put the provided screws (M3.0 x 25, wooden screw) through the holes marked as "a", and fix the base in the desired area (FIG.1). FIG. 1 2. The direction of the lens is adjustable through the adjustable Pan/Tilt brackets and rotatable round bracket for Azimuth. - Page 6 3. An extra RCA jack for easy installation. Plug the video input of monitor to the RCA jack and adjust focus and zoom. After finished, unplug the RCA jack. Please refer to FIG.3. FIG. 3 4. Adjust DC iris level by turning the iris level VR. Please refer to FIG.2. ATTENTION: Adjust this VR with care so as not to cause damage to the unit.
- Page 7 6. Other wires installation like connecting audio in/output, video output and alarm in/out with connector, please follow instruction as below: DC12V ALARM AUDIO /VIDEO Alarm In/Out Audio In/Out Untighten the three screws to take To connect with wire accessory. off the cover of bottom. Take wire through the hole, and Tighten the three screws to fix the configure the cover of bottom.
-
Page 8: Product Components
Product Components 1. D/N CMOS HD Vari-Focal Dome IP Camera 2. Instruction manual H.264 AVC IP Cameras D/N CMOS HD VARI-FOCAL DOME IP CAMERA IPD112ESX3 IPD552EX2.2/4.2 N/P INSTRUCTION MANUAL INSTRUCTION MANUAL 3. Wire & Power Adaptor Accessory 4. CD Software Pack... -
Page 9: Emergency Factory Default
(3). Hardware Installation using DC12V Adaptor. LAN / Internet Non-PoE Switch IPD112ESX Emergency Factory Default To restore the server to factory default settings, please: 1. Hold Reset Key for 10 second. 2. The network LED lights turn off after about 20 seconds, then lit. 3. -
Page 10: Specifications
Specifications D/N CMOS HD VARI-FOCAL DOME IP CAMERA IPD112ESX3 Model No. Focal Length 3 ~ 9mm Iris F1.2 Lens 62.3 ~ 21.2 Angle of View 45.8 ~ 15.9 79.7 ~ 26.5 Pick Up Element 1/4" Progressive scan CMOS sensor Effective Pixels... - Page 11 Support Windows Mobile 5/6, PDA, BlackBerry, and iPhone System Integration ONVIF Free CMX support Video Display LILIN Universal ActiveX / Quick Time Embedded Linux 2.4.19 Two-way audio G.711 / PCM Support SD/SDHC card for circular recording SD Card Recording (card is not included) Alarm Input / Output Digital 1 input (TTL, +3~5V) / 1 Output (N.O.)
