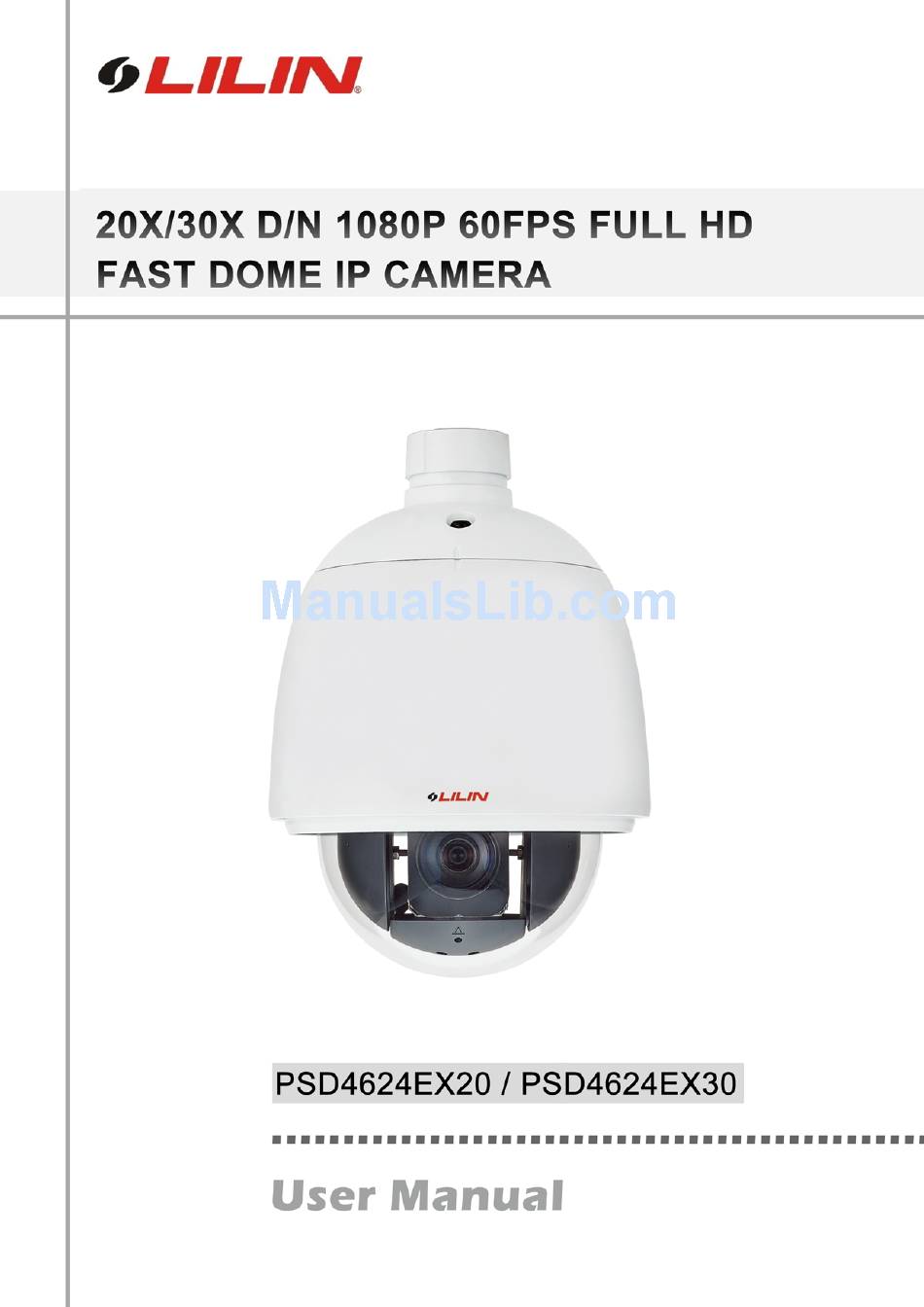

Lilin PSD4624EX20 User Manual

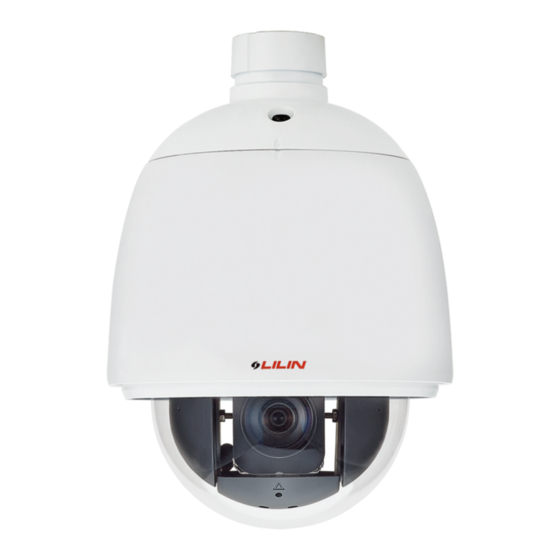

20x; 30x day/night 1080p 60 fps full hd fast dome ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSD4624EX20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilin PSD4624EX20

Summary of Contents for Lilin PSD4624EX20

  • Page 2: Key Features

    Summary LILIN’s PSD4624E Series are Full HD fast dome IP cameras that adopt the latest compression technologies to provide Quadruple Streaming of H.264 and MJPEG in different resolutions. The Quadruple Streaming technology allows transmitting digital video at various bitrates and frame rates to fit both high and low bandwidth network environment.
  • Page 3 Sample codes and supporting document are included in the product CD and can be downloaded from our official website. LILIN HTTP API For non-ONVIF integration, please see LILIN HTTP API document. We adopt HTTP API document for all LILIN IP cameras. Caution ...

  • Page 4: Table Of Contents

    Chapter 2-3 Internet Browser Setting & Software Component Required ..............8 Chapter 2-4 Login ................................8 Chapter 3 LILIN IP PTZ Camera Operations ........................9 Chapter 3-1 IP PTZ Operational HTML Page ......................... 9 Chapter 3-2 PTZ Control Panel ............................9 Chapter 3-2-1 Vertical and Horizontal Direction Controls ..................
  • Page 5 Chapter 4-4 Maintenance ............................24 Chapter 4-5 PTZ ................................25 Chapter 4-5-1 Lens Advance Setting [Path: Basic>> PTZ>> Advance>> Lens Advance].......... 25 Chapter 4-5-2 Auto Scan Setup [Path: Basic>> PTZ>> Advance>> Auto Scan Setup] ..........25 Chapter 4-5-3 Tour Setup [Path: Basic>> PTZ>> Advance >> Tour Table] .............. 26 Chapter 4-5-4 Patrol Setup [Path: Basic>>...
  • Page 6 Chapter 5-5-5 SD Card Backup File [Path: Advance>> Notification>> SD Card Backup File] ........37 Chapter 5-6 PTZ ................................38 Chapter 5-6-1 RS-485 [Path: Advance>> PTZ>> RS-485]..................38 Appendix ..................................39...

  • Page 7: Chapter 1 System Overview

    Chapter 1-2 Software Requirements Merit LILIN Universal ActiveX software components or QuickTime are required for a web browser to display MJPEG or H.264 video. When you first log in to our IP camera, you may see a prompt box as below: Click Install and follow the onscreen instructions to install necessary components.

  • Page 8: Chapter 2 Before Accessing Ip Ptz Cameras

    Chapter 2 Before Accessing IP PTZ Cameras Before accessing to the IP PTZ camera, make sure that the camera’s RJ-45 network cable, audio cable, and IP PTZ camera’s power cable are properly installed. For IP address setup, please consult your network administrator for available IP addresses.

  • Page 9: Chapter 2-2 Configuring Ip Addresses Through Html Connection

    192.168.0.200, in your Internet browser and follow the steps below:  Log in to your LILIN IP camera using the default username admin and default password pass.  Click Setup→Network to edit or modify IP address, subnet mask, gateway, or HTTP port.

  • Page 10: Chapter 3 Lilin Ip Ptz Camera Operations

    Chapter 3 LILIN IP PTZ Camera Operations When logged in as an administrator, two main features are available: 1) camera operations and 2) configurations. Chapter 3-1 IP PTZ Operational HTML Page Quick buttons—IP camera control panel ActiveX display screen—Display RTSP H.264 or MJPEG network video Profile switching menu—Switching from one profile to another...
  • Page 11 PTZ Setup PTZ Function Setup Preset Setup Preset Position Setup Auto Recovery drop-down options  Home Position: Specify a home position for one of the presets.  Self Return Time: If the IP PTZ camera idles after the chosen time period, the selected function will be activated automatically.

  • Page 12: Chapter 3-2-1 Vertical And Horizontal Direction Controls

    Preset Setup drop-down options A total of 256 preset positions can be programmed for the IP PTZ camera. Please refer to the instructions below to configure preset positions. To set up a preset point, first move the cursor to the PTZ control panel.

  • Page 13: Chapter 3-2-3 Control Panel

    Move your cursor to the PIP window and drag inside it to perform ePan and eTilt actions. The scroll wheel can be used to zoom in and zoom out. Chapter 3-2-3 Control Panel The quick control panel buttons are described below: Snapshot: Take a snapshot of the video.
  • Page 14 Chapter 3-2-3-2 Record in a Local PC To record videos to a local PC, first right-click on the LILIN Universal ActiveX control. Choose Setting to specify the recording paths and recording sizes, and choose Recording On to start recording. Please make sure that the ePTZ or ROI feature is disabled before trying to open the...

  • Page 15: Chapter 4 Basic Settings

    Chapter 4 Basic Settings As an administrator, you can configure the IP camera via a standard HTML webpage. Click Setup at the top-right corner of the screen after you log in to the camera. Chapter 4-1 System Chapter 4-1-1 General [Path: Basic>> System>> General] Under System Settings→General, you will see server system information, such as MAC address, firmware version, user settings, and system time settings.

  • Page 16: Chapter 4-1-2 User [Path: Basic>> System>> User]

     System Reboot Time: The last time your system was rebooted  Device Name: The device name can be found using the IPscan utility, which allows you to identify IP cameras. To change the device name, enter a new name for the IP camera and click Submit.

  • Page 17: Chapter 4-1-3 Timer [Path: Basic>> System>> Timer]

    Chapter 4-1-3 Timer [Path: Basic>> System>> Timer] You can change the time of your camera through a HTML web page. Simply select the date and time in the drop-down menus, and click Submit to apply. You may also set the daylight saving time in this page.
  • Page 18  Profile: 4 customizable profiles.  TV System: NTSC(60)/PAL(50) HZ video system.  Profile Name: Description of the streaming profile.  Output Frame Rate: The frame rate of the profile.  GOP(Group of Picture): I-Frame period per second.  VBR/CBR Mode: VRB：Variable bit rate encoding mode/constant bit rate encoding mode. ...

  • Page 19: Chapter 4-2-2 Video Quality Tuner [Path: Basic>> Video/Audio>> Quality Tuner]

    alarm is detected.  RTSPURL: Allows you to see the video stream through the Real Time Streaming Protocol Note: Setting options may differ depending on the model you use. Chapter 4-2-2 Video Quality Tuner [Path: Basic>> Video/Audio>> Quality Tuner] Chapter 4-2-2-1 Day Night Mode [Path: Basic>>...
  • Page 20 Video setting options are described as followed:  Mirror: Flip the video horizontally.  Flip: Flip the video vertically.  WDR: Enables or disables Wide Dynamic Range to capture greater details. When turned on (the system will be restarted), the camera will record up to 2MP @ 30 fps in H.264. The default is off (the system will be restarted, H.264: up to 2MP @ 60 fps).
  • Page 21 Chapter 4-2-2-3 Exposure Controller [Path: Basic>> Video/Audio>> Quality>> Exposure Controller] The exposure settings include automatic exposure mode and manual exposure mode. AE modes: automatic brightness control through exposure level sensing object. This camera features adjustable maximum gain control, full auto, shutter priority, and iris priority. Manual Exposure Mode: Manual adjustment of shutter speed and iris position.

  • Page 22: Chapter 4-3 Network

    Chapter 4-3-1 General [Path: Basic>> Network>> General] Network settings are the basic settings that connect LILIN IP cameras to the network. The default IP address of our IP cameras is 192.168.0.200. Enter this IP address into your web browser to verify the network connection between a local PC and your IP camera.

  • Page 23: Chapter 4-3-2 General Ipv6 [Path: Basic>> Network>> Ipv6]

    camera. There is no need to manually configure the IP address, subnet mask, and gateway. However, every time the DHCP service is rebooted, the IP address of the IP camera may vary. You may need to use IPscan to search for the IP camera. To enable DHCP, click the DHCP option and click Submit.

  • Page 24: Chapter 4-3-4 Ddns [Path: Basic>> Network>> Ddns]

    Profile Name: Change the profile name. Chapter 4-3-4 DDNS [Path: Basic>> Network>> DDNS] The DDNS service allows you to automatically update the DNS server. LILIN provides three DDNS servers to choose from (we recommend you use the first one from the drop-down menu). Click Submit for the changes to take effect.

  • Page 25: Chapter 4-3-5 Snmp [Path: Basic>> Network>> Snmp]

    Chapter 4-3-5 SNMP [Path: Basic>> Network>> SNMP] Enable to activate SNMP service. Modify the fields to suit your needs, and click Submit for the changes to take effect. Chapter 4-4 Maintenance In the Maintenance page, you can click Load Default to restore the camera to factory settings, or click Reboot System to restart the camera.

  • Page 26: Chapter 4-5 Ptz

    Warning: Never disconnect the power during the update. This could cause irreversible damage to your device. Note: If you forget your password, please contact your vendor or send the device us. Chapter 4-5 PTZ Chapter 4-5-1 Lens Advance Setting [Path: Basic>> PTZ>> Advance>> Lens Advance] ...

  • Page 27: Chapter 4-5-3 Tour Setup [Path: Basic>> Ptz>> Advance >> Tour Table]

    auto scan path setup.  Auto Scan Path: Select a scan path (1–16) from the drop-down list.  Dwell Time: Set the time you want the camera view to stay at the start position or end position.  Speed: Set the scanning speed between two positions. ...

  • Page 28: Chapter 4-5-4 Patrol Setup [Path: Basic>> Ptz>> Advance>> Patrol Setup]

     Sequential Preset Points Setting: Set up preset positions for the selected tour path in any order you want from the drop-down list. Finally, click Apply to save the settings. Chapter 4-5-4 Patrol Setup [Path: Basic>> PTZ>> Advance>> Patrol Setup] PSD4624E supports up to sixteen patrol paths.

  • Page 29: Chapter 5-1-1 System Log [Path: Advance>> System>> System Log]

    Chapter 5-2-1 Privacy Mask [Path: Advance>> Video/Audio>> SPD Privacy Mask solution] Lilin PSD4624E PTZ IP camera provides up to 16 privacy masks, Choose a mask number and click Edit for a mask to appear in the center of the screen. You can also adjust the color, width, and length of the mask and move the camera to the appropriate position to hide any object.

  • Page 30: Chapter 5-2-2 Audio Adjust [Path: Video/Audio>> Audio Adjust]

    Chapter 5-2-2 Audio Adjust [Path: Video/Audio>> Audio Adjust]...

  • Page 31: Chapter 5-3 Network

    Sampling rate: Set the audio sampling rate.  Bit Rate: 16 Kbit/s. Chapter 5-3 Network Chapter 5-3-1 Multicast [Path: Advance>> Network>> Multicast] LILIN cameras support video streaming of 4 different content formats. Under this page, you can configure the settings for individual streams.

  • Page 32: Chapter 5-3-2 Ip Address Filtering [Path: Advance>> Network>> Ip Address Filtering]

    Chapter 5-3-2 IP Address Filtering [Path: Advance>> Network>> IP Address Filtering] LILIN cameras provide an IP address filter to help you block unauthorized IP addresses from accessing the camera. Enable the service before you enter the IP address you want to block, and press Add.

  • Page 33: Chapter 5-3-5 Sddp/Heratbeat [Path: Advance>> Network>> Sddp/Heratbeat]

    Chapter 5-3-5 SDDP/Heratbeat [Path: Advance>> Network>> SDDP/Heratbeat] With SDDP/Heartbeat support, you can connect to any compatible devices. Enable the service before you make the connection. Chapter 5-4 Event Here you can configure the detection settings for motion, sound, alarm, and network failure. Choose an event type in the drop-down menu, then click Edit Event.

  • Page 34: Chapter 5-4-1 Motion Detection [Path: Advance>> Even>> Motion Detection]

     FTP Service: When an alarm is triggered, snapshots will be sent to a pre-determined FTP site during the specified time.  SMTP Service: When an alarm is triggered, snapshots will be sent to pre-determined Email addresses during the specified time. ...

  • Page 35: Chapter 5-4-2 Audio Detection [Path: Advance>> Event >> Audio Detection]

    Chapter 5-4-2 Audio Detection [Path: Advance>> Event >> Audio Detection] When the detected sound exceeds the sensitivity level, the audio detector will trigger an alarm and send a notification. Chapter 5-4-3 Alarm Detection [Path: Advance>> Event>> Alarm Detection] If you connect an external alarm digital input to the IP camera, enable Alarm Notification and switch between NO (normally open) and NC (normally closed) for the input.

  • Page 36: Chapter 5-4-4 Network Detection [Path: Advance>> Event>> Network Detection]

    Chapter 5-4-4 Network Detection [Path: Advance>> Event>> Network Detection] Enable this option to send a notification upon network failure. Chapter 5-5 Notification Chapter 5-5-1 FTP Service [Path: Advance>> Notification>> FTP Service] Enter the required FTP information to send alarm snapshots to an FTP server.

  • Page 37: Chapter 5-5-2 Smtp Service [Path: Advance>> Notification>> Smtp Service]

     FTP/DN Server IP/DNS: IP address or domain name of the FTP server.  FTP/DN Server Port: The FTP Server Port.  Account: Account name to log in to the FTP server.  Password: Password of the account.  Directory: File path for storing the JPEG snapshots. ...

  • Page 38: Chapter 5-5-4 Sd Card Service [Path: Advance>> Notification>> Sd Card Service]

    Chapter 5-5-4 SD Card Service [Path: Advance>> Notification>> SD Card Service] Ensure an SD card is properly installed to the camera before you enable the SD recording option. The camera will start recording videos when an alarm occurs. Warning: Ensure to click Unmount before removing the SD card, or the system may crash. Chapter 5-5-5 SD Card Backup File [Path: Advance>>...

  • Page 39: Chapter 5-6 Ptz

    Chapter 5-6 PTZ Chapter 5-6-1 RS-485 [Path: Advance>> PTZ>> RS-485] You can change configurations related to RS-485 if connected to an RS-485 device.  ID: Set the camera ID.  Protocol: Set the communication protocol.  Baud Rate: Set the communication baud rate.

  • Page 40: Appendix

    Appendix DDNS and PPPoE Network Settings One of the advantages of adopting DDNS and PPPoE services is to save the cost of renting a global IP address. When you power on a camera with a video server and connect to the Internet with the PPPoE service, the camera asks your ISP for a dynamic global IP address.
  • Page 41 SDHC For iPhone Users Tap App Store, and search and download LILINViewer by Merit LILIN Ent. Co., Ltd. Or, you can scan the QR Code below. Open LILINViewer, then choose tab Groupings. Select a group, choose a camera type, and add a camera.
  • Page 42 For Android Users Tap Play Store to download LILINViewer by Merit LILIN, or scan the following QR code. Open LILINViewer, then choose tab Groupings. Select a group, choose a camera type, and add a camera. Next, enter camera information as follows: 1.
