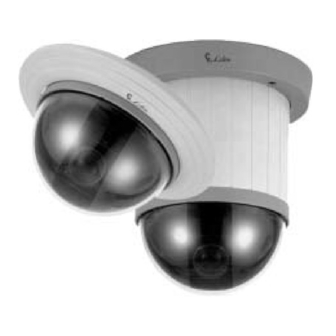

FAST DOME CAMERA
PIH - 7000/7600/7625 Series
INSTALLION / OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIH - 7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilin PIH - 7000

Summary of Contents for Lilin PIH - 7000

  • Page 1 FAST DOME CAMERA PIH - 7000/7600/7625 Series INSTALLION / OPERATION MANUAL...

  • Page 2: Table Of Contents

    CONTENTS Pages ..........................Preface ..........................Features ......................Warning & Cautions ......................Structural Element Fast Dome Camera Set Up ....................DIP Switch Setting ....................Fan Switch ....................Alarm Mode ................Fast Dome Function Switch ............... Fast Dome ID Address Setting Refer Chart ..........
  • Page 3 ..................Setting Preset Speed ..................Setting Preset Dwell time ..................Storing Preset Data ..................Recalling Preset Position ................. Setting Preset Position Group .................... Changing Preset Data ....................Activating AutoPan ....................Deleting Preset Data ....................Alarm Management ................. Alarm Response Mode ....................

  • Page 4: Preface

    PREFACE Based on the proven reliability of PIH-7000(17X optical lens) / PIH-7600(22X optical lens) color domes and result of years research & development, in 2003 we are again launching a new day & night dome : PIH-7625 (25X optical lens), to provide a solution for 24 hours surveillance applications.
  • Page 5 FEATURES 17X Auto Focus Lens (PIH-7000) Build-in 17X optical zoom lens with focal length 3.9 ~ 66.3mm 22X Auto Focus Lens (PIH-7600) Build-in 22X optical zoom lens with focal length 3.9 ~ 85.4mm 25X Auto Focus Lens (PIH-7625) Build-in 25X optical zoom lens with focal length 3.8 ~ 95.0mm Automatic / Manual Iris Control 360 continuous rotation Up to 128 programmable preset positions...
  • Page 6 7. Back Light Compensation Zone (Top , Bottom , Left , Right) 8. Auto Gam Control : 8dB (low) , 22dB (medium) , 36dB (hgih) 9. 8 levels Brightness Adjustment 10. 16 levels Content Adjustment 11. Aperture Correction Adjustment 12. Flickerless : On/Off 13.
  • Page 7 WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3.

  • Page 8: Structural Element

    STRUCTURAL ELEMENT Dome Cover Alarm In / Out Jack Camera Case Video In / Out Jack Decoration Ring Power In Jack RS-485 In / Out Jack Camera Base...

  • Page 9: Fast Dome Camera Set Up

    FAST DOME CAMERA SET UP DIP Switch Setting Camera ID Switch Fan Power Switch Camera Function Switch Alarm Mode Switch Fan Power Switch Turn the number 2 switch to ON position to activate the internal fan. This will maintain the temperature inside and make the electric parts longer life.

  • Page 10: Fast Dome Id Address Setting Refer Chart

    Fast Dome ID Address Setting Refer Chart Up to 64 Fast Dome Camera can be serial linking in one system. Therefore each dome is addressing by ID switch located at the base of the Fast Dome. Below is the address setting for camera 1~64: 1 2 3 4 5 1 2 3 4 5 2 3 4 5...

  • Page 11: Fast Dome Connection Jack And Cable Requirement

    Fast Dome Connection Jack and Cable Requirement Center Pin 1. Power In Jack DC12V Input Voltage, Power Consumption 1.2Adc, Center Pin 2.0mm Require Cable: 18 AWG x 2C 2. Video Out BNC Jack Video Signal Output CVBS 1.0Vpp 75 Recommend Data Cable: 5C2V 3.

  • Page 12: Installation

    INSTALLATION Indoor Installation Structural Drawing Embedded Mounting Attached Mounting...

  • Page 13: Outdoor Installation Structural Drawing (Pendant Mounting)

    Outdoor Installation Structural Drawing (Pendant Mounting)

  • Page 14: Embedded Mounting (False Ceiling)

    Embedded Mounting (False Ceiling) Step 1 Ceiling Preparation l Drill a 3/32" (2.4mm) hole at the center of l Use a pencil and a compasses to mark a the chosen area. circle 6.7" (170mm) in diameter and cut the circle. Step 2 The Ceiling Ring l Attach the ring to ceiling l Tighten the three tapping...
  • Page 15 Step 4 Camera Setting l Untighten the three l Turn the camera l Separate the camera l Unplug the screws from the base body anti-clockwise body and base connection cable Setting Fast Dome ID Setting Alarm Mode Setting Camera Function (17X & 22X optical lens models only) Setting Fan Power Refer to page 8,9 for the setting Step 5 Attach the Camera Body and Base...
  • Page 16 Step 7 Install Camera Body and Decoration Ring l Put camera body and l Turn the camera body l Tighten three the fix ring into the hole clockwise to tight position black screws l Put on decoration l Turn the ring clockwise ring to tight position Step 8 Install The Dome Cover...

  • Page 17: Attached Mounting (Fixed Ceiling)

    Attached Mounting (Fixed Ceiling) Step 1 Fix The Base l Turn the dome cover l Separate the dome l Untighten the three anti-clockwise cover from camera screws from base l Turn the camera cover l Separate the camera l Unplug the anti-clockwise body to the base connection cable...
  • Page 18 Step 3 Attach Camera Body and Base l Reconnect the l Attach camera body l Turn camera body connection cable to base clockwise to tight position Step 4 Connection l Connect RS-485 l Connect video l Connect alarm cable signal cable output cable Step 5 Install Decoration Ring l Put on decoration ring to base...

  • Page 19: Pendant Mounting (External Housing)

    Pendant Mounting (External Housing) Step 1 Separate PSU and Bracket l Untighten and pull out l Separate the housing l Untighten the screws the bolt from the hinge and PSU box from PSU box Step 2 Install Power Supply Unit 1.1 When use 24Vac power source: l Tighten 2 screws to l Put the PSU into the...
  • Page 20 Step 4 Connection 4.1 Connect AC / DC cables: l Untighten the left l Connect the AC l Connect the AC l Connect the DC knob, put the AC power cable to AC power cable(below) power cable(above) power cable through Input jack to AC Output jack to DC Input jack...
  • Page 21 Step 5 Attach the base to housing l Turn the dome cover l Separate the dome l Untighten the 3 anti-clockwise cover from camera screws from base l Turn the camera body l Separate the camera l Unplug the anti-clockwise body and base connection cable l Attach the base to...
  • Page 22 Step 7 Attach Camera Body and Base l Reconnect the l Attach camera l Turn camera body l Tighten the three connection cable body to base clockwise to high screws to fix the position camera body Step 8 Install The Dome Cover and Housing Cover l Attach the cover to housing l Tighten the 3 screws to fix the cover Note : When Fast Dome is installed inside outdoor housing, please don't attach dome...
  • Page 23 Step 11 Install The Power Box, Bracket and Housing PIH-510H l Attach the bracket l Tighten the 4 screws and housing to the to fix the bracket PIH-510L l Attach the bracket l Tighten the 4 screws and housing to the to fix the bracket...

  • Page 24: System Configuration

    SYSTEM CONFIGURATION Li Lin's integrated Fast Dome Surveillance System is suitable for a wide range of surveillance applications. The system cam be as single fast dome with one keyboard or encompassing as 64 domes with comprehensive matrix switching, PC control and even Digital Video Recording. Such flexibility means future expansion is easily facilitated.
  • Page 25 Multiple Domes means that more than one fast dome is linked in the system. Each dome connects to next dome forming a serial linking. Each dome has an individual ID dip switch, which allows the keyboard to identify each fast dome and make command. Sometimes it is more convenient to wire a telemetry system in star configuration rather than daisy chain.

  • Page 26: Fast Dome, Matrix And Keyboard

    Fast Dome, Matrix and Keyboard Matrix System is designed to process multiple video systems and video switching. Its central process unit (CPU) can manage multiple video signals simultaneously and control other linking system, such as PIH-7000/7600/7625 fast dome or PIH-820 telemetry receiver. All telemetry remote control and signal transmissions are through twisted pair.
  • Page 27 Fast Dome, DVR Multiplexer Video Management System and Keyboard The DVR System is an advanced digital recording product, with long recording time and easy searching features. Telemetry remote control is twisted pair for data transmission to the fast dome. Fast Dome can be controlled directly from the control panel of the DVR, or from keyboard.

  • Page 28: Fast Dome With Pc Control

    Fast Dome with PC Control PC telemetry remote controls fast dome with standard RS-485 data format (format: N, 8, 1 Baud Rate 9600 bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by Li-Lin to control the dome.

  • Page 29: Operation

    OPERATION Initial Power Up Inspection After the power is first applied to a dome it will perform a self-test procedure. This calibrates and checks the basic functions of the dome, control is not possible during this self-test period. Once the camera has stopped moving, it will then be ready to control. If preset positions and tours have been programmed into a dome and the power is turned off, the dome will enter the Auto Scan mode once the power is turned on again (after self-test period).

  • Page 30: Fast Dome Selection

    Fast Dome Selection To call out a dome controlling or setting To select 1st Fast Dome Push key 1 followed by CAM key. To select 64th Fast Dome Push key 6 then 4 followed by CAM key. When matrix system is used, select monitor before camera selection. Please refer to matrix system user manual.
  • Page 31 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF : MEDIUM 1. INITIAL SET 9. GAMMA 17. IRIS SPD : MEDIUM : FAST 2. AGC 10. PEDESTAL 18. ZOOM SPD : OFF : MEDIUM 3. SENS. UP 11.

  • Page 32: Focus Control

    Focus Control The focus function on Fast Dome can be set as Auto Focus or Manual Focus. Manual focus far Push FOCUS FAR key. The target will become farther. Focusing will stop when the key is released. (PIH-801 keyboard LCD displays "F=M") Manual focus near Push FOCUS NEAR key.
  • Page 33 After "Auto Focus" is selected, user has to push AUTO FOCUS key to activate auto focus function. After "One Shot" is selected, user has to push AUTO FOCUS key to activate one shot auto focus function. When "One Shot Focus" is activated, Fast Dome will only auto "one shot" focus on object under Auto Panning or Manual Zoom In/Zoom Out.

  • Page 34: Iris Control

    Manual Focus Speeds Switch: After above steps were completed, the selected manual focus speed is stored in Fast Dome. LENS SPEED To use the selected manual focus speed under lens control, user has to push WIPER before operation, otherwise manual focusing speed will be "MEDIUM" as default. To switch LENS SPEED back to "MEDIUM"...

  • Page 35: Horizontal 180 Instant Flip

    Setup Menu Item Selection Push joystick down to select 17th item "Iris Speed" on Menu Page 3. On "Iris SPD" push joystick left or right to make selection: FAST MEDIUM. To Exit Setup Menu CAM ESC Push key to exit menu, when finish or move joystick to select next item. AUX LIGHT Note : "Setup Initialize..."...

  • Page 36: Preset Positions Setting

    Preset Positions Setting Each dome can have 128 individual preset positions. Each preset stores the exact position of the camera and automatic pan, tilt ,zoom, focus and iris setting. Once the data is set, the preset can be recalled for viewing, or the presets can be set for auto pan. Only the first 16 preset positions of fast dome can be set to auto pan mode and first 6 preset positions are corresponding with the 6 alarm inputs.
  • Page 37 Setting Preset Speed The speed the dome travels to that preset position can be adjusted between 1 to 255 per second (the factory default is 0 /sec). PIH-800II : To set speed as 10 /sec: Push key 1 0 followed by F1 key, two beeps will be heard confirming that speed is set.

  • Page 38: Recalling Preset Positions

    Recalling Preset Positions Once the required preset positions have been stored in a dome, they may be quickly recalled, returning the dome to exact position. To recall 1st Preset Position: Push key 1 followed by PRESET key. The dome will move to that position in speed of 360 /sec. : 1 PRESET keys Ex.
  • Page 39 Changing Preset Data In order to change any preset position from the one stored, the dome must first be sent to that preset position. To change the 4th preset position of the Dome number 3, perform the following steps: Push 3 CAM to select Dome 3 Push 4 PRESET to go to 4th preset position Move joystick to bring camera to the desired view position.

  • Page 40: Deleting Preset Data

    Deleting Preset Data Sometimes it is necessary to delete the stored data. All the data can be cleared from a dome by pressing key 9 0 1 1 , followed by the CLR key. All 128 preset data will be erased. Push 9 0 1 1 , followed by CLR key.

  • Page 41: Alarm Output

    Release Mode Under Auto Pan Condition When an alarm is triggered under Auto Pan, fast dome will go to the relevant position at 360 /sec. After 60 seconds the alarm will be canceled automatically and back to Auto Pan mode. If more than one alarm is triggered, the fast dome will moves between alarmed points every 5 seconds and back to Auto Pan mode after 60 seconds.
  • Page 42 25X Fast Dome Function Setup PIH-7625 (25X Optical Lens) series provide on-screen setup menu, all functions can be selected and set via OSD Setup Menu. Recall Setup Menu CAM SETUP Push key to recall OSD menu. CTRL 1 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF...
  • Page 43 Initial Setting (Factory Default) To reset all functions back to initial factory setting. CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 1st item "Initial Set" on menu and move joystick left or right to make selection.

  • Page 44: Back Light Compensation

    Sensitivity Up (Enhancement) Sensitivity Up function allows user to select different Video Gain (Y Gain) control. (Auto/On/Off) AUTO : System auto turn on or off Video Gain Control function according to target's brightness. ON : Video Gain Control Enhancement always on. OFF : Video Gain Control Enhancement always off.
  • Page 45 Back Light Compensation Zone Selection One of five different zone can be selected for BLC. (Factory Default is Center) To select BLC zone : CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 5th item "BLC Region" on menu. Move joystick right or left to make selection : "Top Bottom Left...
  • Page 46 White Balance Mode Selection One of four different White Balance Modes can be selected. (Factory Default is ATW) ATW : Auto Trace White Balance, is a feedback system that automatically aligns the white balance by detecting the R-G and B-G before gamma correction processing. AWC : Auto White Balance Correction, is performed at a faster operating speed than ATW without an operation or other limitations.
  • Page 47 Gamma Adjustment (Brightness) 8 levels of Gamma (Brightness) can be adjusted. (Factory Default is 4) To adjust gamma level : CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 9th item "Gamma" on menu. Move joystick right or left to make selection : "0 ~ 7".
  • Page 48 MENU SETUP PAGE 2 MENU SETUP PAGE 2 9. GAMMA 9. GAMMA 16 selections 10. PEDESTAL 10. PEDESTAL 11. VHAPSL 11. VHAPSL 0~ F 12. VAPSL 12. VAPSL 13. HAPGL 13. HAPGL 14. HAPGH 14. HAPGH 15. VAPG 15. VAPG 16.
  • Page 49 IR Cut Switch One of three different IR Cut modes can be selected. (Factory Default is AUTO) AUTO : IR Cut filter auto switch according to Lux level. When light is over 5 Lux, IR Cut filter auto switch in and produce color image. When light drops below 3 Lux, IR Cut filter auto switch out and produce monochrome image, under monochrome mode sensitivity is increased to 0.01 Lux and can be use with IR lighting.
  • Page 50 SPECIFICATION Operational Manual Pan / Tilt Speed 0.18 ~ 180 /sec (8 stages) Preset Position Pan / Tilt Speed 1 ~ 255 /sec Preset Position Dwell Time 1 ~ 255 secretary Recall Preset Position Pan / Tilt Speed 360 /sec 180 Instant Flip Rotation Speed 360 /sec Pan Rotation...
  • Page 51 Optical Lens 17X Lens Focal Length f = 3.9 ~ 66.3mm 17X Lens Aperture Max F1.4 (wide) ~ F3.6 (telephoto) 17X Horizontal View Angle 50.9 (wide) / 4.2 (telephoto) 22X Lens Focal Length f = 3.9 ~ 86mm 22X Lens Aperture Max F1.6 (wide) ~ F3.6 (telephoto) 22X Horizontal View Angle 50.9 (wide) / 2.4 (telephoto)
  • Page 52 External Housing Electrical Power Supply 24Vac or 90Vac ~ 260Vac (Option) Input Voltage 12Vdc Power Consumption 7.5W Control Interface RS-485 (1 Input / 1 Output) RS-485 Voltage 5.6V Alarm Input 6 Inputs (Pull up) Alarm Input Voltage 5.6V Alarm Output 1 Output (NC or NO mode setting) Alarm Output Voltage 0.5A 120Vac / 1A 24Vdc...

  • Page 53: Quick Reference Table

    APPENDIX A * PIH-800II Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Tilt Left Push Joystick Left Push Joystick Right To Tilt Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out...
  • Page 54 * PIH-801 Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Tilt Left Push Joystick Left Push Joystick Right To Tilt Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out...
  • Page 55 APPENDIX B Trouble Shooting 1. No Power 1-1. Check power input connection 1-2. Check fuse on the PCB 1-3. Check connection between camera body and base 2. No Video 2-1. Check camera video output on camera 2-2. Check cable (damaged cable) 2-3.
  • Page 56 MERIT LI-LIN ENT. CO., LTD. Web site : www.meritlilin.com PLP-7000CSE-3...
