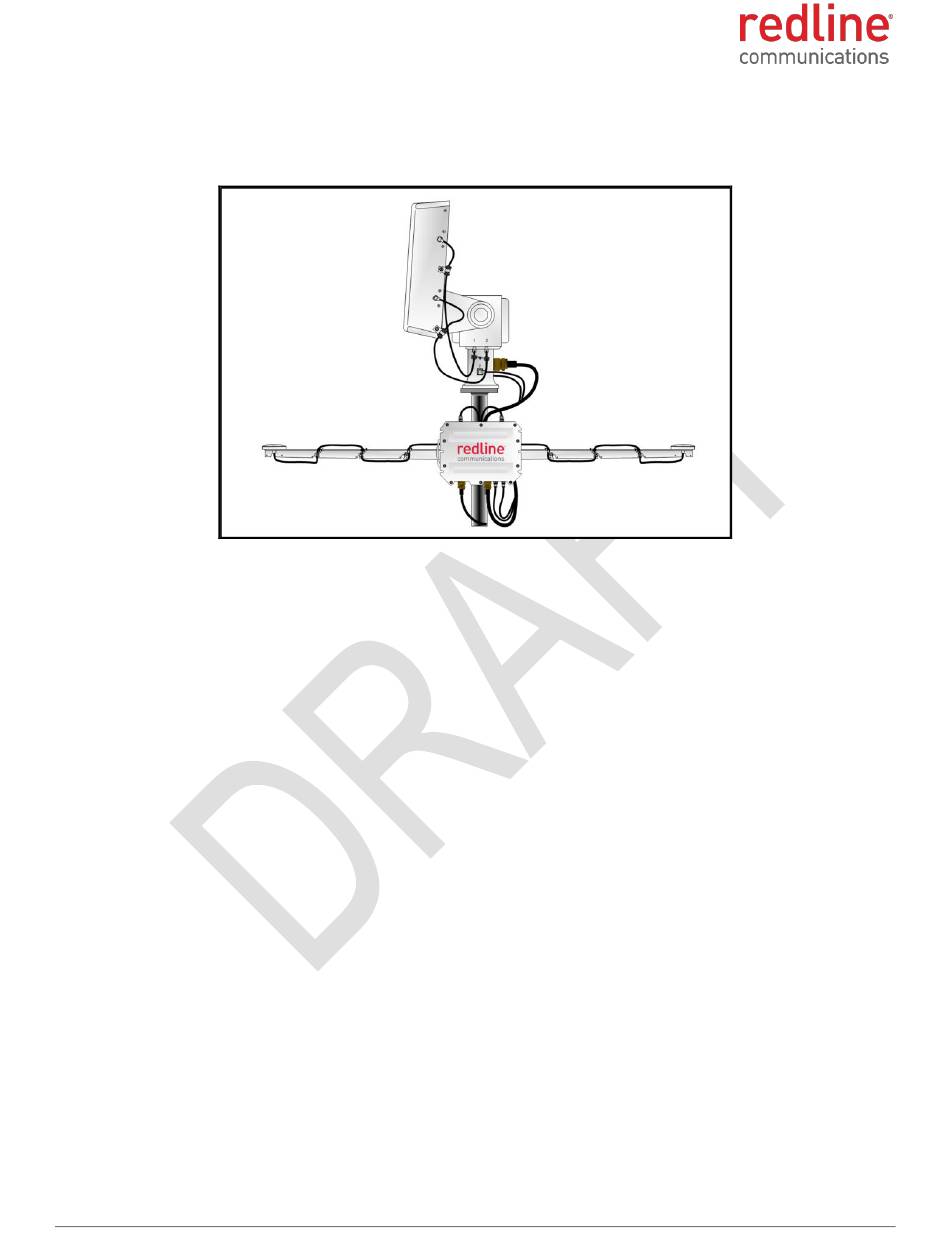

Redline RAS-Extend M Installation Manuallines

Auto-acquire wireless tcp/ip, automatic tracking solution

Hide thumbs

Table of Contents

Quick Links

Download this manual

Virtual Fiber™

Outdoor Wireless TCP/IP Transport

Auto-Acquire Wireless TCP/IP

Automatic Tracking Solution

Installation Guidelines

Important Notices ................................................................... 9

System Features ................................................................... 15

Materials ................................................................................ 29

Site Survey ............................................................................ 30

Site Preparation .................................................................... 36

Assemble Kits ....................................................................... 39

Install Equipment .................................................................. 45

Reference .............................................................................. 55

70-00174-04-00

RAS-Extend M

Page

of 58

July 16, 2014

Table of Contents

Summary of Contents for Redline RAS-Extend M

Page 1: Table Of Contents
Important Notices ..............9 System Features ..............15 Materials ................29 Site Survey ................30 Site Preparation ..............36 Assemble Kits ............... 39 Install Equipment ..............45 Reference ................55 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 2 This manual describes operation using software release v2.27 and may include features that are different or unavailable in previous software releases. Some RAS-Extend M features are controlled by options keys and are available only on specific revisions of hardware systems. Refer to the individual product Release Notes for information about required software and availability of features.
Page 3 RDL-3000 RAS-Extend M Installation Guidelines Revision Log Date Item Description of Changes 20140707 First draft 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 4 Lightning Protection / Protection Contre la Foudre ........12 WEEE Product Return Process ............... 13 Service & Warranty Information ..............14 System Features ..............15 RAS-Extend M Wireless Terminal ..............18 Control & Power Out ..................18 Data and Power In ..................18 GPS Antenna In ................... 18 RF-1 / RF-2 ....................
Page 5 RDL-3000 RAS-Extend M Installation Guidelines 2.11 GPS Antenna Kit ....................28 Rover GPS Antenna ..................28 Base GPS Antenna ..................28 Materials ................29 Site Survey ................30 General layout Options ..................30 Survey for RF Access to Sector Controllers ..........31 Survey for GPS Satellites ................
Page 6 RDL-3000 RAS-Extend M Installation Guidelines 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 7 Figure 2: Features: RAS-Extend M System ..............15 Figure 3: Features: RAS-Extend M System Components ..........16 Figure 4: Features - RAS-Extend M Wireless Terminal Ports ........18 Figure 5: Features: RAS-Extend M Wireless Terminal Dimensions ....... 19 Figure 6: Features: RAS-Extend M Antenna Positioner Ports ........20 Figure 7: Features: Antenna Positioner Dimensions ............
Page 8 RDL-3000 RAS-Extend M Installation Guidelines Figure 30: Preparation: Spatial Requirements - GPS Mounted Separately ....37 Figure 31: Preparation: Power Supply Mounting Options ..........38 Figure 32: Assembly- Antenna Positioner ..............39 Figure 33: Assembly: UHF Antenna Kit ................. 39 Figure 34: Assembly: Antenna RF Jumper Kit ...............
Page 9: Important Notices
General Warnings Redline recommendations for maximum safety include the following:  Do not operate microwave equipment without first having proper training or knowledge of microwave radio operation.
Page 10: Warning Symbols
Redline microwave radio equipment or those recommended by Redline. Electrocution Hazard / Risque D’électrocution Warning to Service Personnel Do not install Redline products near any type of power line. Should the antenna or related hardware come in contact with power lines, severe bodily harm or death could result! 70-00174-04-00 Proprietary Redline Communications ©...
Page 11: Radio Frequency Safety / Sécurité Des Fréquences Radio
RDL-3000 RAS-Extend M Installation Guidelines Attention au personnel du service Ne pas installer les produits Redline près n'importe quel type de ligne électrique. Si votre antenne ou du matériel connexe entrer en contact avec des lignes électriques, des blessures graves ou la mort pourraient en résulter! Radio Frequency Safety / Sécurité...
Page 12: Ul Information
RDL-3000 RAS-Extend M Installation Guidelines Table 1: Notice - Electrical Safety Specifications Class I EN 60950-1 All External Circuits TNV-1 as defined in EN 60950-1 All equipment must be grounded Le RDL-3000 du matériel a été testé pour la conformité aux normes de sécurité...
Page 13: Weee Product Return Process
WEEE Product Return Process In accordance with the WEEE (Waste from Electrical and Electronic Equipment) directive, 2002/96/EC, Redline Communications equipment is marked with the logo shown below. The WEEE directive seeks to increase recycling and re-use of electrical and electronic equipment. This symbol indicates that this product should not be disposed of as part of the local municipal waste program.
Page 14: Service & Warranty Information
 Redline does not endorse or support the use of outdoor cable assemblies: i) not supplied by Redline, ii) third-party products that do not meet Redline's cable and connector assembly specifications, or iii) cables not installed and weatherproofed as specified in the RDL-3000 Installation Guidelines manual for each product model.
Page 15: System Features
The RAS-Extend M auto-acquire wireless system delivers secure high-speed TCP/IP Ethernet network access to vessels and floating platforms operating anywhere in a Redline wireless coverage area. The RAS-Extend M mounts on a prepared mast and provides touchless continuous antenna alignment.
Page 16: Figure 3: Features: Ras-Extend M System Components
RAS-Extend designed manufactured Redline Communications, a world leader in design and production of outdoor wireless TCP/IP transport for mission critical applications. Figure 3: Features: RAS-Extend M System Components 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 17: Table 3: Features- Ras-Extend M System Components
RDL-3000 RAS-Extend M Installation Guidelines Table 3: Features- RAS-Extend M System Components Item Description Wireless Terminal RAS-Extend M wireless terminal. Antenna Positioner RAS-Extend M antenna positioner. IMPORTANT: The installer must provide a fabricated mounting plate properly affixed to the mast top and prepared with bolt holes positioned as described in this document.
Page 18: Ras-Extend M Wireless Terminal
RF signals from attached (active) GPS antenna systems. The GPS system is used to determine the location, speed and direction of the RAS-Extend M system. Pre- terminated cables are provided to connect the wireless terminal to the GPS antennas.
Page 19: Figure 5: Features: Ras-Extend M Wireless Terminal Dimensions
RDL-3000 RAS-Extend M Installation Guidelines Figure 5: Features: RAS-Extend M Wireless Terminal Dimensions 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 20: Ras-Extend M Antenna Positioner
The RAS-Extend M antenna positioner unit controls the alignment of the antenna for the RAS-Extend M system. Two pairs of RF ports conduct the RF signals between the static base ports and the moving platform. Control signals and power are provided by the RAS-Extend M wireless terminal.
Page 21: Figure 7: Features: Antenna Positioner Dimensions
RDL-3000 RAS-Extend M Installation Guidelines Figure 7: Features: Antenna Positioner Dimensions Figure 8: Features: Antenna Positioner Dimensions 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 22: Power Supply
RDL-3000 RAS-Extend M Installation Guidelines Power Supply The RAS-Extend M Power Supply unit provides the Ethernet connection to the local network and the primary power input for the RAS-Extend M system. Figure 9: Features: Power Supply Ports Power In Port The Power In port (3-pin circular / M) for 120/240 50/60 Hz VAC power.
Page 23: Figure 10: Features: Power Supply Dimensions
RDL-3000 RAS-Extend M Installation Guidelines Figure 10: Features: Power Supply Dimensions 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 24: Mimo Directional Antenna System
RDL-3000 RAS-Extend M Installation Guidelines MIMO Directional Antenna System The RAS-Extend M UHF system uses a 475 mm (19 in) directional antenna. Figure 11: Features: UHF MIMO Antenna Ports RF-1 / RF-2 The two RF ports (N-Type / M) conduct RF signals between the antenna system and the wireless terminal.
Page 25: Wireless Terminal Mounting Bracket
RDL-3000 RAS-Extend M Installation Guidelines Wireless Terminal Mounting Bracket Figure 13: Features: Wireless Terminal Mounting Bracket Dimensions AC Power Plug Figure 14: Features: Power Plug Dimensions 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 26: Antenna Rf Jumpers
Ethernet Cable The RAS-Extend M Ethernet cable conducts data between the RAS-Extend M system and the local network. This cable connects to the RAS-Extend M Power Supply unit. Figure 16: Features: Ethernet Data Cable The Ethernet cable and connector are shielded. The circular connector is weatherproof when installed.
Page 27: Power, Control & Rf Cable
RDL-3000 RAS-Extend M Installation Guidelines Power, Control & RF Cable The Power, Control & RF Cable is the main connection between the RAS-Extend M wireless terminal and the RAS-Extend M antenna positioner. The 10-pin to 43-pin cable transfers power and control signals from the wireless terminal to the antenna positioner unit.
Page 28: Gps Antenna Kit
2.11 GPS Antenna Kit The RAS-Extend M uses a set of two (2) active-type GPS antennas. The two RF ports (TNC / F) conduct RF signals between the GPS antenna system and the wireless terminal (N-Type / F). using a TNC / M to N-type / M cable.
Page 29: Materials
Materials Review list of materials to be provided by the installer Installation of the RAS-Extend M equipment requires additional equipment and materials supplied by the installer. The following list is a guideline only, and additional materials may be required based on local conditions at each installation site.
Page 30: Site Survey
Site Survey General layout Options The preferred installation configuration is to mount the GPS antenna bracket on the same mast (below) the RAS-Extend M antenna positioner and wireless terminal. Figure 22: Survey: General Layout Options 70-00174-04-00 Proprietary Redline Communications © 2014...
Page 31: Survey For Rf Access To Sector Controllers
Survey for RF Access to Sector Controllers For best results: Mount the RAS-Extend M in a location that provides an unobstructed view of the horizon in 360 degrees. Avoid mounting the RAS-Extend M antenna close to metal objects that may block or reflect the signal.
Page 32: Survey For Gps Satellites
It is important to conduct a site survey before installing the GPS antenna. A poorly installed or badly located GPS antenna can cause interference and will not provide the necessary information for correct operation of the RAS-Extend M system. Figure 24: Survey: GPS Antenna The GPS antenna must have a clear view of the sky, preferably to within 10 degrees of horizon in all directions.
Page 33: Survey Network (Ethernet) Connection
RDL-3000 RAS-Extend M Installation Guidelines Survey Network (Ethernet) Connection A pre-terminated Ethernet cable is supplied with the RAS-Extend M system. This cable is pre-terminated with shielded RJ-45 connectors and a pre-assembled weatherproof gland for connection to the Power Supply. IMPORTANT: The maximum recommended total length of the Ethernet cable is 100 m (330 ft) from the wireless terminal to the network equipment.
Page 34: Survey Power Source
Survey Power Source The installer must: 1. Provide a compatible power source for the RAS-Extend M system. 2. Provide a power cord from the AC source to the Power Supply. A mating weatherproof plug is provided for connection to the adapter. Use the following system...
Page 35: Survey Spatial Requirements
RDL-3000 RAS-Extend M Installation Guidelines Survey Spatial Requirements The installer must prepare and install a mast for mounting RAS-Extend M antenna positioner, wireless terminal and GPS antenna system. Some installations may require a separate mast for the GPS antenna bracket.
Page 36: Site Preparation
Site Preparation Mast & Mounting Plate for Antenna Positioner The installer must prepare a mounting platform for the RAS-Extend M antenna positioner. The mast diameter must be 45 - 120 mm (1.75 - 4.5 in). Table 8: Preparation: Mast Loading Incl.
Page 37: Optional Second Mast For Gps System Arm
Optional Second Mast for GPS System Arm Based on the results of the GPS site survey, It may be desired to mount the GPS antenna arm separately form the RAS-Extend M antenna positioner and wireless terminal. The antenna mounting bracket is compatible with masts 45-120 mm (1.75-4.50 in) in diameter.
Page 38: Mounting Plate For Power Supply Unit
RDL-3000 RAS-Extend M Installation Guidelines Mounting Plate for Power Supply unit. The installer must prepare a flat mounting platform or shelf for the RAS-Extend M Power Supply unit. This unit may be mounted using the supplied metal feet, on plate prepared for direct mount, or with appropriate strapping.
Page 39: Assemble Kits
RDL-3000 RAS-Extend M Installation Guidelines Chapter 6 Assemble Kits The major system components should be assembled from the supplied kits and be tested and weatherproofed before final installation. Assemble Antenna Positioner and Antenna The UHF antenna and antenna positioner are supplied as two separate kits. Locate all parts from both kits before assembling the unit.
Page 40: Antenna Rf Jumper Kit
Figure 34: Assembly: Antenna RF Jumper Kit 6.1.4 Assemble UHF Antenna on Positioner The RAS-Extend M antenna positioner may be installed with the UHF antenna oriented in the out-of-box position. Figure 35: Assembly: Stand-Alone Wireless Terminal Bracket Assembly Table 9: Assembly: UHF Antenna to Antenna Positioner...
Page 41: Figure 36: Assembly: Positioner + Antenna Weatherproofing
RDL-3000 RAS-Extend M Installation Guidelines Figure 36: Assembly: Positioner + Antenna Weatherproofing IMPORTANT: Do NOT support the antenna positioner by holding only the UHF antenna. ALWAYS provide direct support when lifting and moving the antenna positioner 70-00174-04-00 Proprietary Redline Communications © 2014...
Page 42: Assemble Gps Antenna Kit
RDL-3000 RAS-Extend M Installation Guidelines Assemble GPS Antenna Kit Figure 37: Assembly: - GPS Antenna System Kit Figure 38: Assembly: GPS Arm Assembly Drawing - Detail 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 43: Figure 39: Assembly: Gps Antenna System Assembly Drawing
RDL-3000 RAS-Extend M Installation Guidelines Figure 39: Assembly: GPS Antenna System Assembly Drawing Install GPS Antenna Cable on Arm It is recommended to install the GPS antenna cable before mounting the antenna arm on the mast. Depending on the antenna cable length to be installed, use the following diagram to determine the correct cabling method.
Page 44: Wireless Terminal Mounting Plate
Antenna Kit. Figure 41: Assembly: Wireless Terminal Mounting Bracket If the GPS antenna arm is mounted more than 1.5 m (4 ft) from the RAS-Extend M positioner, use the supplied stand-alone mounting bracket kit. Figure 42: Assembly: Wireless Terminal Stand-Alone Mounting Bracket Kit 70-00174-04-00 Proprietary Redline Communications ©...
Page 45: Install Equipment
RDL-3000 RAS-Extend M Installation Guidelines Chapter 7 Install Equipment It is recommend to install the system components in the order presented in this section. Mount Antenna Positioner on Mast Figure 43: Installation: Mount Antenna Positioner 70-00174-04-00 Proprietary Redline Communications © 2014...
Page 46: Mount Gps Antenna System And Wireless Terminal
RDL-3000 RAS-Extend M Installation Guidelines Mount GPS Antenna System and Wireless Terminal 7.2.1 Basic GPS Antenna Alignment (Base and Rover) Figure 44: Installation: Mount GPS Antenna System GPS Mounted Separately Installing the 6 m GPS Antenna Cables Check the following items before routing the antenna cable: ...
Page 47: Gps Antenna Alignment (Base And Rover)
RDL-3000 RAS-Extend M Installation Guidelines 7.2.2 GPS Antenna Alignment (Base and Rover) For accurate tracking the GPS antenna system must be correctly aligned with the movement of the vessel/platform. Important: The Base and Rover GPS antennas establish the orientation of the antenna positioner system.
Page 48: Mount Wireless Terminal
RDL-3000 RAS-Extend M Installation Guidelines Mount Wireless Terminal If the GPS antenna arm is mounted more than 1.5 m (4 ft) from the RAS-Extend M positioner, the wireless terminal must be mounted separately using the supplied stand- alone mounting bracket.
Page 49: Figure 48: Installation: Stand-Alone Wireless Terminal Bracket Kit
RDL-3000 RAS-Extend M Installation Guidelines If the GPS antenna arm is mounted remotely from the RAS-Extend M system, the wireless terminal must be mounted using the stand-alone mounting bracket supplied with each system. Figure 48: Installation: Stand-Alone Wireless Terminal Bracket Kit...
Page 50: Install Power, Control & Rf Cable
RDL-3000 RAS-Extend M Installation Guidelines Install Power, Control & RF cable The Power, Control & RF Cable is the main connection between the RAS-Extend M wireless terminal and the RAS-Extend M antenna positioner. The 10-pin to 43-pin cable transfers power and control signals from the wireless terminal to the antenna positioner unit.
Page 51: Install Data And Power Cable (To Power Adapter)
RDL-3000 RAS-Extend M Installation Guidelines Install Data and Power Cable (to Power Adapter) The RAS-Extend M Power & Data cable conducts data between the RAS-Extend M power adapter and the wireless terminal. The 11-pin circular connectors are weatherproof when installed.
Page 52: Install Ethernet Cable
RDL-3000 RAS-Extend M Installation Guidelines Install Ethernet cable A pre-terminated Ethernet cable is supplied with the RAS-Extend M system. This cable is pre-terminated with shielded RJ-45 connectors and a pre-assembled weatherproof gland for connection to the Power Supply. IMPORTANT: The maximum recommended total length of the Ethernet cable is 91.5 m (300 ft).
Page 53: Install Power Cable & Power Plug
RDL-3000 RAS-Extend M Installation Guidelines Install Power Cable & Power Plug The installer must prepare the power cord for attachment to the RAS-Extend M Power Supply unit. The AC power adapter is supplied with a non terminated weatherproof power connector. The installer must provide the power cable and terminate the cable to the power plug in accordance with the following wiring and assembly diagrams.
Page 54: Figure 54: Installation: Power Supply Ac Power Connector
RDL-3000 RAS-Extend M Installation Guidelines Figure 54: Installation: Power Supply AC Power Connector 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 55: Reference
Rubber mastic putty or duct sealing putty must also be used to complete the weatherproofing. The professional installer may use his own weatherproofing materials provided they are not silicon-based Redline does not recommend silicon seal or glue as these materials are difficult to apply accurately, can leave gaps, and are difficult to remove.
Page 56: Figure 56: Procedures - Rf Port - Weatherproofing Pt-2
RDL-3000 RAS-Extend M Installation Guidelines Figure 56: Procedures - RF Port - Weatherproofing Pt-2 Continue to wrap the tape tightly along the cable. Figure 57: Procedures - RF Port - Weatherproofing Pt-3 Work the mastic putty well into the area between the connector and the body of the Ellipse TMA system.
Page 57 RDL-3000 RAS-Extend M Installation Guidelines 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
Page 58 Virtual Fiber™ Outdoor Wireless TCP/IP Transport 302 Town Centre  Markham, Ontario  Canada  L3R 0E8 www.rdlcom.com 70-00174-04-00 Proprietary Redline Communications © 2014 Page of 58 July 16, 2014...
