IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*BODY FRAME MOUNT
*DRILLING/TRIMMING NOT REQUIRED

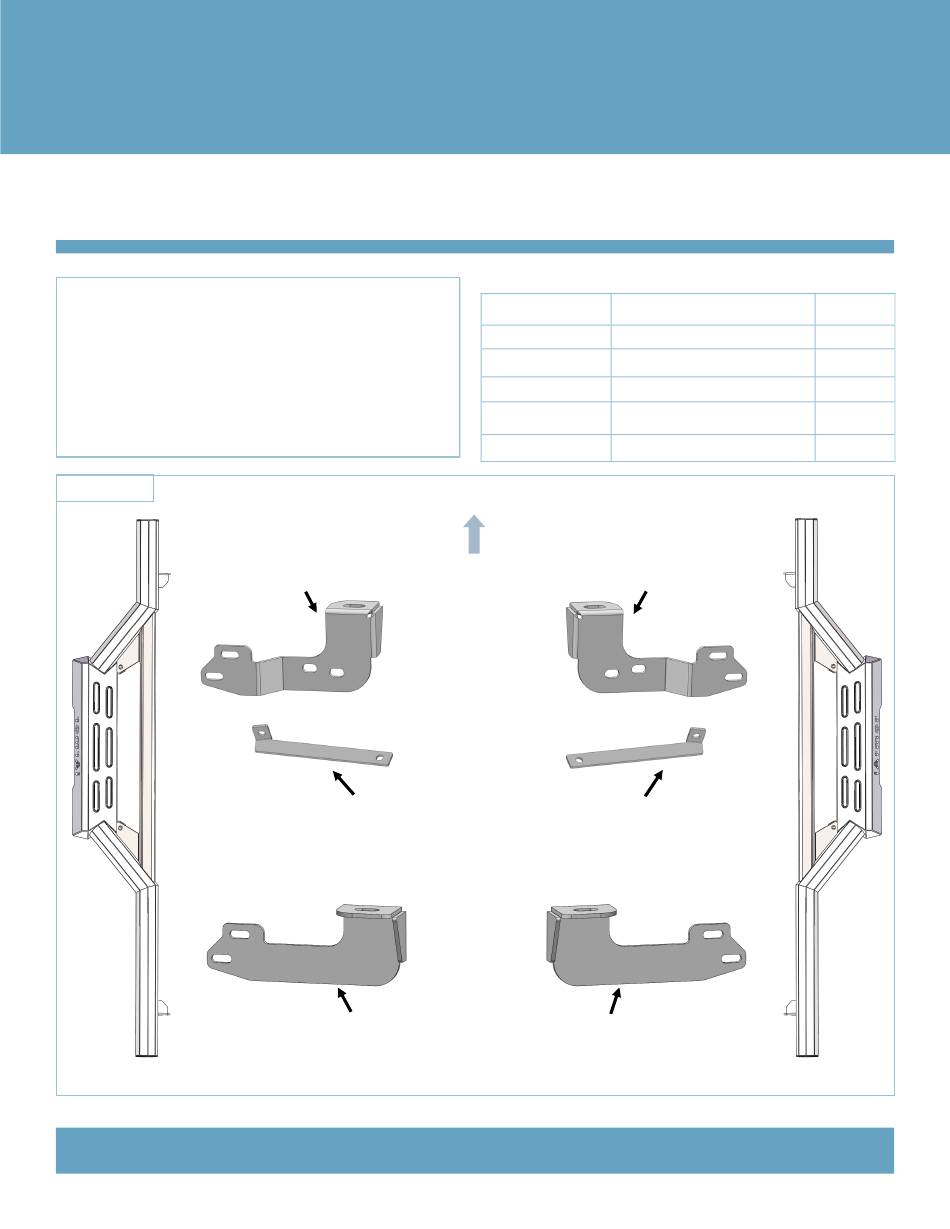

PART LIST
Driver Side
iArmor
Driver Front Mounting
Bracket (DFM)
Driver Front Support
Bracket (DFS)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mount-
ing Bracket (PFM)
Passenger Front Support
Passenger Rear Mounting
Bracket (PRM)
1
®
PART#: IA-W007
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Bracket (PFS)
Passenger Side
Rev. 20220601
Required
X
X
√
X
X
Advertisement
Related Manuals for iArmor EDGE
Summary of Contents for iArmor EDGE
- Page 1 ® IARMOR EDGE™ PART#: IA-W007 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package (For Brackets & Step Bars Installation) Item Description Item Description M10 Nut Plates M10X1.5 Hex Nuts M10X1.5-30 Hex Bolts M10X1.5-25 Hex Bolts M10 Flat Washers M10X1.5 Nylon Lock Nuts M10 Lock Washers Customer Support: info@iarmorauto.com Rev. 20220601...
- Page 3 ® The instruction here is for your reference only. We strongly Front recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Starting from the passenger side of the vehicle. Remove the front body mount bolt, (Fig 1).
- Page 4 ® (1) M10X1.5-30mm Hex Bolt (1) M10 Lock Washer STEP 4 (1) M10 Flat Washers Front Attach the flat end of the Passenger Front Support Bracket (PFS) to the installed M10 Nut Plate with (1) M10X1.5-30mm Hex Bolt, (1) M10 Flat Washer and (1) M10 Lock Washer, (Figs Push up 4 &...
- Page 5 ® Rear STEP 7 Factory Body Mount Bolt Move to the other side of the vehicle. Repeat Steps 1-6 for the other side step bar installation. (Fig 7) Passenger Rear Mounting Bracket Installation STEP 6 Attention Do periodic inspections to the installation to make sure that all hardware is secure and tight.
