Vivo MOUNT-VWSF1 Instruction Manual

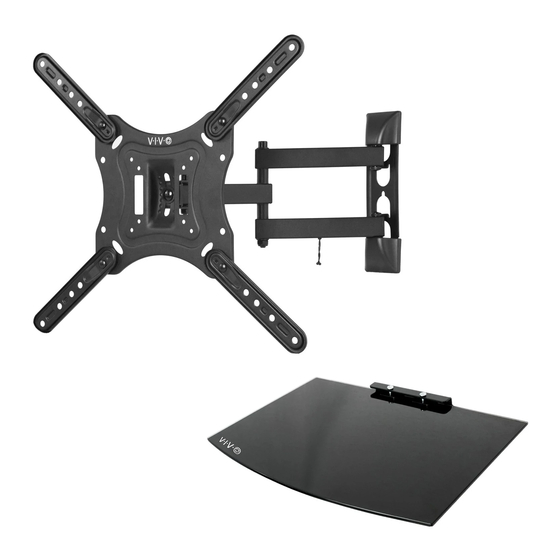

Tv wall mount and entertainment shelf

Download this manual

TV Wall Mount and Entertainment Shelf

Instruction Manual

SKU: MOUNT-VWSF1,W

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

https://vivo-us.com/products/mount-vwsf1

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

help@vivo-us.com

www.vivo-us.com

Chat live with an agent!

309-278-5303

Need help?

Do you have a question about the MOUNT-VWSF1 and is the answer not in the manual?

Page 1 TV Wall Mount and Entertainment Shelf Instruction Manual SKU: MOUNT-VWSF1,W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vwsf1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
Page 3 STEP 2 STEP 5 STEP 6 400m m Mount VESA Adapters (D) to Insert Plastic Covers (B) as shown in diagram. Attach Cable Clip (C) to bottom of Mount (A). 300m m VESA Plate on Mount (A) using M6x15mm Screws (S-A) and M6 Nuts (S-C) in the appropriate configuration to match your television mounting holes.
Page 4 STEP 1 (Continued) STEP 4 Slide Shelf (F) into Clips (G). OPTION B: Concrete/Brick Wall Using Shelf Bracket (E) as a guide, mark mounting holes on wall. With a 5/16” bit, drill approximately 2.2” into wall. Insert Concrete Anchors (W-B2), ST6x55mm Bolts (W-A2) and M6 Washers (W-C2) to mount the Shelf Bracket (E) onto wall as shown in diagram.
Page 5 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
