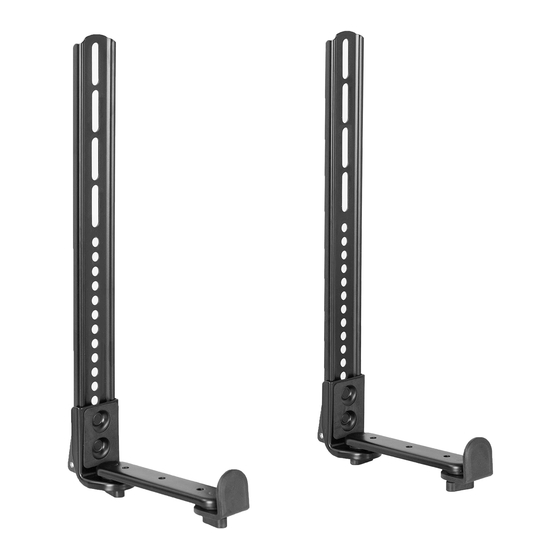

Soundbar speaker tv mount, vesa mount type: plate

Advertisement

Quick Links

Soundbar Speaker TV Mount
VESA mount type: Plate
Instruction Manual
SKU: MOUNT-SPSB5
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-spsb5
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-SPSB5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-SPSB5

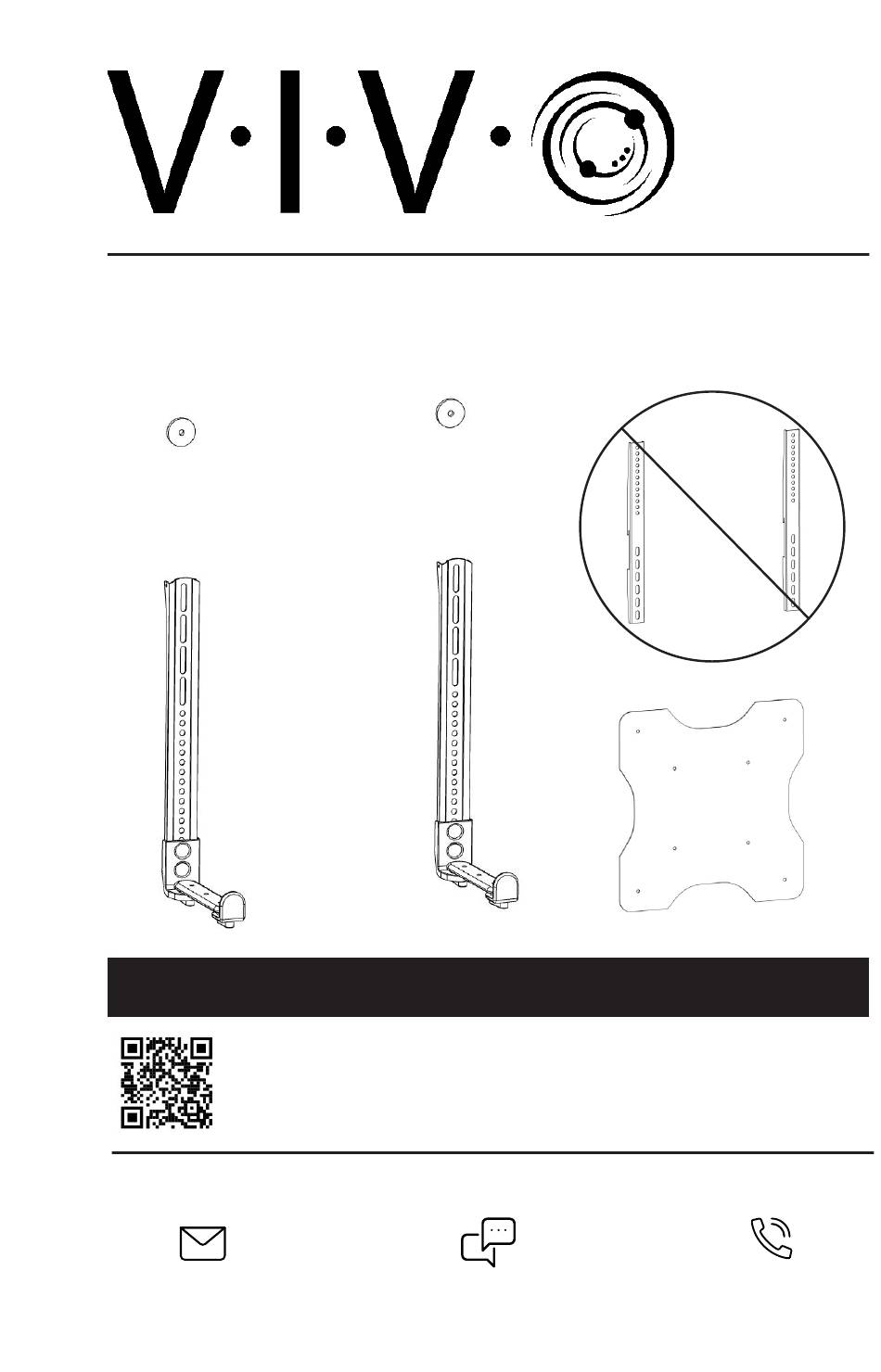

  • Page 1 Soundbar Speaker TV Mount VESA mount type: Plate Instruction Manual SKU: MOUNT-SPSB5 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-spsb5 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Under TV Mount the Support Arms (B) to the first and third holes of the VESA Brackets (A) using the M8 Flange Nuts (S-A). Tighten with the Wrench (T-A). OPTION B: Over TV Mount the Support Arms (B) to the first and third holes of the VESA Brackets (A) using the M8 Flange Nuts (S-A).
  • Page 4 STEP 2 Determine the correct mounting height for the assembled brackets. For under TV mounting, ensure the distance between the Support Arms (B) is equal to or greater than the height of the soundbar to be installed. For over TV mounting, ensure the space between the support arm knobs is at least 5mm (0.2”) above the top edge of the TV.
  • Page 5 STEP 2 (Continued) OPTION A: Under TV Install the VESA Brackets (A) and 40x6mm Pads (S-B) on the back of the TV with VESA plate from the TV mount, and secure using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers (M-H) and Spacers (M-I, M-J) if needed.
  • Page 6 STEP 2 (Continued) OPTION B: Over TV Install the VESA Brackets (A) on the back of the TV with VESA plate from the TV mount, and secure using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers (M-H) and Spacers (M-I, M-J) if needed.
  • Page 7 STEP 3 Loosen the knobs on the Support Arms (B). Place the soundbar on the Support Arms (B), adjust the angle of the support arms to secure the soundbar, then retighten the knobs.
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
