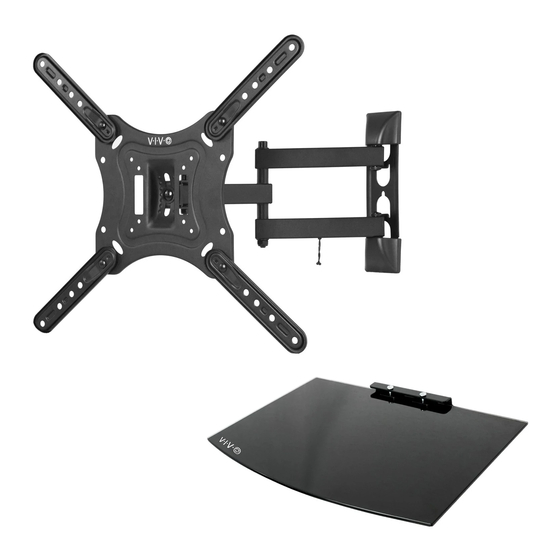

TV Wall Mount and Entertainment Shelf
Instruction Manual
SKU: MOUNT-VWSF1
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vwsf1
help@vivo-us.com
www.vivo-us.com
1-800-371-5654
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-VWSF1
Summary of Contents for Vivo MOUNT-VWSF1
- Page 1 TV Wall Mount and Entertainment Shelf Instruction Manual SKU: MOUNT-VWSF1 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vwsf1 help@vivo-us.com www.vivo-us.com 1-800-371-5654...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 1-800-371-5654. - Page 3 STEP 2 STEP 5 STEP 6 Mount VESA adapters (D) to VESA 400m m Insert plastic covers (B) as shown in diagram. Attach cable management clip (C) to bottom of 300m m plate using bolts (E) and nuts (F) mount (A). in the appropriate configuration to match your television mounting holes.
- Page 4 STEP 1 (Continued) STEP 4 Slide shelf (B2) into clips (C2). OPTION B: Concrete/Brick Wall Using shelf bracket (A2) as a guide, mark mounting holes on wall. With a 5/16” bit, drill approximately 2.2” into wall. Insert concrete anchors (W-B2), bolts (W-A2) and washers (W-C2) to mount the shelf bracket (A2) onto wall as shown in diagram.
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
