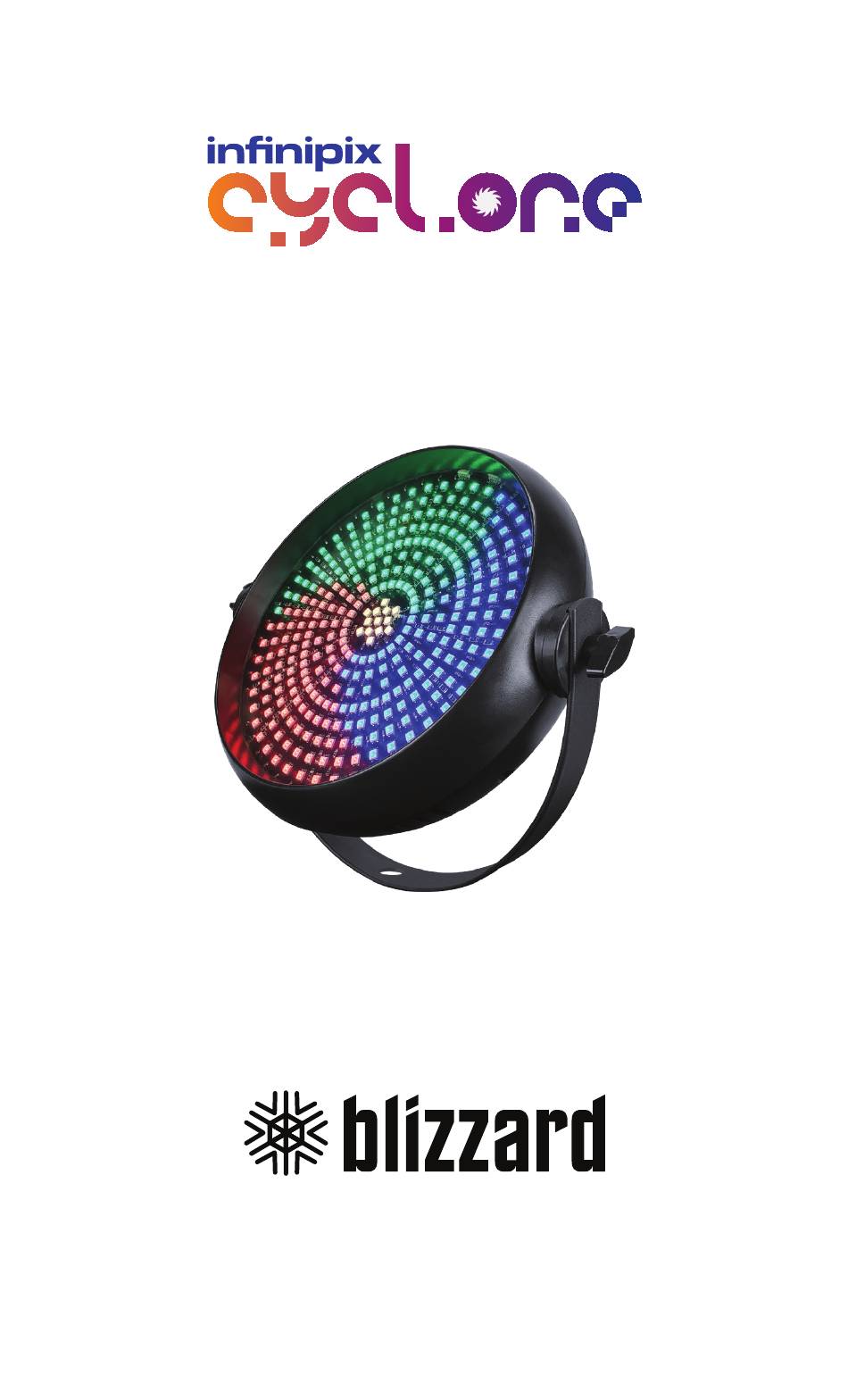

- Page 1 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2022...
-
Page 2: Table Of Contents
Auto Mode, Sound Active, & Lost DMX Settings Manual Mode 5. Appendix Keeping Your InfiniPix™ Cyclone As Good As New Returns (Gasp!) Shipping Issues Tech Specs! Dimensional Drawings Page 2 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 3: Getting Started
Disclaimer: The information contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. We reserve the right to update the existing, or create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 5: Meet The Infinipix™ Cyclone
What it does Dimmer (0% - 100%) Strobe Red Intensity (0% <--> 100%) Green Intensity (0% <--> 100%) Blue Intensity (0% <--> 100%) Pattern Effects Color Macros Effect Speed Page 5 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 6: Infinipix™ Cyclone Pin-Up Picture
325 x 0.2W RGB 5050 Composite Housing SMD LEDs Mounting Bracket Locking Knobs The Rear Connections Cooling Vent +5V USB Menu Power Out DMX In DMX Out Power In Fuse Cooling Vent Page 6 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 7: Setup
• Maximum capacitance between conductors – 30 pF/ft. • Maximum capacitance between conductor & shield – 55 pF/ft. • Maximum resistance of 20 ohms / 1000 ft. • Nominal impedance 100 – 140 ohms Page 7 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Place a DMX Next terminator on the output of the final fixture to Fixture in Chain ensure best communication. DMX IN DMX OUT Page 8 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (M/S Mode)
Overhead mounting requires extensive experience, which includes calculating working load limits, knowledge of the installation material being used, and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself. Page 9 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 11: Pattern & Color Settings
2.) Use the <UP/DOWN> buttons highlight red (red), gren (green), blue (blue), dinn (master dimmer), or Stro (strobe) and press <ENTER>. 3.) Adjust the values for each selection as needed from 000-255. Page 11 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... - Page 12 Effect 45 - Swipe 6 segment on CCW, off CCW 138 <-> 140 Effect 46 - Swipe 2 segment overlap CW 141 <-> 143 Effect 47 - Swipe 2 segment overlap CCW Page 12 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC...
- Page 13 Color 20 - White (R: 255, G: 000, B: 150) 244 <-> 255 Color 21 - Color Mix (auto) Effect Speed 000 <-> 255 Speed (slow <--> fast) Page 13 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC...
-
Page 14: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 15: Tech Specs
Other Operating Modes DMX-512, M/S, and Standalone 2-year limited warranty, does not cover malfunction Warranty caused by damage to LEDs. Dimensional Drawings 4.6" 12.4" (313.2 mm) (117 mm) Page 15 InfiniPix™ Cyclone Manual Rev. A © 2022 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
