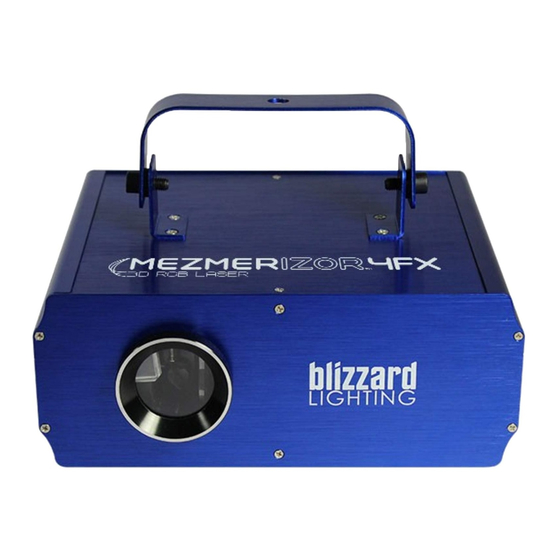

Blizzard Lighting Mezmerizor 4FX User Manual

Blizzard Lighting Mezmerizor 4FX User Manual

3d rgb laser

Advertisement

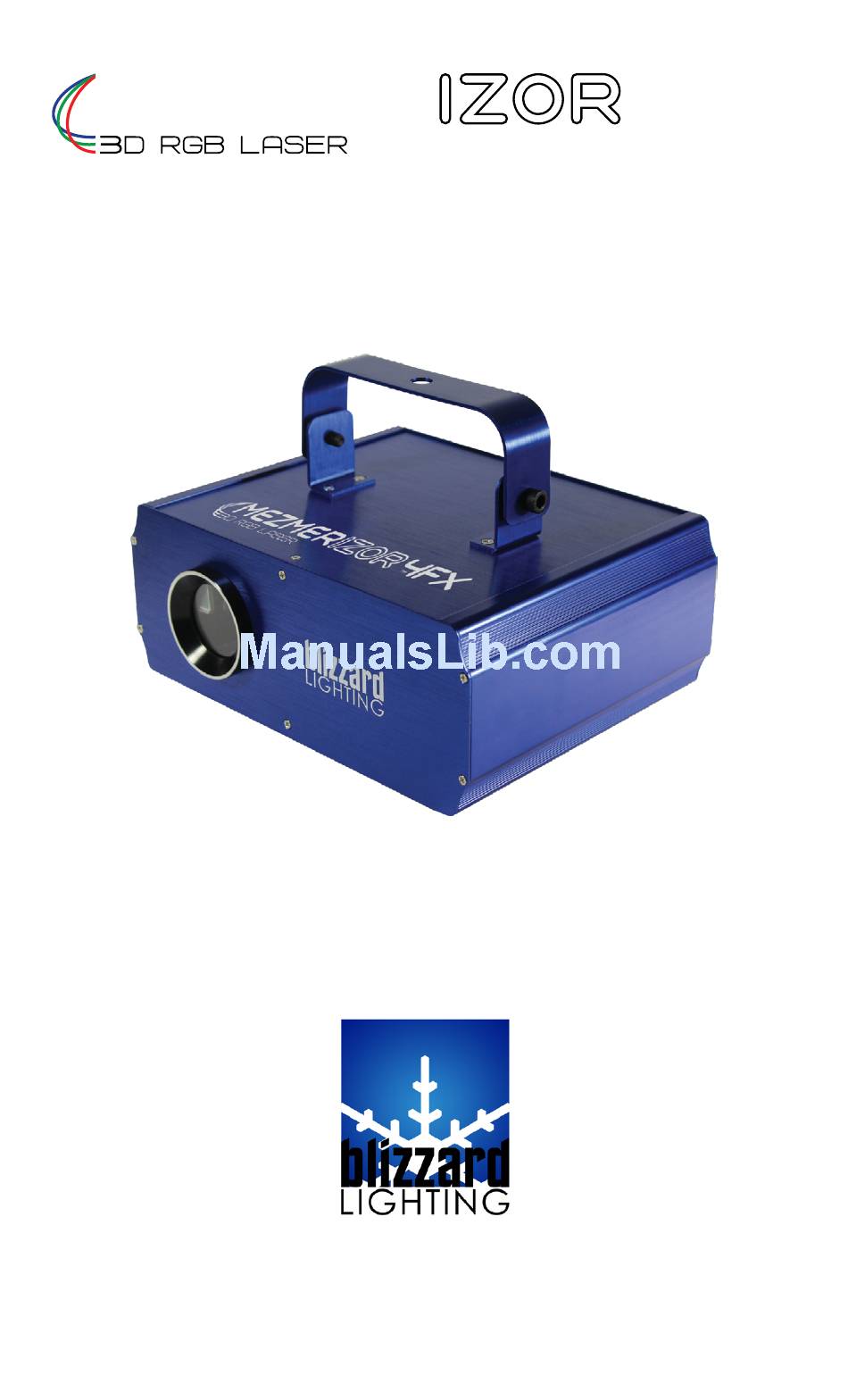

MEZMERIzoR

4FX
TM
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mezmerizor 4FX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blizzard Lighting Mezmerizor 4FX

  • Page 1: Mezmerizor

    MEZMERIzoR Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013...
  • Page 2: Table Of Contents

    Slave Mode DMX Mode DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Mezmerizor™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 3: Getting Started

    Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time.
  • Page 4: Laser Safety Requirements

    The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements at the location/ country of use. Page 4 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 5: Meet The Mezmerizor

    Pattern Mode Pattern 1 Selection Pattern 1 Color Pattern 2 Selection Pattern 2 Color Dual Pattern Mode Moving-X Moving-Y Dimmer-X Dimmer-Y Rotation Pattern Zoom Sine Wave Fluctuation Drawing Page 5 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 6: The Mezmerizor Pin-Up Picture

    Laser Output (A perture) Figure 2: The Rear Connections Mic Sensitivity On/Off Switch Cooling Fan Microphone Dipswitches Mic Indicator DMX In DMX Out AC Power Input Power Indicator Page 6 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 7: Setup

    Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 8: Cable Connectors

    (input). Note: It doesn’t matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (Master/Slave Mode)

    Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixtures overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 10: Operating Adjustments

    1.) Set dipswitch 10 to OFF. 2.) Connect DMX OUT of controller to DMX IN of 1st fixture. Daisy chain DMX OUT to DMX IN for any additional fixtures. 3.) Use dipswitches 1 – 9 to set the fixtures Starting DMX Address. Each dipswitch repre- sents a binary value in which the sum would equal the set address. Example: To set the fixtures starting DMX address to 12, dipswitch #10 would be OFF (DMX Mode), plus dipswitch #3 and #4 would be ON. (4+8=12). Dipswitch Value Page 10 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 11: Dmx Channel Values In-Depth

    Pattern 2 Color 110 <-> 119 R--G--B (Inflection Point) 120 <-> 129 RG--RB--GB--RGB (Inflection Point) 130 <-> 139 R--G--B--RG--RB--GB--RGB (Inflection Point) 140 <-> 179 R--G--B (Auto) 180 <-> 219 RG--RB--GB--RGB (Auto) 220 <-> 255 R--G--B--RG--RB--GB--RGB (Auto) Page 11 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 12: Troubleshooting

    Clear the fan of obstructions, or return the unit for service. Beam is Dim Check optical system and clean excess dust/grime. Also ensure that the 220V/110V switch is in the correct position, if applicable. Page 12 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 13: Appendix

    In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting con- trol. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 13 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 14: Keeping Your Mezmerizorā„¢ As Good As New

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 15: Tech Specs

    Standalone, Master/Slave, Sound Active Other Information If you go flying back through time and you see somebody else flying forward into the future, it’s probably best to avoid eye contact. 2-year limited warranty, does not cover malfunction Warranty caused by damage to LED’s. Page 15 Mezmerizor™ Manual - Rev. A (c) 2013 Blizzard Lighting, LLC...
  • Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
