Page 1: Torrent 90™ 90W Led Moving Head Beam
Blizzard Lighting, LLC www.blizzardlighting.com Wisconsin, USA Copyright (c) 2011... -
Page 2: Table Of Contents
Master/Slave (“Auto” or “Sound Active”) DMX Mode Custom Programming DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Torrent 90 Beam As Good As New Returns (Gasp!) Shipping Issues Tech Specs Photometrics Page 2 Torrent Beam 90 Manual Rev. A... -
Page 3: Getting Started
Getting It Out Of The Box Congratulations on purchasing a fi xture which will make you beam with pride (yuk, yuk)! Now that you’ve got your Torrent 90 Beam, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 Torrent Beam 90 Manual Rev. -

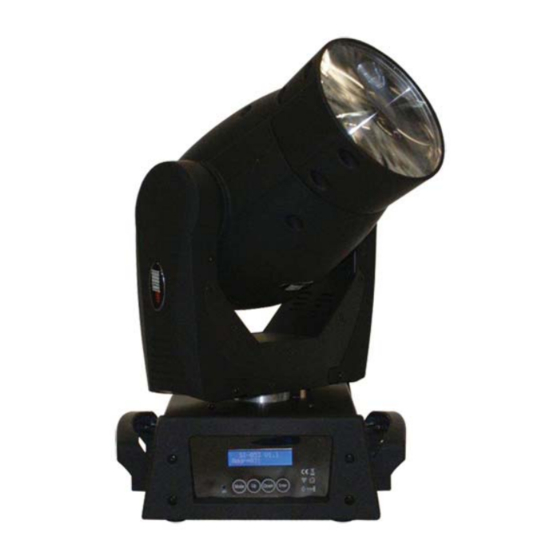

Page 5: Meet The Torrent 90™ Beam
Light source: 90W White, US-Made Luminus CBM-360 LED, 50,000 hrs DMX Quick Reference Channel What It Does Pan Fine (16-Bit) Tilt Tilt Fine (16-Bit) Color Gobo Wheel Shutter/Strobe Dimmer Prism Frost Pan/Tilt Speed Reset/Special Functions Page 5 Torrent 90 Beam Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 6: The Torrent 90 Beam Pin-Up Picture
Figure 1: The Torrent 90 Beam Pin-Up Picture Lens Head/Arms Carry Handle Readout Control Panel Figure 2: The Rear Connections DMX Out DMX In Power Switch Fuse Cover PowerCon In PowerCon Out Page 6 Torrent Beam 90 Manual Rev. A... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 Torrent 90 Beam Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Step 3: Connect other fi xtures in the chain from output to input as above. Place a DMX terminator on the output of the fi nal fi xture to ensure best communication. Page 8 Torrent Beam 90 Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fi xture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Torrent 90 Beam Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Press the <ENTER> button to access the menu function currently displayed or to enable a menu option. To return to the previous option or menu without changing the value, press the <MODE> button. Page 10 Torrent Beam 90 Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure & Adjustments
DMX values for each channel. For more information on DMX values available Gobo Wheel for each channel, see pages 14-15. Strobe Dimmer Focus Prism Frost Page 11 Torrent 90 Beam Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 12: Custom Programming
DMX channel #15. Gobo Wheel For more information on DMX values available for each channel, see pages 14-15. Strobe Dimmer Prism Frost Scene Time Page 12 Torrent Beam 90 Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 13: Dmx Channel Values
Prism Rotation Clockwise (Fast <-> Slow) 190 <-> 193 Stop 194 <-> 255 Prism Rotation Counter-Clockwise (Slow <-> Fast) Frost 000 <-> 199 No Frost 200 <-> 255 Frost Page 13 Torrent 90 Beam Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 14: Dmx Channel Values In-Depth
Internal Program #4 180 <-> 199 Internal Program #5 200 <-> 219 Internal Program #6 220 <-> 239 Internal Program #7 240 <-> 255 Internal Program #8 Page 14 Torrent Beam 90 Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 15: Troubleshooting
Verify proper mode of operation. Is the fi xture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 15 Torrent 90 Beam Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 16: Appendix
It is fl exible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 16 Torrent Beam 90 Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 17: Keeping Your Torrent 90 Beam As Good As New
Keeping Your Torrent 90 Beam As Good As New The fi xture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 18: Tech Specs
DMX Channels Input 3-pin XLR Male Output 3-pin XLR Female Favorite Bond Connery. 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 18 Torrent Beam 90 Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 19: Photometrics
Photometrics Beam Diameter / Lux: .25m / 40,125 .5m / 10,000 .75m / 4,200 1m / 2,500 Page 19 Torrent 90 Beam Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
