Summary of Contents for Blizzard Lighting The Puck RGB Unplugged

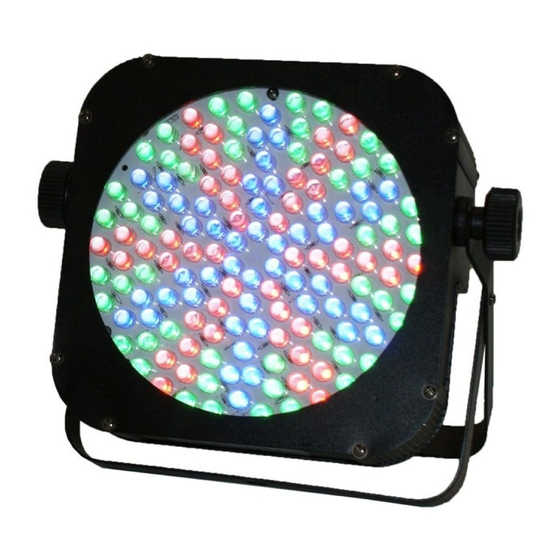

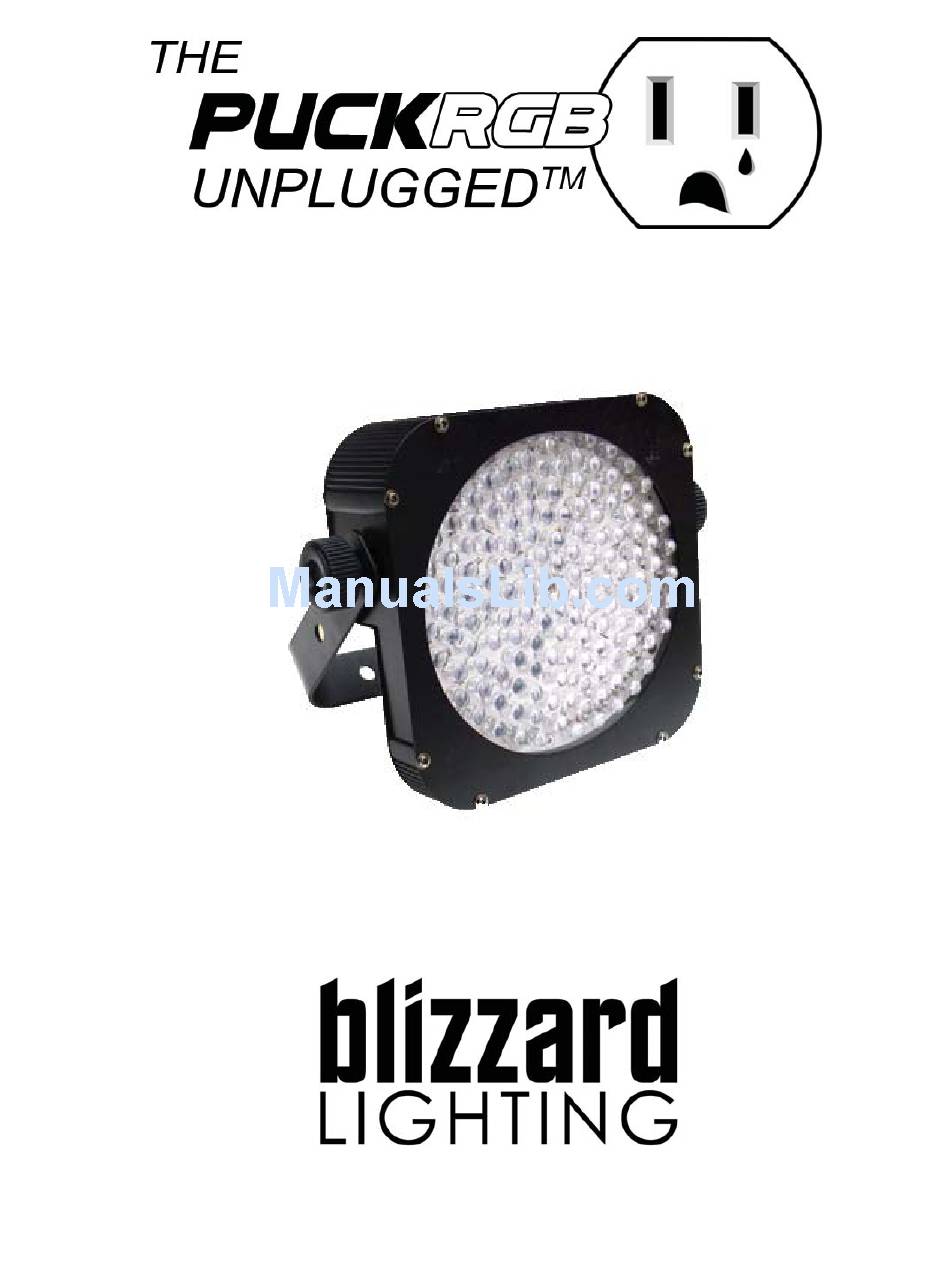

  • Page 1: The Puck: Unplugged™ Rgb Led Par Can

    Blizzard Lighting, LLC www.blizzardlighting.com Wisconsin, USA Copyright (c) 2011...

  • Page 2: Table Of Contents

    Custom Color Display Fixture running hour display Troubleshooting 5. Appendix Keeping The Puck: UNPLUGGED™ RGB As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 3: Lithium-Ion Battery Warnings & Information

    LITHIUM-ION BATTERY WARNINGS & INFO 1. CAUTION! TO REDUCE THE RISK OF INJURY AND/OR EQUIPMENT DAMAGE, DO NOT TAMPER WITH THE CHARGING CIR- CUITRY IN THIS FIXTURE. The use of other types of chargers may result in personal injury or equipment damage. Under no circumstances attempt to connect the battery pack to any power supplies or other equipment that is not specifi...

  • Page 4: Getting Started

    If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting W220 N1531 Jericho Ct. Suite E., Waukesha, WI 53186 USA support@blizzardlighting.com www.blizzardlighting.com 866.493.6025 Page 4 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 5: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 5 The Puck: Unplugged RGB Manual Rev.

  • Page 6: Meet The Puck: Unplugged™ Rgb Led Par Can

    Strobe (0-15 off, 16-255 strobe slow <-> fast) Color Macros (slow <-> fast) DMX Quick Reference (3-Channel Mode) Channel What It Does Red Intensity Green Intensity Blue Intensity Page 6 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 7: The Puck : Unplugged™ Rgb Pin-Up Picture

    Figure 1: The Puck: UNPLUGGED™ RGB Pin-Up Picture High Power Dual Mounting LEDs Yokes Ridiculously thin! Figure 2: The Rear Connections DMX In DMX Out AC Power In/Out LED Control Panel Microphone Page 7 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 8: Setup

    Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 8 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 9: Using This Fi Xture With The Wicicle® Wireless Dmx System

    The wiCICLE® receiver takes power from the fi xture’s battery pack, and will therefore have a minimal impact in runtime of the fi xture. Page 9 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 10: Operating Adjustments

    To Charge The Battery With The Fixture Off: 1.) Switch the top switch to position “II,” (CHARGE). 2.) Switch the bottom switch to position “--,” (OFF). Page 10 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 11: Master/Slave Mode

    4.) Select Color preset mode as instructed above, then select then <ENTER> to confi rm. To Show the Fixture Running Hours: FhrS 1.) Select from the control panel, then hit <ENTER> to confi rm. Page 11 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 12: Troubleshooting

    Verify proper mode of operation. Is the fi xture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 12 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 13: Appendix

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 13 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 14: Tech Specs

    Field-replacable Lithium-Ion, 11.1V 8.0Ah Type/Rating with built-in protection circuit. Coolness Factor Leventy Billion Percent Fixture: 2-year limited warranty. Battery: 1-year limited warranty covering Warranty failure only. Page 14 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...
  • Page 15 Thine pagest hath beenst lefteth blanketh on purposeth. Page 15 The Puck: Unplugged RGB Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...
  • Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
