Summary of Contents for Blizzard Lighting SPOTMAN

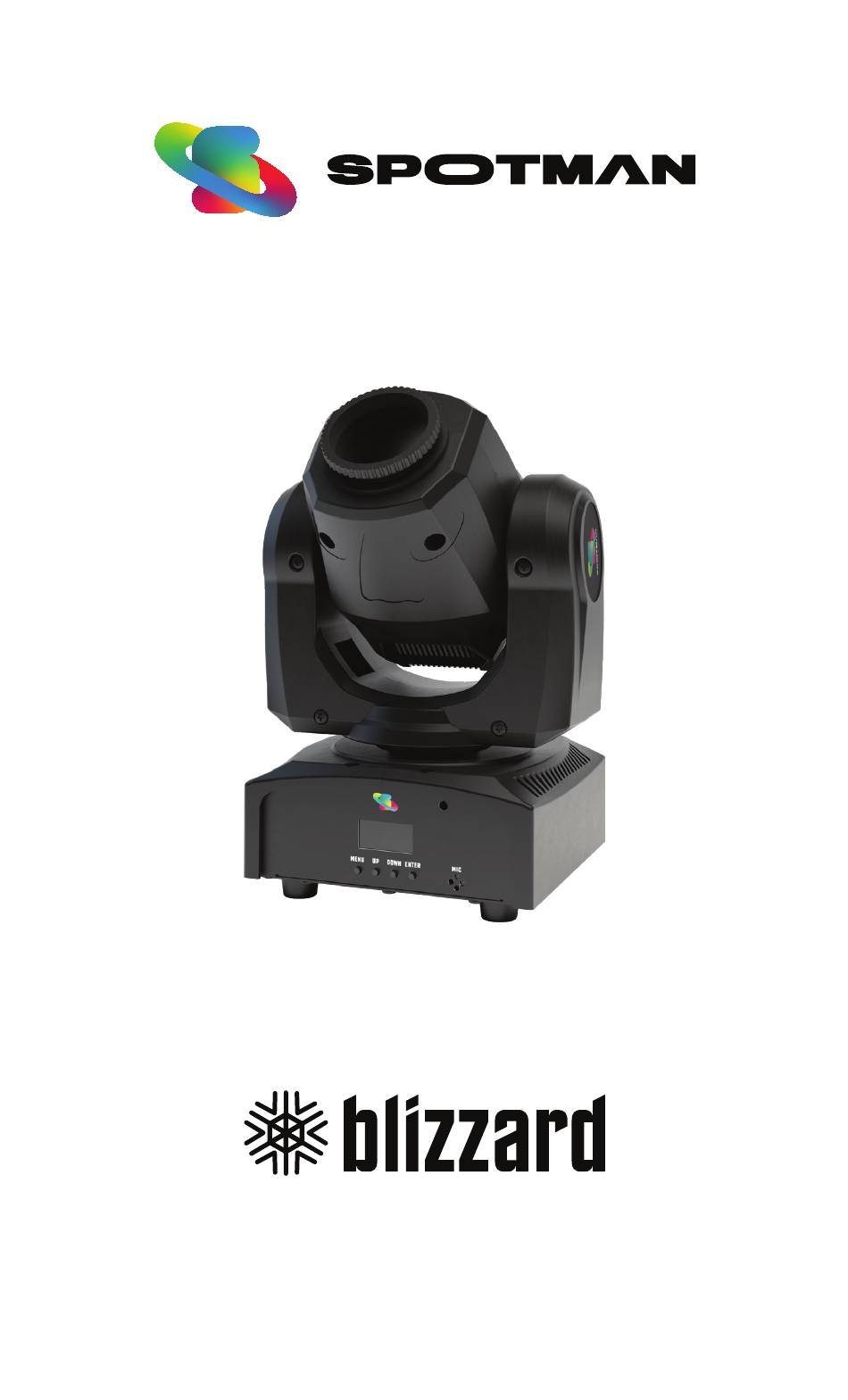

  • Page 1 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2020...
  • Page 2: Table Of Contents

    Auto, Sound Active, & Manual Adjustments Auto Mode Sound Active Mode Reverse Pan/Tilt Display Settings 5. Appendix Keeping Your SPOTMAN™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs! Dimensional Drawings Page 2 Spotman™ User Manual - Rev. A...
  • Page 3: Getting Started

    Getting It Out Of the Box Congratulations on purchasing SPOTMAN™, a most excellent choice! Now that you’ve got your SPOTMAN™, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection.
  • Page 4: Safety Instructions

    Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 5: Meet Spotman

    Color Wheel Gobo Wheel Strobe (slow <--> fast) Dimmer (0% <--> 100%) Pan/Tilt Speed (fast <--> slow) Auto & Sound Active Modes Auto Pan/Tilt Modes + Reset Page 5 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...

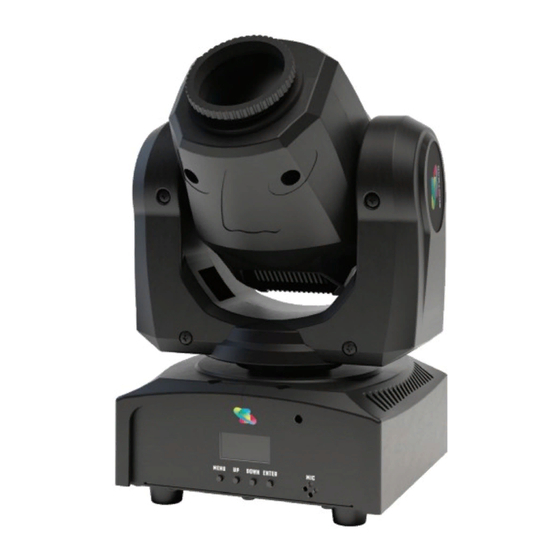

  • Page 6: Spotman™ Pin-Up Picture

    SPOTMAN™ Pin-Up Picture Manual Focus 30W White LED Head Arms 4-button Status LED control menu and Mic The Rear Connections Fuse Power Cooling Input Output Holder Input Vent Page 6 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 7: Setup

    Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 8: Cable Connectors

    Place a DMX Next terminator on the output of the final fixture to Fixture ensure best communication. in Chain DMX IN DMX OUT Page 8 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (M/S Mode)

    If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Page 9 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 10: Operating Adjustments

    4. OPERATING ADJUSTMENTS The Control Panel All the features and different modes possible with SPOTMAN™ are accessed by using the control panel on the rear of the fixture. There are 4 control buttons under to the LED display which allow you to navigate through the various con- trol panel menus.
  • Page 11: Control Panel Menu Structure

    Pan reverse rTiL Tilt normal Tilt reverse rESt Reset Colors and Gobos Open 7. Red 1. Orange 6. Blue 2. Cyan 5. Green 3. Magenta 4. Yellow Page 11 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 12: Dmx Mode

    Off (turns off after 5s of inactivity), then press <ENTER>. 2.) Navigate the menu to dISP, press <ENTER>, and select Yes (normal) or No (rotate the display 180°). Press <ENTER> to confirm. Page 12 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 13 Pan auto mode (only pan) 101 <--> 200 Tilt auto mode (only tilt) 201 <--> 249 Pan + Tilt auto mode (pan and tilt) 250 <--> 255 Reset after 5 seconds Page 13 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 14: Appendix

    5. APPENDIX Keeping Your SPOTMAN™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, you’ll need to take care of it if you want it to operate as designed.
  • Page 15: Tech Specs

    Other Operating Modes DMX512, M/S, Auto, Sound Active 2-year limited warranty, does not cover malfunction Warranty caused by damage to LEDs. Dimensional Drawings 5.8" (147 mm) 7.1" (180 mm) Page 15 Spotman™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
  • Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
