- Page 1 SUITABLE FOR OUTDOOR USE Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2020...
-
Page 2: Table Of Contents
Auto Mode Manual Mode Dimming Modes DMX Values In-Depth 5. Appendix Keeping Your Motif™ Metro As Good As New Returns (Gasp!) Shipping Issues Tech Specs! Dimensional Drawings Page 2 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardpro.com. -
Page 4: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 5: Meet The Motif™ Metro
Red Intensity (0% <--> 100%) Green Intensity (0% <--> 100%) Blue Intensity (0% <--> 100%) White Intensity (0% <--> 100%) Static Colors Auto Mode Auto Speed (slow <--> fast) Page 5 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 6: Motif™ Metro Pin-Up Picture

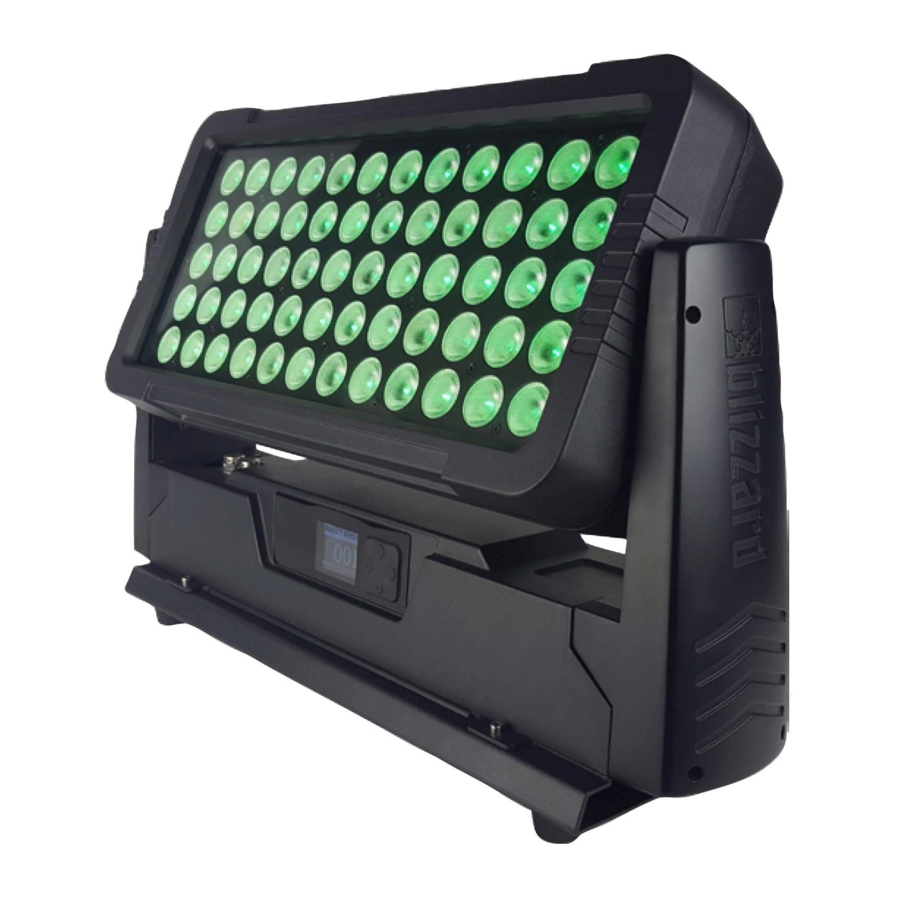

60* 10W 4-in-1 RGBW LEDs 180° Tilt Head Cast 4-button LCD Aluminum Control Panel Menu + ABS Enclosure The Rear Connections Power In DMX In DMX Out Power Out Page 6 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 7: Setup
The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should the fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of Motif™ Metro Fixtures... -
Page 8: Cable Connectors
Place a DMX Next terminator on the output of the final fixture to Fixture ensure best communication. in Chain DMX IN DMX OUT Page 8 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (M/S Mode)
If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Page 9 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
5. Frequency 2K (2,000 Hz, PWM) 10K (10,000 Hz, PWM) 5. Information 1. Run Time (hrs.) Displays the total running hours 2. Software Ver. Displays the software version Page 11 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
2.) Use the <UP/DOWN> buttons to highlight Dimmer, Strobe, Red, Green, Blue, or White, and press <ENTER>. 3.) Adjust the levels from 0-255, and press the <ENTER> button. Page 12 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 13: Dimming Modes
Auto Mode 000 <-> 100 No Function 101 <-> 150 Flash 151 <-> 200 Fade 201 <-> 255 Pulse Auto Speed 000 <-> 255 Speed (slow <-> fast) Page 13 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 14: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... -
Page 15: Tech Specs
3-pin XLR male/female Other Operating Modes DMX512, M/S, Auto Mode 2-year limited warranty, does not cover malfunction Warranty caused by damage to LEDs. Dimensional Drawings 5" 18.5" 22" 5.8" Page 15 Motif™ Metro User Manual Rev. A © 2020 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
