ROCKLITE RGBAW
Blizzard Lighting, LLC
www.blizzardlighting.com
Brookfield, WI USA
Copyright (c) 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rocklite RGBAW and is the answer not in the manual?

Questions and answers

Summary of Contents for Blizzard Lighting Rocklite RGBAW

  • Page 1 ROCKLITE RGBAW Blizzard Lighting, LLC www.blizzardlighting.com Brookfield, WI USA Copyright (c) 2011...
  • Page 2: Table Of Contents

    Manual Color Adjustment DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your ROCKLITE™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 3: Getting Started

    If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting PO Box 1874, Brookfield, WI 53008 USA support@blizzardlighting.com www.blizzardlighting.com 414-979-5781 Page 3 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 ROCKLITE RGBAW Manual Rev.
  • Page 5: Meet The Rocklite™ Rgbaw Led

    What It Does (5 Ch.) What It Does (4 Ch.) Red Intensity RGB mixing Green Intensity Amber Intensity Blue Intensity White Intensity Amber Intensity Dimmer (0-100%) White Intensity Page 5 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...

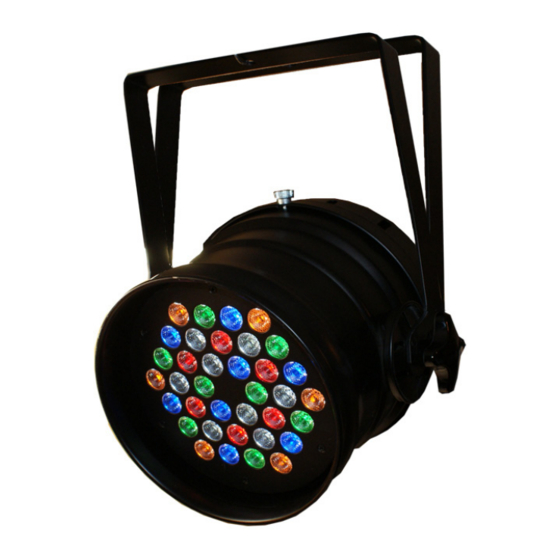

  • Page 6: The Rocklite ™ Pin-Up Picture

    High Power Mounting Yoke & Adjustment/ RGBAW Locking Knobs LEDs Rolled Aluminum Enclosure Figure 2: The Rear Connections LED Control Panel Grounding Screw DMX In DMX Out Page 6 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 7: Setup

    The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your ROCKLITE™ fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of ROCKLITE™ RGBAW Fixtures...
  • Page 8: Cable Connectors

    Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (Master/Slave Mode)

    • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 10: Operating Adjustments

    Press the <SAVE> button to select the menu function currently displayed, or to enable a menu option. To return to the previ- ous option or menu without changing the value, press the <MENU> button. Page 10 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 11: Control Panel Menu Structure

    <ENTER> <UP/DOWN/ENTER> UErn UE2.0 <ENTER> <UP/DOWN/ENTER> rL-- r000- r255 <ENTER> <UP/DOWN/ENTER> GL-- G000- G255 <ENTER> <UP/DOWN/ENTER> bL-- b000- b255 <ENTER> <UP/DOWN/ENTER> AL-- U000- U255 <ENTER> <UP/DOWN/ENTER> UL-- U000- U255 <ENTER> <UP/DOWN/ENTER> Page 11 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 12: Dmx Mode

    (Amber Level), or (White Level), then hit <ENTER>. 2.) Using the <UP/DOWN> buttons, select the maximum level for each color x000-x255 (000=off), then hit <ENTER> to confirm. between Page 12 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 13: Dmx Channel Values In-Depth

    192 <--> 223 Multicolor Jump (Ch. 9 Controls Speed) 224 <--> 255 Sound Active, Multicolor (Ch. 9 Controls Speed) Fade Speed 0 <--> 255 Fade Speed (Slow <--> Fast) Page 13 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 14: Troubleshooting

    Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 14 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 15: Appendix

    It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 15 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 16: Keeping Your Rocklite™ As Good As New

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 16 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 17: Tech Specs

    Standalone, Master/Slave, Sound Active, Other Operating Modes Color Preset Coolness Factor Leventy Billion Percent 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 17 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 18 This page intentionally left blank. Page 18 ROCKLITE RGBAW Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC...
  • Page 19 This page intentionally left blank.
  • Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
