Summary of Contents for Blizzard Lighting ICE 30
-

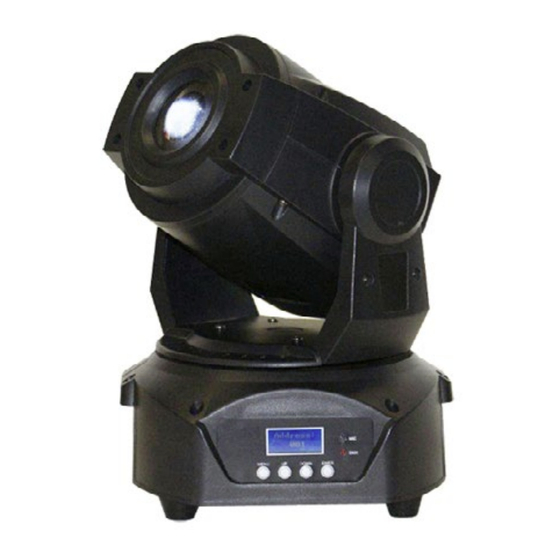

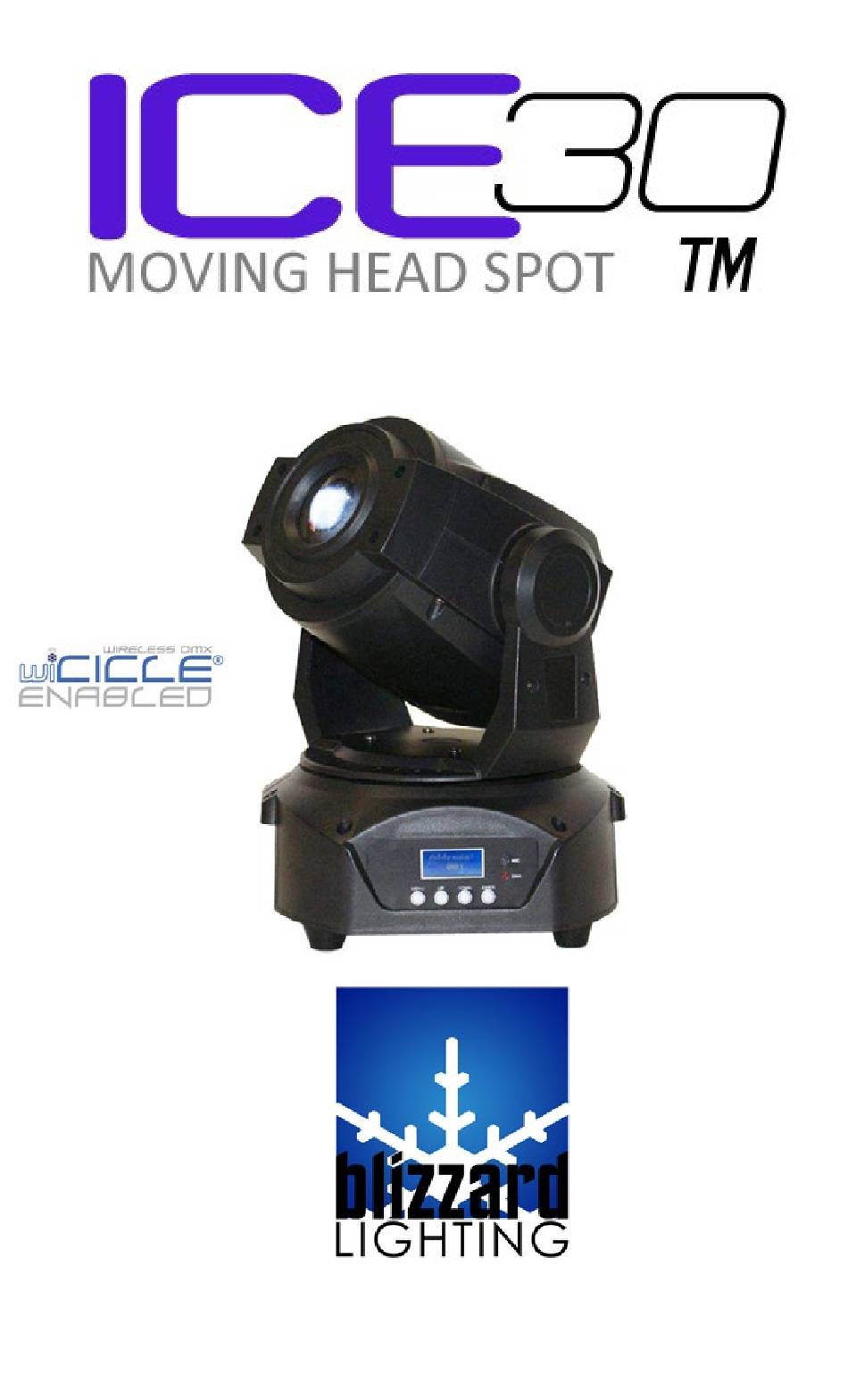

Page 1: Ice 30™ 30W Led Moving Head Spot
Blizzard Lighting, LLC www.blizzardlighting.com Wisconsin, USA Copyright (c) 2012... -
Page 2: Table Of Contents
DMX Mode Gobo Replacement DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your ICE 30 Spot As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 3: Getting Started
If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting W220 N1531 Jericho Ct. Suite E, Waukesha, WI 53186 USA support@blizzardlighting.com | Phone: 866-493-6025 www.blizzardlighting.com Page 3 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 5: Meet The Ice 30™ Spot
2. MEET THE ICE 30™ SPOT CONTROL FEATURES • 10 or 15-channel DMX LED moving yoke • Pan: 540º/360º/180º Tilt: 270º/180º/90º • Color wheel: 7 colors + white • Rainbow color spin at variable speeds • Rotating gobo wheel with gobo shake •... -
Page 6: The Ice 30 Pin-Up Picture
Figure 1: The ICE 30 Pin-Up Picture Head Lens Microphone DMX Indicator Readout Control Panel Figure 2: The Rear Connections Fan Guard AC Power Fuse Cover DMX In DMX Out Page 6 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 7: Setup
Insert the fuse holder back in its place and reconnect power. Connecting A Bunch of ICE 30™eseses You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas- ter/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fix- tures the data link can support. -
Page 8: Cable Connectors
We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixutres overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 10: Using This Fixture With The Wicicle® Wireless Dmx System
® unapproved fixtures may cause damage to the wiCICLE ® fixture. UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPONSIBLE FOR ANY DAMAGE FROM SUCH OPERATION. • Fixtures bearing the above logo MUST only use cable and connec- tors which separate chassis/case ground from cable shielding. Cabling with the shield connected to the connector’s case/chassis may cause... - Page 11 NOTE: The color of the LED DURING operation does not indicate channel group, instead it indicates whether the unit is transmitting or receiving. That’s It! Page 11 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC...
-
Page 12: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the ICE 30™ are accessed by using the con- trol panel on the front of the fixture. There are 4 control buttons below the LCD display which allow you to navigate through the various control panel menus. Menu enter DOWn Access control panel functions using the four panel buttons located directly underneath the LCD Display. -
Page 13: Additional User Adjustments
3) Using a small tool, pry the tension ring from the gobo holder. 4) Remove the old gobo. 5) Insert the new gobo, and replace in the reverse steps of removal. Page 13 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 14: Dmx Channel Values In-Depth
000 <-> 015 Prism Out 016 <-> 239 Prism In, Rotating (Slow <--> Fast) 240 <-> 255 Prism In, Stationary Focus 000 <-> 255 Near <-> Far Page 14 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... - Page 15 000 <-> 015 Prism Out 016 <-> 239 Prism In, Rotating (Slow <--> Fast) 240 <-> 255 Prism In, Stationary Focus 000 <-> 255 Near <-> Far Page 15 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC...
-
Page 16: Troubleshooting
Verify remote is correct type (CA-9 or other as applicable.) Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 16 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 17: Appendix
In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 17 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 18: Keeping Your Ice 30 Spot As Good As New
Keeping Your ICE 30 As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 19: Tech Specs
3-pin XLR Female If I could meet any person it would be... Robbie Van Winkle 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 19 ICE 30 Manual Rev. C Copyright (c) 2012 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
