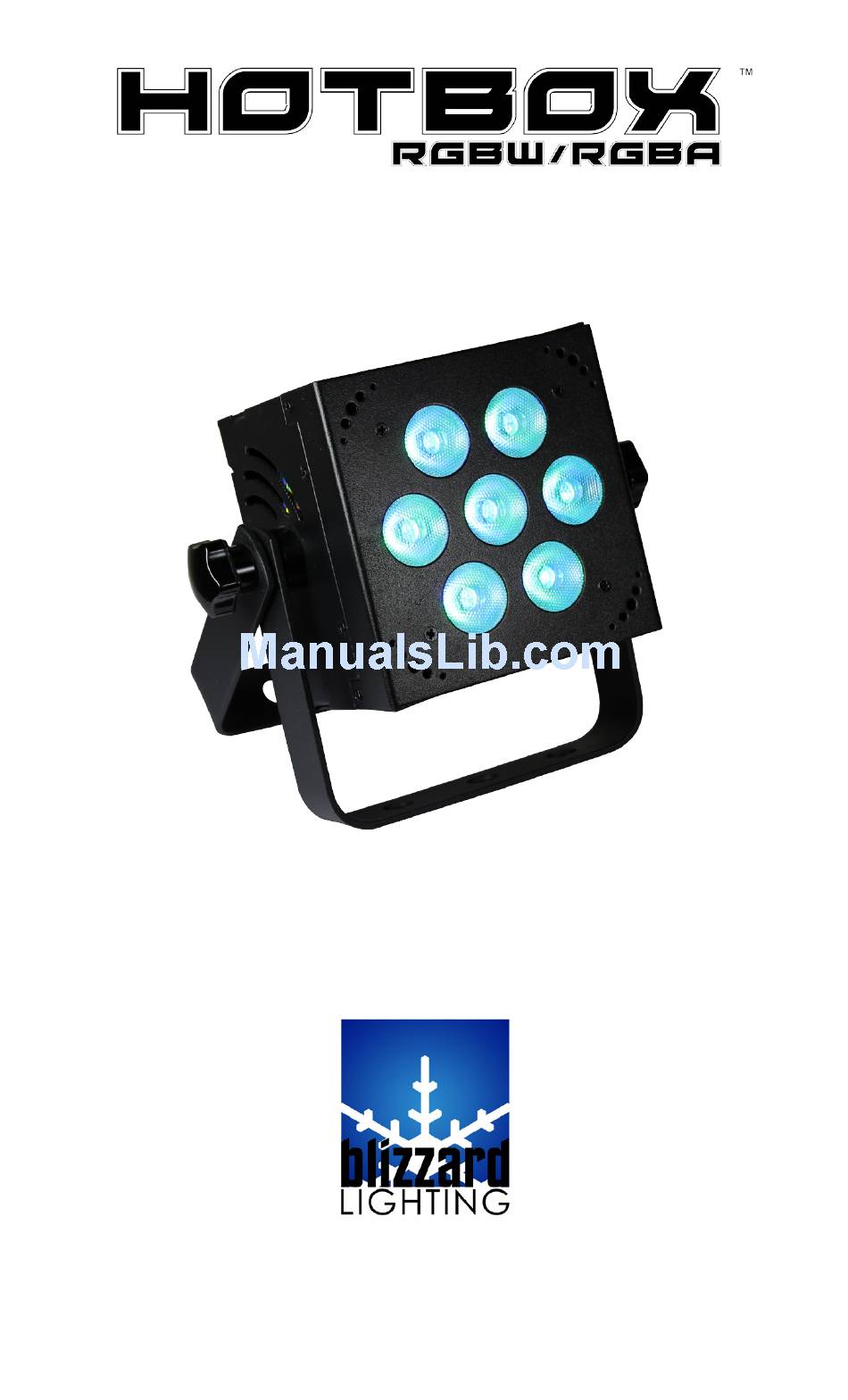

Page 1: Hotbox™ Led
Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013... -
Page 2: Table Of Contents
Standalone (Program) Mode Manual Color Adjustment DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your HotBox™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 HotBox Manual Rev. -
Page 5: Meet The Hotbox™ Led
DMX Quick Reference - 3 (HSV) / 4 / 5 Channel Mode Channel 4 Channel 5 Channel Red Intensity Dimmer Saturation Green Intensity Red Intensity Value Blue Intensity Green Intensity White Intensity Blue Intensity White Intensity Page 5 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 6: The Hotbox™ Pin-Up Picture
Aluminum Enclosure Quad Color LEDs Dual Mounting Yokes & Adjustment/Locking Knobs Figure 2: The Rear Connections DMX Out LED Display DMX In Menu Buttons AC Power Out AC Power In Page 6 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 8: Wicicle Wirelss Dmx System
® unapproved fixtures may cause damage to the wiCICLE ® fixture. UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPONSIBLE FOR ANY DAMAGE FROM SUCH OPERATION. • Fixtures bearing the above logo MUST only use cable and connec- tors which separate chassis/case ground from cable shielding. Cabling with the shield connected to the connector’s case/chassis may cause... - Page 9 NOTE: The color of the LED DURING operation does not indicate channel group, instead it indicates whether the unit is transmitting or receiving. That’s It! Page 9 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC...
-
Page 10: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 10 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 11: Fixture Linking (Master/Slave Mode)
(if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 11 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 12: Operating Adjustments
Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previ- ous option or menu without changing the value, press the <MENU> button. Page 12 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 13: Control Panel Menu Structure
UL -- U.000 - U.255 White dimmer (0% <--> 100%) SouA So.uA Sound active mode on - oFF Display menu on/off nodE nod0-nod4 Dimming mode (0-4) UErn UE2.0 Software version Page 13 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 14: Dmx Mode
(Blue Level) or (White Level), then hit <ENTER>. x000- 2.) Using the <UP/DOWN> buttons, select the maximum level for each color between x255 (000=off), then hit <ENTER> to confirm. Page 14 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 15: Dmx Channel Values In-Depth
192 <--> 223 Color Jump (Ch. 8 Controls Speed) 224 <--> 255 Sound Active, Multicolor (Ch. 8 Controls Speed) Fade Speed 0 <--> 255 Fade Speed (Slow <--> Fast) Page 15 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 16: Troubleshooting
Verify remote is correct type (CA-9 or other as applicable.) Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” mode? On Its Own If your problem persists or isn’t listed contact support@blizzardlighting.com. Page 16 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 17: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 17 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 18: Keeping Your Hotbox™ As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 18 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 19: Tech Specs
Neutrik AG, Neutrik USA and their related entities, howev- er they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG. Page 19 HotBox Manual Rev. A © 2013 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
