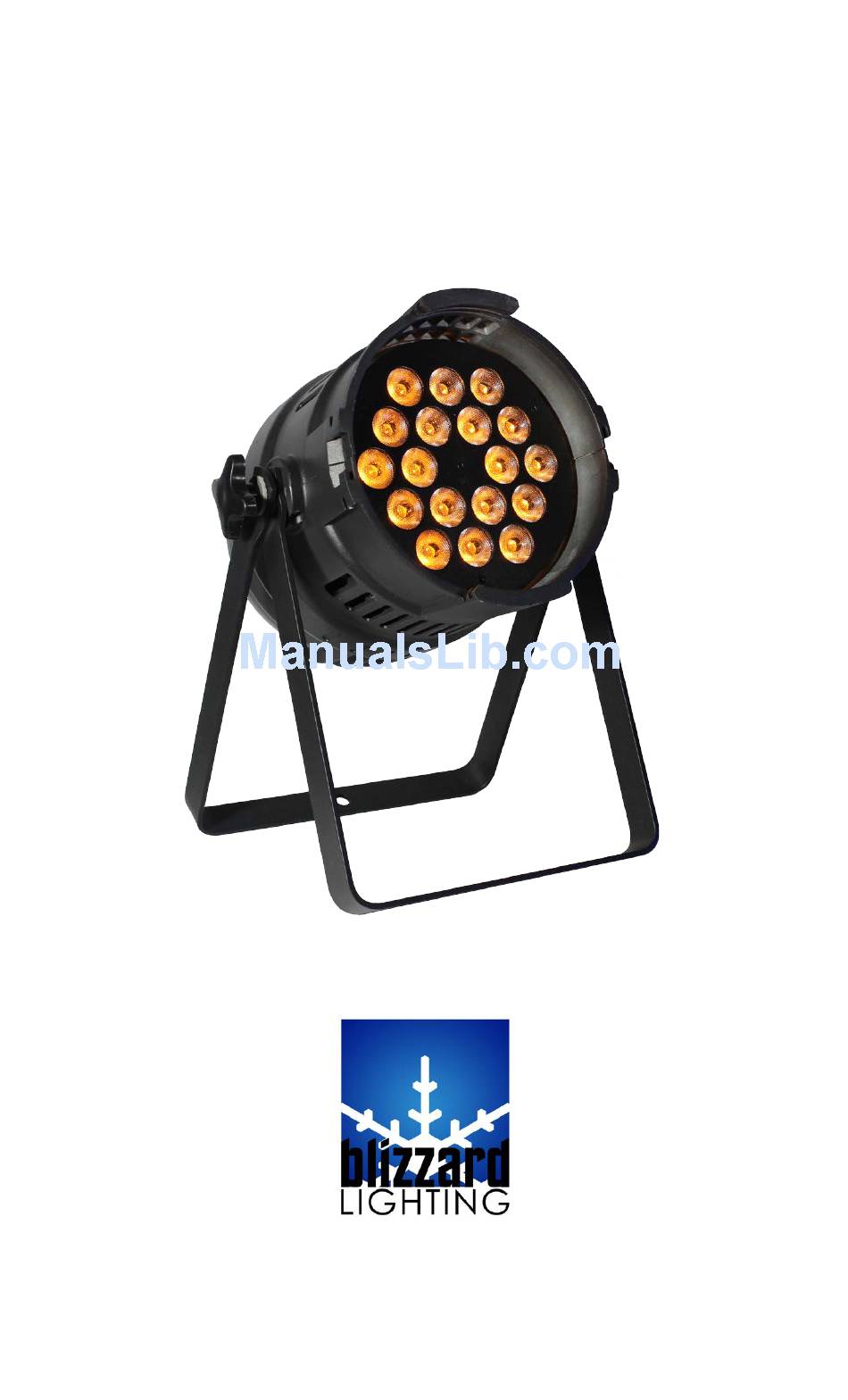

InfInIwhIte
HUSH
PAR
500
tM
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUSH PAR Infiniwhite 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blizzard Lighting HUSH PAR Infiniwhite 500

  • Page 1 InfInIwhIte HUSH Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2014...
  • Page 2: Table Of Contents

    Standalone (Program) Mode Manual Color Adjustment DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your HushPar™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 3: Hushpar™ Infiniwhite 500

    Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time.
  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 HushPar Infiniwhite Manual Rev.
  • Page 5: Meet The Hushpar™ Infiniwhite 500

    DMX Quick Reference - 3-Channel (ACW) / 6-Channel Mode channel 3-Channel - ACW 5-Channel Amber Intensity Dimming Warm White Intensity Amber Intensity Cool White Intensity Warm White Intensity Cool White Intensity Strobe Built-In Programs Page 5 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...

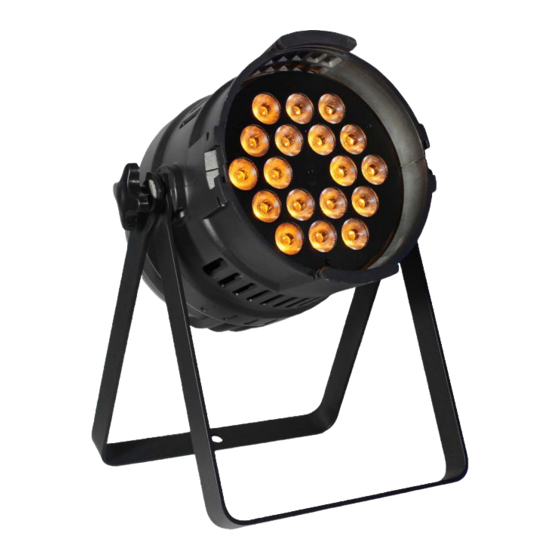

  • Page 6: The Hushpar™ Infiniwhite 500 Pin-Up Picture

    Heavy-duty Die High Power Cast Aluminum 5w 3-in-1 LEDs Enclosure Locking Dual Mounting Knobs Brackets Figure 2: The Rear Connections DMX In DMX Out LED Display Menu Buttons Page 6 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 7: Setup

    Should your HushPar™ Infiniwhite 500 fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of HushPar™ Infiniwhite 500 Fixtures...
  • Page 8: Cable Connectors

    Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (Master/Slave Mode)

    • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 10: Operating Adjustments

    Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previ- ous option or menu without changing the value, press the <MENU> button. Page 10 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 11: Control Panel Menu Structure

    - b.255 Cool White dimmer (0% <--> 100%) SouA So.uA Sound active mode on - oFF Display menu on/off nodE nod0-nod4 Dimming mode (0-4) UErn UE2.0 Software version Page 11 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 12: Standalone (Program) Mode

    (Cool White Level), then hit <ENTER>. White Level), 2.) Using the <UP/DOWN> buttons, select the maximum level for each color between x000-x255 (000=off), then hit <ENTER> to confirm. Page 12 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 13 000 <--> 255 Warm White Intensity (0% <--> 100%) 000 <--> 255 Cool White Intensity (0% <--> 100%) Strobe 000 <--> 014 Dimming 015 <--> 255 Strobe (Slow <--> Fast) Page 13 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 14 ACW Gradual Change (Ch. 5 Controls Speed) 128 <--> 164 Fade In / Fade Out, Auto Run 165 <--> 191 192 <--> 223 Color Jump (Ch. 5 Controls Speed) Sound Active 224 <--> 255 Page 14 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 15: Troubleshooting

    Install a Terminator. Reset fixture(s). Fixture Moving On Verify proper mode of operation. Is the fixture Its Own in “Auto” mode? if your problem persists or isn’t listed contact support@blizzardlighting.com. Page 15 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 16: Appendix

    It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 16 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 17: Returns (Gasp!)

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 17 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 18: Tech Specs

    Standalone, Master/Slave, Sound Active, Color Other Operating Modes Preset Infinity Nature’s way of procrastinating. 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 18 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 19 This page left intentionally blank Page 19 HushPar Infiniwhite Manual Rev. A © 2014 Blizzard Lighting, LLC...
  • Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
