Summary of Contents for Blizzard Lighting SNAKE EYES

  • Page 1: Snake Eyes™ Moving Head

    SNAKE EYES™ Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2016...
  • Page 2: Table Of Contents

    Pan Angle Setting No DMX / Lost Signal Setting DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Snake Eyes™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 Snake Eyes™ Manual Rev. A...
  • Page 3: Getting Started

    Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time.
  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at www. blizzardlighting.com/support. Page 4 Snake Eyes™...
  • Page 5: Meet The Snake Eyes

    2. MEET THE SNAKE EYES™ MOVING HEAD MAIN FEATURES • 6* 60W OSRAM® RGBW 4-in-1 LEDs, 50,000 hours • 12* DMX controllable RGB strips • 630º/540° pan, 360° infinite tilt • Smooth 3-phase motors • Automatic pan/tilt position correction •...
  • Page 6: The Snake Eyes™ Pin-Up Picture

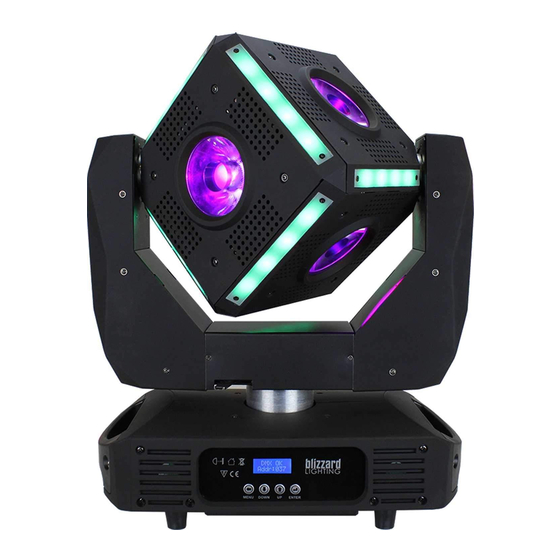

    Figure 1: The Snake Eyes™ Pin-Up Picture Head/Arms 6* 60W OSRAM® RGBW 4-in-1 LEDs 12* DMX Controllable RGB Strips 4-Button LCD Control Panel Carry Handle Figure 2: The Rear Connections Fuse Holder Power Input 5-Pin DMX Out 5-Pin DMX In...
  • Page 7: Setup

    Insert the fuse holder back in its place and reconnect power. Connecting A Bunch of Snake Eyes™ Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas- ter/slave operating mode.
  • Page 8: Cable Connectors

    Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (Master/Slave Mode)

    • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 10: Mounting Points

    Better safe than sorry! Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. Page 10 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 11: Clamp Mounting

    3.) ¼ Turn Quick Lock Fasteners Securing the Fixture Regardless of the rigging option you choose for your fixtures always be sure to secure your fixture with a safety cable. Page 11 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 12: Operating Adjustments

    4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the Snake Eyes™ are accessed by using the control panel on the front of the fixture. There are 4 control buttons below the LCD display which allow you to navi- gate through the various control panel menus.
  • Page 13: Control Panel Menu Structure

    Yes/No (Pan/Tilt Error Correction, On/Off) Reset Reset Motors Default Restore Factory Default Settings Status Info Software Version Current Software Version Operate Time Total Operating Time Temp Working Temperature Page 13 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 14: Dmx Mode

    3.) Use the <UP/DOWN> buttons to choose Sound Control, press <ENTER>. 4.) Use the <UP/DOWN> buttons to choose the microphone sensitivity level ranging from 0% to 99%, press <ENTER>. Page 14 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 15: Manual Test Mode

    4.) Use the <UP/DOWN> buttons to choose either Hold (holds the current status), Blackout (no light output), Sound (run sound mode), or Auto (run auto programs), then press <ENTER> to confirm, or <MENU> to exit. Page 15 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 16: Dmx Channel Values In-Depth

    Strobe, 1Hz-25Hz (slow <--> fast) 096 <--> 169 Strobe (fast <--> slow) 170 <--> 175 Strobe (slow <--> fast) 176 <--> 255 Random Strobe (slow <--> fast) 000 <--> 255 Dimmer Page 16 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 17: Speed

    Counterclockwise (fast <--> slow) 141 <--> 145 Stop 146 <--> 255 Clockwise (slow <--> fast) Speed 000 <--> 225 Speed (fast <--> slow) 226 <--> 255 Maximum speed Page 17 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 18: Red 1 Intensity

    Multicolor Fading (fast <--> slow) LED Strip Speed (slow <--> fast) 000 <--> 255 Reset 000 <--> 030 No Function 031 <--> 049 Reset 050 <--> 255 No Function Page 18 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 19: Troubleshooting

    Responding / Use Only DMX Cables and/or check cables for defects Responding Er- Install a Terminator. ratically Reset fixture(s). If your problem persists or isn’t listed, visit www. blizzardlighting.com/support. Page 19 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 20: Appendix

    It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 20 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 21: Keeping Your Snake Eyes™ As Good As New

    Keeping Your Snake Eyes™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.
  • Page 22: Tech Specs

    3/5-pin XLR Female Standalone, Master/Slave, Sound Active, Color Other Operating Modes Preset Other Information Enjoy your Snake Eyes. You won’t be diceappointed! 2-year limited warranty, does not cover malfunc- Warranty tion caused by damage to LEDs. DISCLAIMER: The power connector fitted to the fixture and fixture cord are designed for compatibility...
  • Page 23: Dimensional Drawings

    Dimensional Drawings 16 in. (407 mm) 12.2 in. (309.1 mm) 4.6 in. (116 mm) 3.9 in. (97 mm) 8.7 in. (221 mm) 15.8 in. (400 mm) Page 23 Snake Eyes™ Manual Rev. A © 2016 Blizzard Lighting, LLC...
  • Page 24 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
