Summary of Contents for Blizzard Lighting ToughStick 5

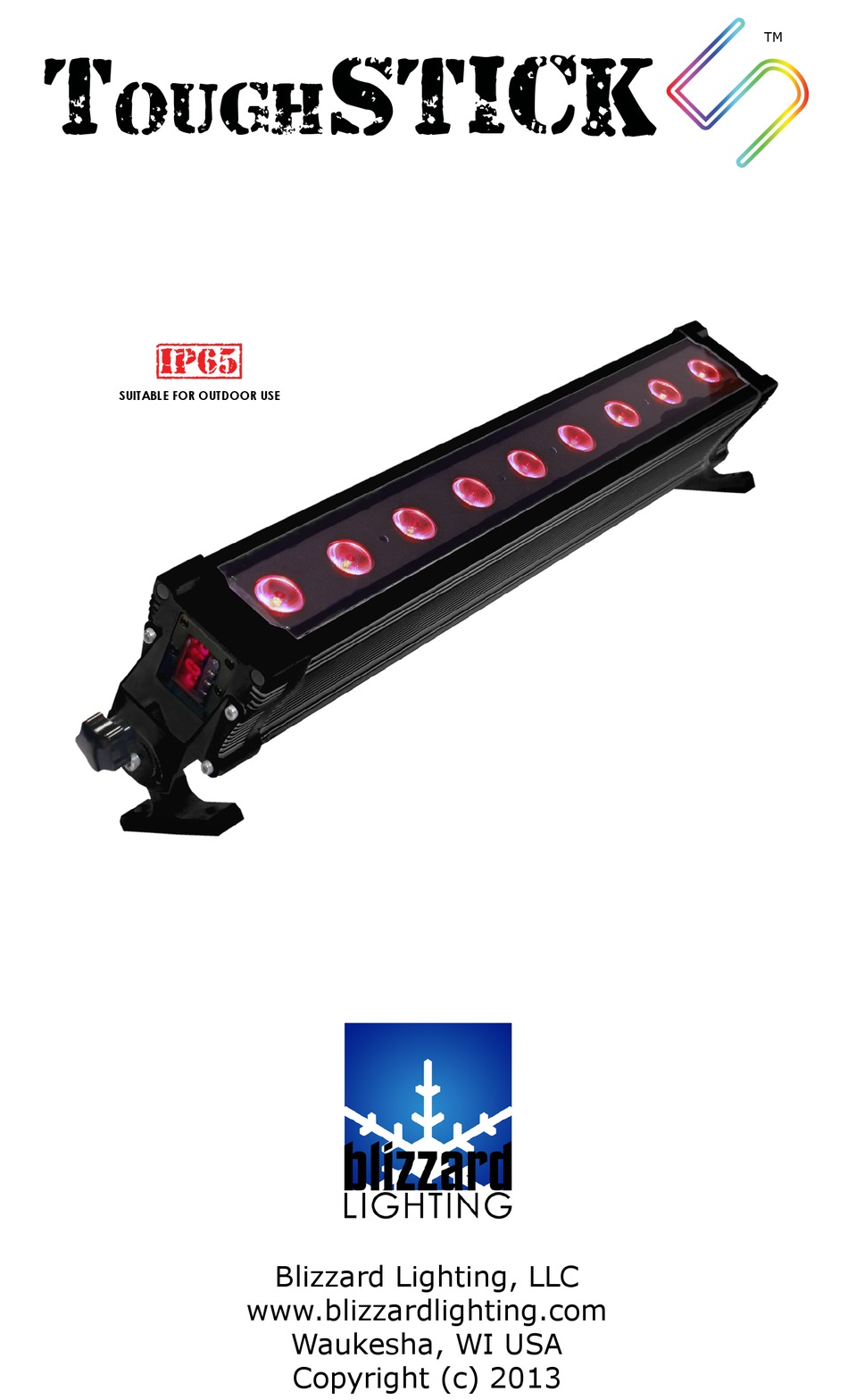

- Page 1 STICK OUGH suitable for outdoor use Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013...
-
Page 2: Table Of Contents
Manual Color Adjustment DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your ToughStick™ 5 As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 5: Toughstick
DMX Quick Reference - 4-Channel (HSV) / 5-Channel Mode Channel 5-Channel RGB Color Mixing Red Intensity Amber Intensity Green Intensity White Intensity Blue Intensity Dimmer Amber/UV Intensity White Intensity Page 5 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -

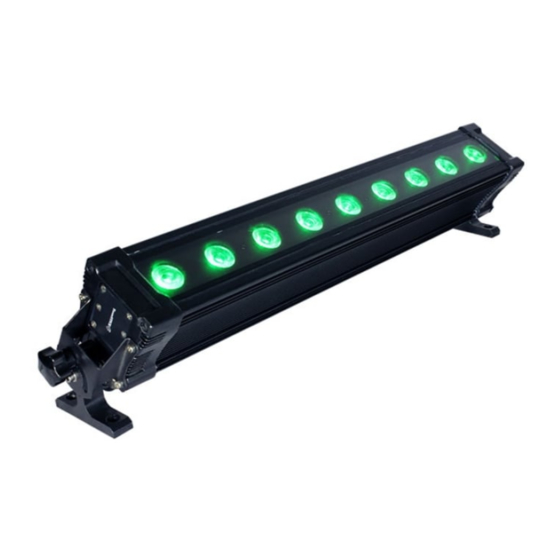

Page 6: The Toughstick™ 5 Pin-Up Picture
LED Control Panel IP65-Rated Weatherproof Power & DMX Connections Mounting Brackets with Adjustment & Locking Knobs Figure 2: The Rear Connections Extended, waterproof AC power and 3-pin DMX connections. AC Power In AC Power Out 3-Pin 3-Pin DMX512 In DMX512 Out Page 6 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 7: Setup
Under normal operating condi- tions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your ToughStick™ 5 fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of ToughStick™ 5 Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas- ter/slave operating mode. The combined number of channels required... -
Page 8: Cable Connectors
We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixutres overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previ- ous option or menu without changing the value, press the <MENU> button. Page 10 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
U.000 - U.255 White dimmer (0% <--> 100%) SouA So.uA Sound active mode on - oFF Display menu on/off nodE nod0-nod4 Dimming mode (0-4) UErn UE2.0 Software version Page 11 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
(Blue Level), (Amber/UV Level), or (White Level), then hit <ENTER>. 2.) Using the <UP/DOWN> buttons, select the maximum level for each color between x000-x255 (000=off), then hit <ENTER> to confirm. Page 12 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 13: Dmx Channel Values In-Depth
Fade In / Fade Out, Auto Run 192 <--> 223 Multi-Color Jump (Ch. 9 Controls Speed) 224 <--> 255 No Function Fade Speed 0 <--> 255 Fade Speed (Slow <--> Fast) Page 13 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 14: Troubleshooting
Use Only DMX Cables and/or check cables for defects Install a Terminator. Reset fixture(s). Fixture Moving On Its Verify proper mode of operation. Is the fixture in “Auto” mode? If your problem persists or isn’t listed contact support@blizzardlighting.com. Page 14 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 15: Appendix
In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 15 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 16: Keeping Your Toughstick™ 5 As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 16 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 17: Tech Specs
Standalone, Master/Slave, Sound Active, Color Modes Preset Other Information Right now I’m having amnesia and deja vu at the same time. 2-year limited warranty, does not cover malfunc- Warranty tion caused by damage to LED’s. Page 17 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC... - Page 18 This page intentionally left blank. Page 18 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC...
- Page 19 This page intentionally left blank. Page 19 ToughStick™ 5 User Manual Rev. A © 2013 Blizzard Lighting, LLC...
- Page 20 --the team @ blizzard lighting...
